• Model NO.：CLW5086GVP
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：350HP
• Wheel Base：2050mm+4400mm+1400mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：11380*2550*3250mm
• Max Lifting Weight：25tons; 30tons; 40tons
• Max Towing Weight：20tons; 30tons; 40tons
• Hydraulic System：Famous International Brand
• Winch Rope：45m, 45meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：25T, 25ton, 25tons, 20t, 20tons, 20ton, 80tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

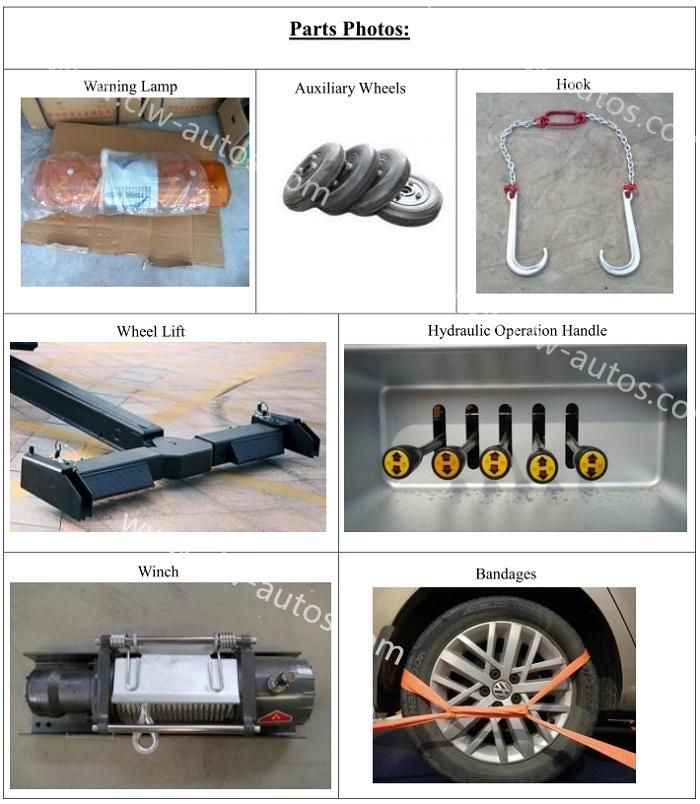

General Technical SpecificationOverall Dimension11380*2550*3250(mm)Gross Vehicle Weight31000 (Kg)Curb Weight21900 (Kg)Chassis SpecificationChassis BrandDongfengDrive model8*4CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower257KW/350HPEmission standardEURO2 or 3Displacement11120(ml)Fuel typeDieselGearbox12 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemAir BrakeWheel Base2050+4400+1400(mm)Front/Rear Axle Loading15000/20000(Kg)Approach/Departure Angle24/12(°)Tire11.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationWinchQuantity1Rating towing capacity50000(kg)Length of steel rope45(m)Speed of winch3.23~8 (m/min)Lifting OrganRating Lifting Capacity30000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

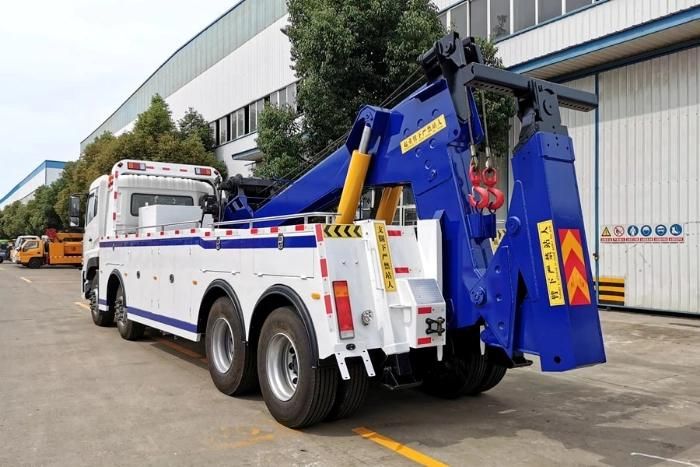

Reference Photos



Certificates


Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
