• Model NO.：CLW5076BGV
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：156HP
• Wheel Base：4400mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：8350*2350*2480mm
• Max Lifting Weight：5tons; 6tons; 7tons
• Max Towing Weight：5tons; 6tons; 7tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5t, 5tons, 5ton, 5T, 10tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension8350*2350*2480(mm)Gross Vehicle Weight9400 (Kg)Curb Weight5600 (Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower115KW/156HPEmission standardEURO2 or 3Displacement3856(ml)Fuel typeDieselGearbox6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base4400(mm)Front/Rear Axle Loading4500/5500(Kg)Approach/Departure Angle24/12(°)Tire8.25R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension6200*2350(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity5000(kg)WinchQuantity1Winch rating towing capacity5000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

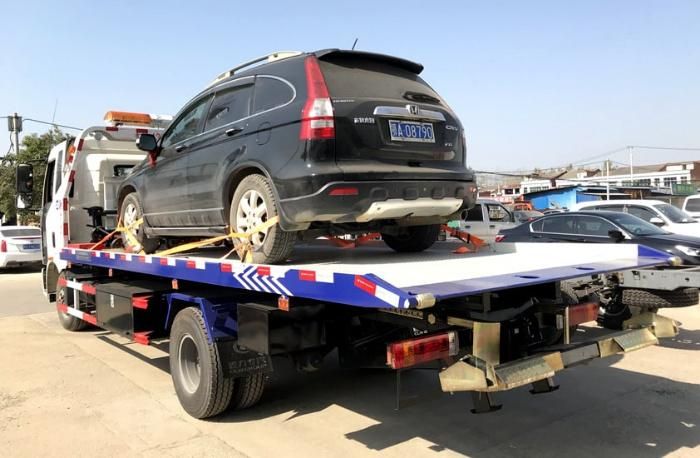

Reference Photos


Main Structure Diagram
