• Model NO.：CLW5086GVP
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：180HP
• Wheel Base：5600mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：8500*2500*2800mm
• Max Lifting Weight：10tons; 11tons; 12tons
• Max Towing Weight：15tons; 16tons; 17tons
• Hydraulic System：Famous International Brand
• Winch Rope：35m, 35meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：16T, 16ton, 16tons, 10t, 10tons, 10ton, 25tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

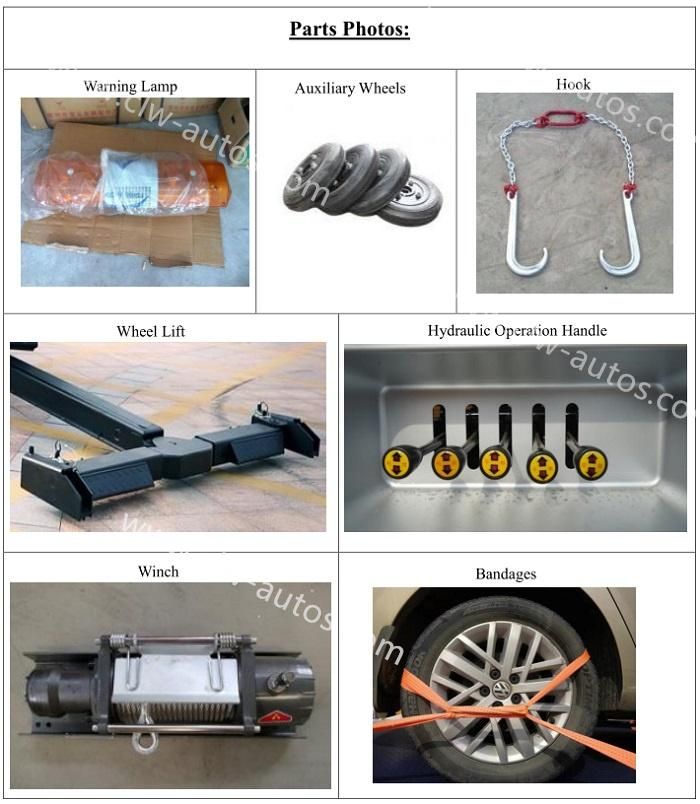

General Technical SpecificationOverall Dimension8500x2500x2800(mm)Gross Vehicle Weight15995 (Kg)Curb Weight11820(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower132KW/180HPEmission standardEURO3Displacement5900(ml)Fuel typeDieselGearbox6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemAir BrakeWheel Base5600(mm)Front/Rear Axle Loading5000/9000(Kg)Approach/Departure Angle24/12(°)Tire9.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationWinchQuantity1Rating towing capacity16000(kg)Length of steel rope35(m)Speed of winch3.23~8 (m/min)Lifting OrganRating Lifting Capacity10000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

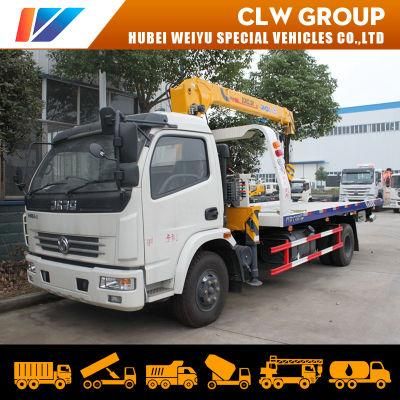

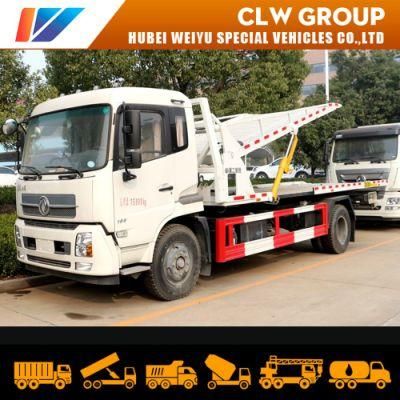

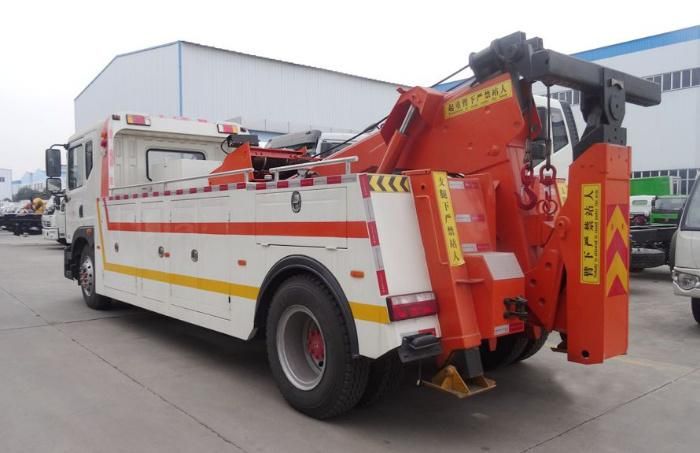

Reference Photos
