• Model NO.：CLW5076BGY
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：190HP
• Wheel Base：4700mm
• Wrecker Type：One-Towing-Two, One-Towing-Three
• Truck Overall Size：9200*2480*3500mm
• Max Lifting Weight：4tons; 5tons; 6tons
• Max Towing Weight：4tons; 5tons; 6tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6T, 6ton, 6tons, 5t, 5tons, 5ton, 12tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension9200x2480x3500(mm)Gross Vehicle Weight159000 (Kg)Curb Weight9995 (Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower140KW/190HPEmission standardEURO2 or 3Displacement5900(ml)Fuel typeDieselGearbox8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemAir breakWheel Base4700(mm)Front/Rear Axle Loading5000/9000(Kg)Approach/Departure Angle24/12(°)Tire10.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension6000*2400(mm)MaterialQ235 carbon steelMax Loading capacity6000(kg)WinchQuantity1Winch rating towing capacity6000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)CraneMax lifting capacity8000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

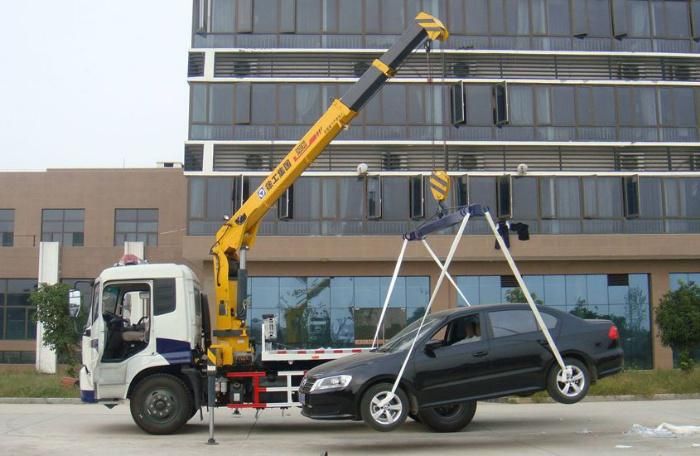

Reference Photos


Main Structure Diagram




Certificates


Our Overseas Exhibition
