• Model NO.：CLW5076BGT
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：170HP
• Wheel Base：5200mm
• Wrecker Type：One-Towing-Two, One-Towing-Three
• Truck Overall Size：9500*2480*2760mm
• Max Lifting Weight：7tons; 5tons; 6tons
• Max Towing Weight：7tons; 5tons; 6tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6T, 6ton, 6tons, 6t, 12tons, 12T, 12t, 12ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension9500*2480*2760(mm)Gross Vehicle Weight15795 (Kg)Curb Weight8950 (Kg)Chassis SpecificationChassis BrandDongfeng D9Drive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower125KW/170HPEmission standardEURO2 or 3Displacement4730(ml)Fuel typeDieselGearbox6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemAir breakWheel Base5200(mm)Front/Rear Axle Loading5000/8000(Kg)Approach/Departure Angle24/12(°)Tire9.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension7300*4600(mm)MaterialQ235 carbon steelMax Loading capacity6000(kg)WinchQuantity1Winch rating towing capacity6000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

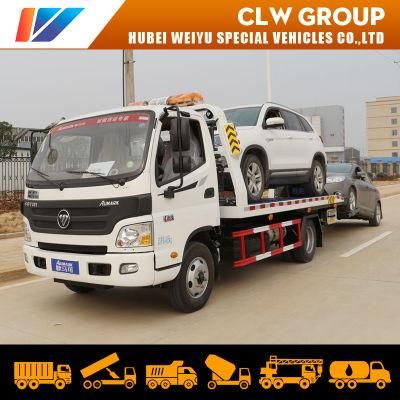

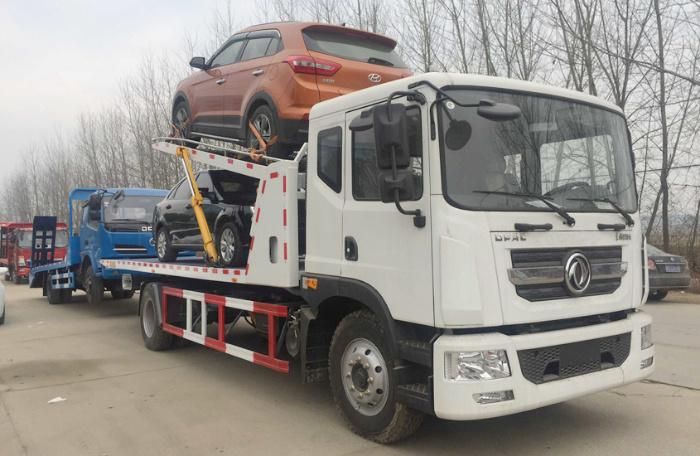

Reference Photos


Main Structure Diagram




Certificates


Our Overseas Exhibition
