• Model NO.：CLW5076BGV
• Brand：Foton
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：154HP
• Wheel Base：3815mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：7390*2350*2400mm
• Max Lifting Weight：4tons; 5tons; 6tons
• Max Towing Weight：4tons; 5tons; 6tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：4t, 4tons, 4ton, 4T, 5t, 5tons, 5ton, 5T, 8tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension7390*2350*2400(mm)Gross Vehicle Weight8280 (Kg)Curb Weight5330 (Kg)Chassis SpecificationChassis BrandFotonDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower113KW/154HPEmission standardEURO 2 or 3Displacement3760(ml)Fuel typeDieselGearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemOil BrakeWheel Base3815(mm)Front/Rear Axle Loading3000/4800(Kg)Approach/Departure Angle24/12(°)Tire7.50R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension5600*2350(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity4000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

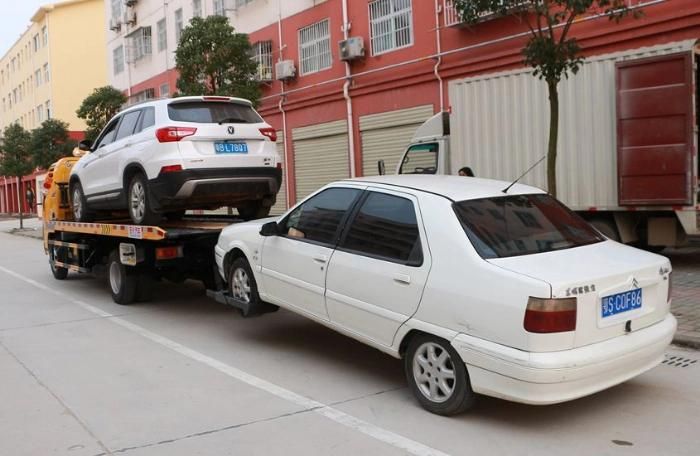

Reference Photos


Main Structure Diagram




Certificates


Our Overseas Exhibition
