Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard:Euro 3
  • Transmission Type:Manual
  • Towing Tonnage:6t
  • Fuel:Diesel
  • Bearing Capacity:Medium

Base Info

  • Model NO.:CLW5076BGV
  • Brand:Dongfeng
  • Condition:New
  • Chassis Brand:Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
  • Steering:LHD, Rhd, Left Hand Drive, Right Hand Drive
  • Cabin:2~3 Personn with A,C
  • Engine:170HP
  • Wheel Base:5200mm
  • Wrecker Type:One-Towing-One, One-Towing-Two
  • Truck Overall Size:9500*2480*2760mm
  • Max Lifting Weight:5tons; 6tons; 7tons
  • Max Towing Weight:5tons; 6tons; 7tons
  • Hydraulic System:Famous International Brand
  • Winch Rope:25m, 25meters
  • Warranty:1 Year
  • Transport Package:Naked, Waxed, Bulk Ship, RO-RO
  • Specification:6T, 6ton, 6tons, 5t, 5tons, 5ton, 12tons
  • Trademark:CLW
  • Origin:Suizhou, China
  • HS Code:8705909090
  • Production Capacity:500 Unit,Month

Description

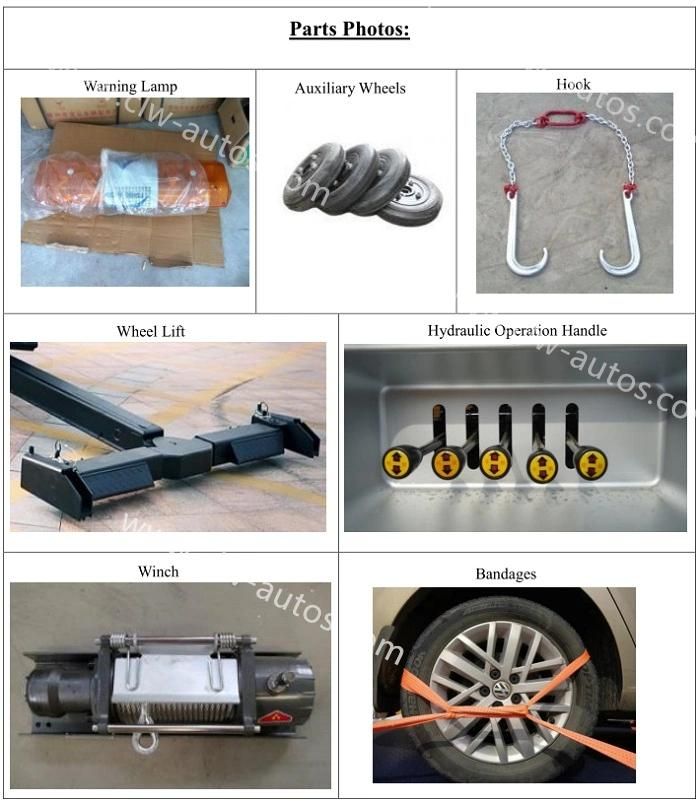

General Technical SpecificationOverall Dimension9500*2480*2760(mm)Gross Vehicle Weight15795 (Kg)Curb Weight8950 (Kg)Chassis SpecificationChassis BrandDongfeng D9Drive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower125KW/170HPEmission standardEURO2 or 3Displacement4730(ml)Fuel typeDieselGearbox8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base5200(mm)Front/Rear Axle Loading5000/8000(Kg)Approach/Departure Angle24/12(°)Tire10.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension7400*2320(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity6000(kg)WinchQuantity1Winch rating towing capacity6000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

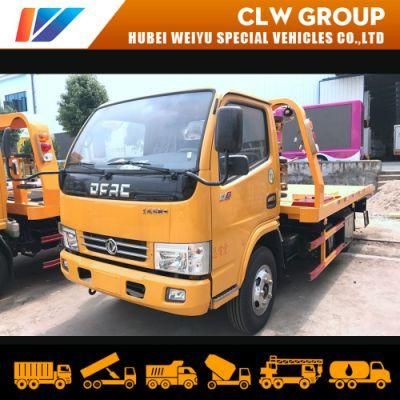

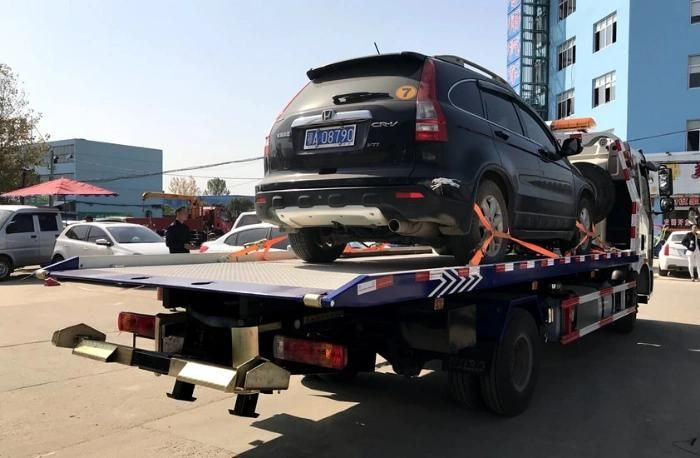

Reference Photos
Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck

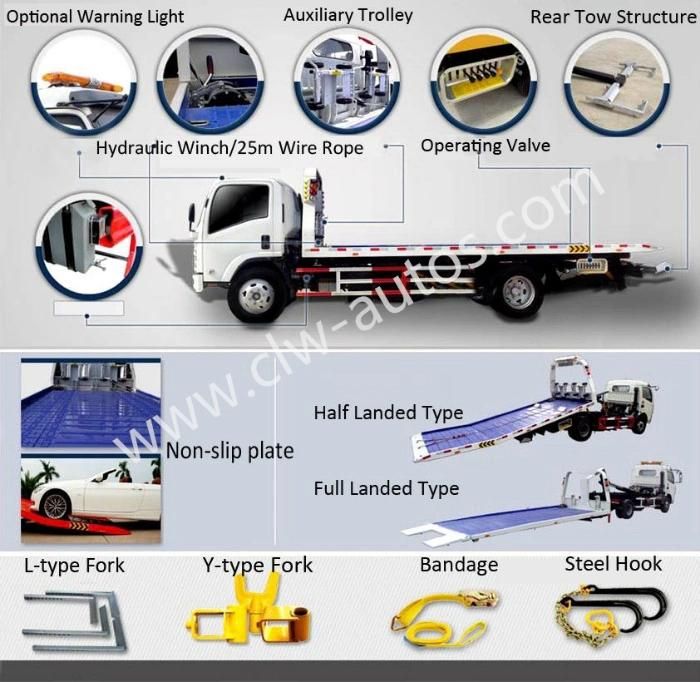

Main Structure Diagram
Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck

Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck
Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck

Certificates
Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck


Our Overseas Exhibition
Dongfeng D9 Rollback Slide Flatbed with 7.4m Long Platform Wrecker Recovery Tow Truck


Contact Flora for more details:  +86-13971508969 (Mobile)
