• Model NO.：CLW5086GVN
• Brand：SINOTRUK
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：338HP
• Wheel Base：5825mm+1350mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：10475*2500*3800mm
• Max Lifting Weight：20tons; 30tons; 40tons
• Max Towing Weight：20tons; 30tons; 40tons
• Hydraulic System：45m, 45meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：25T, 25ton, 25tons, 20t, 20tons, 20ton, 50tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

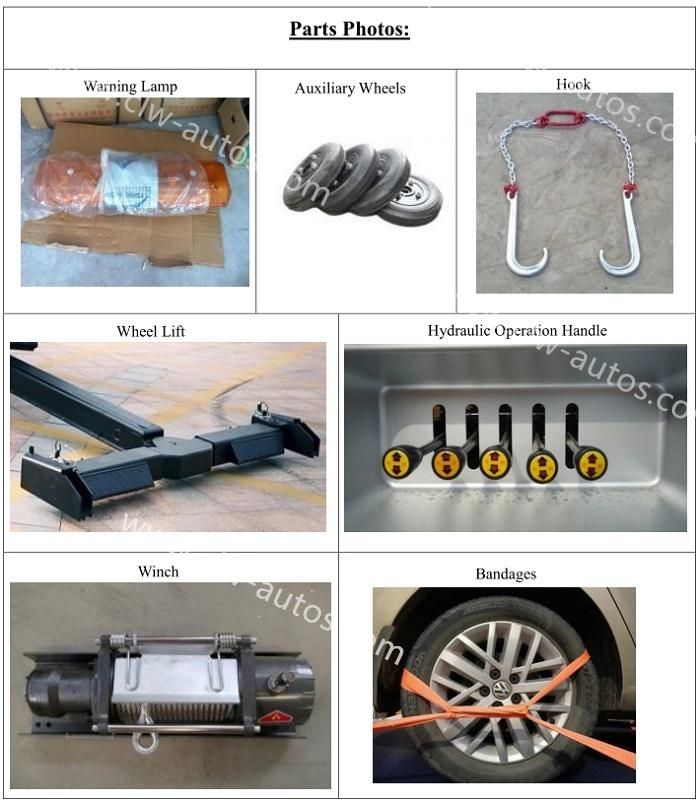

General Technical SpecificationOverall Dimension10475*2500*3800(mm)Gross Vehicle Weight25000 (Kg)Curb Weight21000 (Kg)Chassis SpecificationChassis BrandSinotruk HowoDrive model6*4CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower249KW/338HPEmission standardEURO2 or 3Displacement9726(ml)Fuel typeDieselGearbox10 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemAir BrakeWheel Base5825+1350(mm)Front/Rear Axle Loading10000/15000(Kg)Approach/Departure Angle24/12(°)Tire12.00R20, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationWinchQuantity1Rating towing capacity20000(kg)Length of steel rope45(m)Speed of winch3.23~8 (m/min)Lifting OrganRating Lifting Capacity20000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

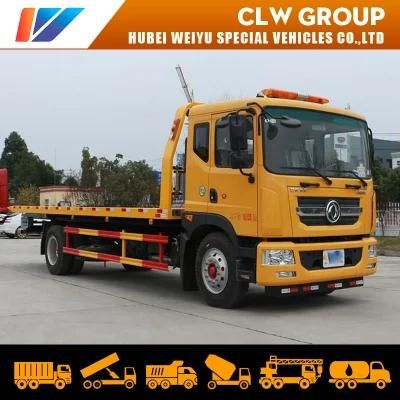

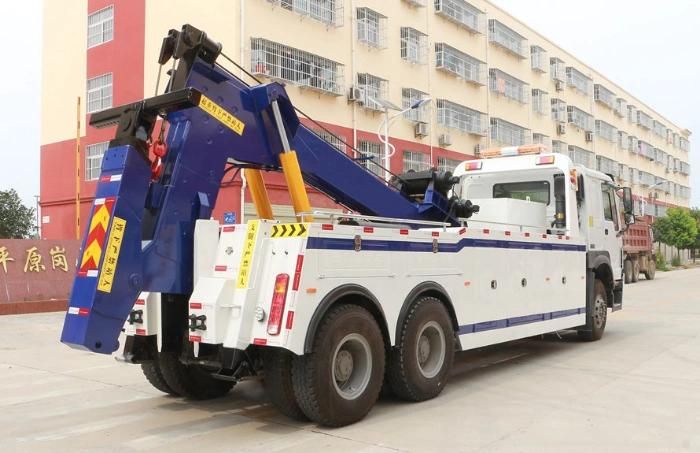

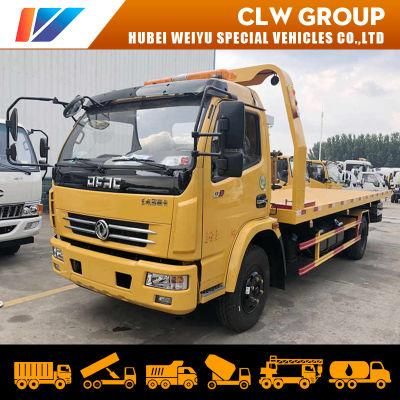

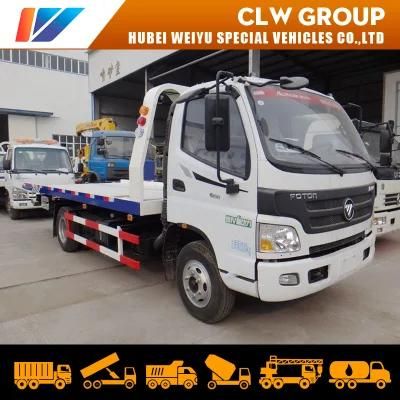

Reference Photos




Certificates


Our Overseas Exhibition
