• Model NO.：CLW5076BGV
• Brand：Dongfeng
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：120HP
• Wheel Base：3800mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：7500X2350X2440mm
• Max Lifting Weight：3tons; 4tons; 5tons
• Max Towing Weight：3tons; 4tons; 5tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：4T, 4ton, 4tons, 4t, 5tons, 5ton, 10tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension7500x2350x2440(mm)Gross Vehicle Weight8275 (Kg)Curb Weight5110 (Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower88KW/120HPEmission standardEURO 3Displacement3860(ml)Fuel typeDieselGearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3800(mm)Front/Rear Axle Loading2500/4500(Kg)Approach/Departure Angle24/12(°)Tire8.25R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension5600*2300(mm)Rear manual flip board length800(mm)MaterialQ235 carbon steelMax Loading capacity4000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Hoisting OrganRating Under-Pulling Capacity5000(kg)Rating Under-Hoisting Capacity2000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

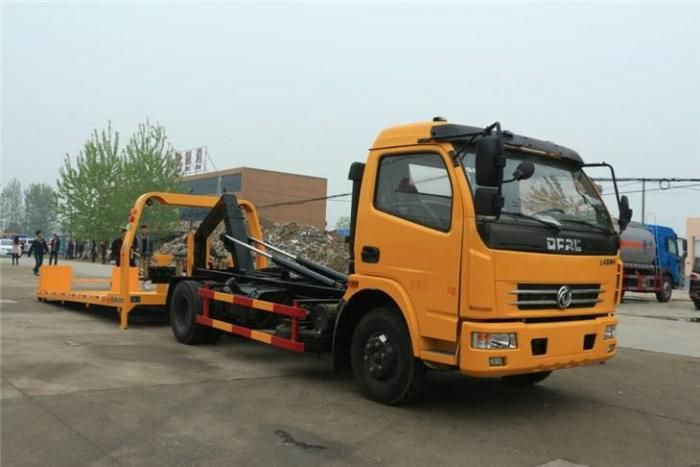

Reference Photos


Main Structure Diagram




Certificates


Our Overseas Exhibition
