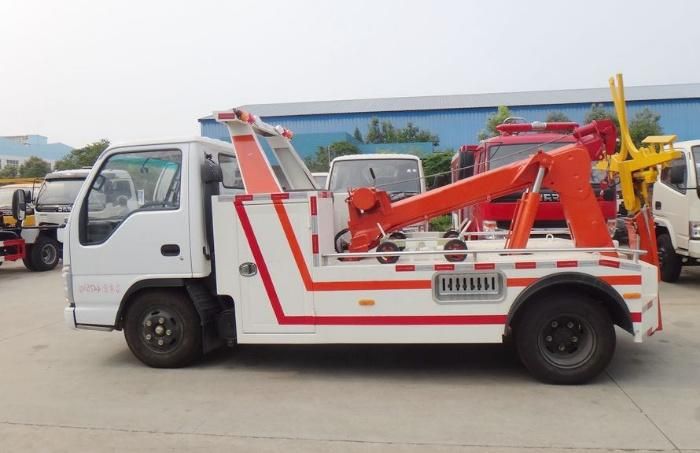

Isuzu 3t-5t Boom Lift Police Road Rescue Truck 3ton-5ton Wheel-Lift Integrated Tow and Crane Wrecker
Hubei Weiyu Special Vehicles Co., Ltd.- Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard:Euro 4
- Transmission Type:Manual
- Towing Tonnage:4t
- Fuel:Diesel
- Bearing Capacity:Light
Base Info
- Model NO.:CLW5086GVA
- Brand:Isuzu
- Condition:New
- Chassis Brand:Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
- Steering:LHD, Rhd, Left Hand Drive, Right Hand Drive
- Cabin:2~3 Personn with A,C
- Engine:100HP
- Wheel Base:3360mm
- Wrecker Type:One-Towing-One, One-Towing-Two
- Truck Overall Size:5415*2030*2500mm
- Max Lifting Weight:3tons; 4tons; 5tons
- Max Towing Weight:3tons; 4tons; 5tons
- Hydraulic System:Famous International Brand
- Winch Rope:25m, 25meters
- Warranty:1 Year
- Transport Package:Naked, Waxed, Bulk Ship, RO-RO
- Specification:3T, 3ton, 3tons, 5t, 5tons, 5ton, 7tons
- Trademark:CLW
- Origin:Suizhou, China
- HS Code:8705909090
- Production Capacity:500 Unit,Month
Description

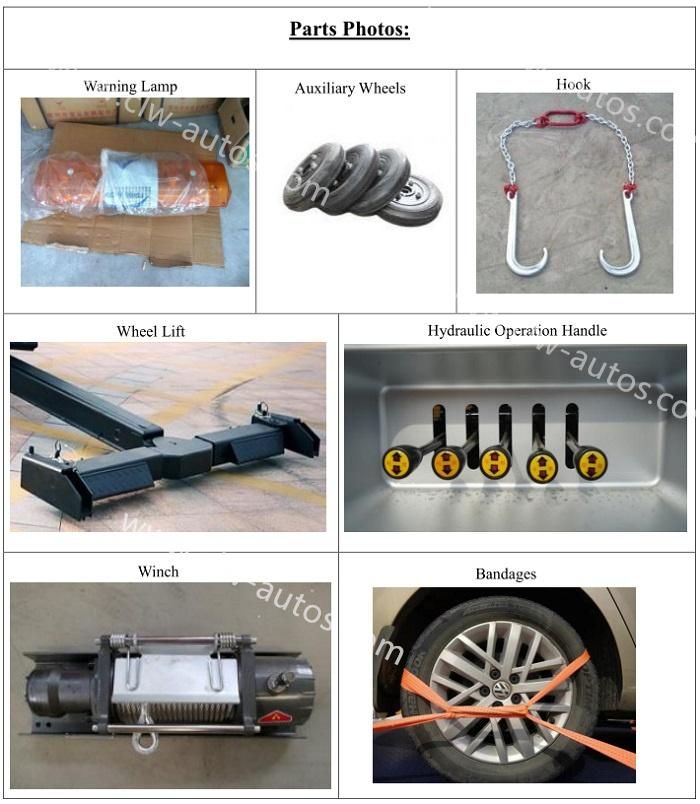

General Technical SpecificationOverall Dimension 5415x2030x2500(mm) Gross Vehicle Weight 4495 (Kg) Curb Weight 4500(Kg) Chassis Specification Chassis Brand Isuzu100P Drive model 4*2 Cabin Single, Left Hand Drive Engine Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling Power 74KW/100HP Emission standard EURO4 Displacement 2999(ml) Fuel type Diesel Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance Brake System Oil Brake Wheel Base 3360(mm) Front/Rear Axle Loading 2000/2500(Kg) Approach/Departure Angle 24/12(°) Tire 7.00R16, 6pcs + 1 spare tire Max Driving Speed 98(km/h) Superstructure Specification Winch Quantity 1 Rating towing capacity 3000(kg) Length of steel rope 25(m) Speed of winch 3.23~8 (m/min) Lifting Organ Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. Options Caution light, air condition,inlet valve.
