• Model NO.：CLW50657BGQ
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P3,P4,P5,P6
• Power Supply Mode：Own Generator-powered
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, etc.
• Drive Model：4X2, 6 Wheels
• Wheelbase：2800mm,3300mm,3360mm,3800mm,4500mm,4700mm,etc.
• LED Board Type：One-Side Screen,Two-Side Screen,Three-Side Screen
• Screen Size：4m2-12m2, as Per Chassis Size
• Pixel Pitch：4mm, 5mm, 6mm; P4 P5 P6
• Picture Tube Chip Color：Full Color and Monochrome
• Control Mode：VGA Synchronous
• Color：White; Blue; Green; Yellow; Customized
• Warranty：1 Year
• Transport Package：with Foam Cover on LED Screen
• Specification：5990*2080*2990(mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5990×2080×2990(mm)Gross Vehicle Weight8000(Kg)Curb Weight2560(Kg)Chassis SpecificationChassis parametersChassis BrandFoton ForlandCabinSingle, Left Hand Driving, Radio + MP3EngineModelFoton Cummins ISF3.8s4R154, 4 CylindersPower115KW/154HPEmission standardEURO IVDisplacement3.76LFuel typeDieselGearboxZF 6S500, 6 Forward & 1 Reverse GearFront and Rear Axle load3T/6TWheel base3360(mm)Overhang( Front/Rear)1095/1420(mm)Angle(Approach/departure)21/17 (°)Brake SystemAir brakeSteering GearPower AssistantTire215/75 R17.5, 6 Pieces with 1 Spare TireMaximum speed95(km/h)SuperstructureLED Screen
 PixelOutdoor full colour display screen
P6Single module size192*192(mm)Quantity1pc, left or right sideDimension(LxW)3840*1728(mm)DescriptionHydraulic lifting, Waterproof, shake-proof, high brightness, long lifeScreen Lift Height1.3-1.5(m)Roller ScreenDimension(LxW)3840*1728(mm)No. of scrolling posters5-7pcsStageSize9.6m2unfold modeHydraulic control


General configuration



 1. OUMA brand silent diesel generator, 8KW2. One set industrial computer with control system3. Sound system: Loudspeaker 2pcs, amplifier 1pc4. Internal and external electrical distribution box.5. Circulating ventilation and cooling systems.6. 5CM composite steel frame body7. Aluminum patterned floorRemarksHydraulic legs 4pcs included

Reference Photos

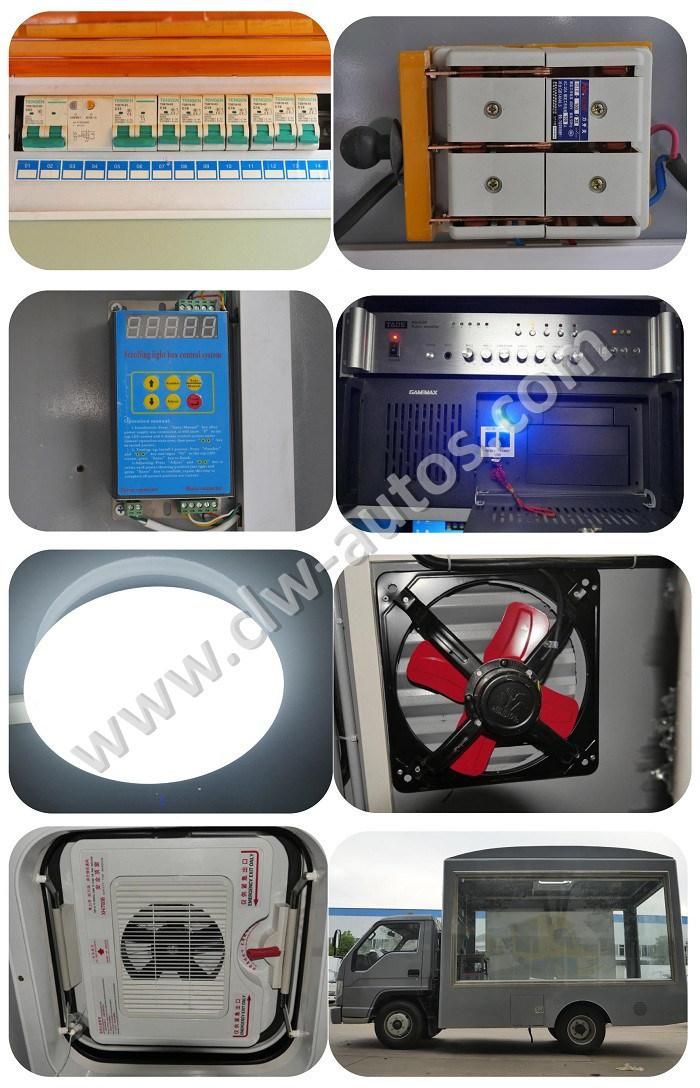

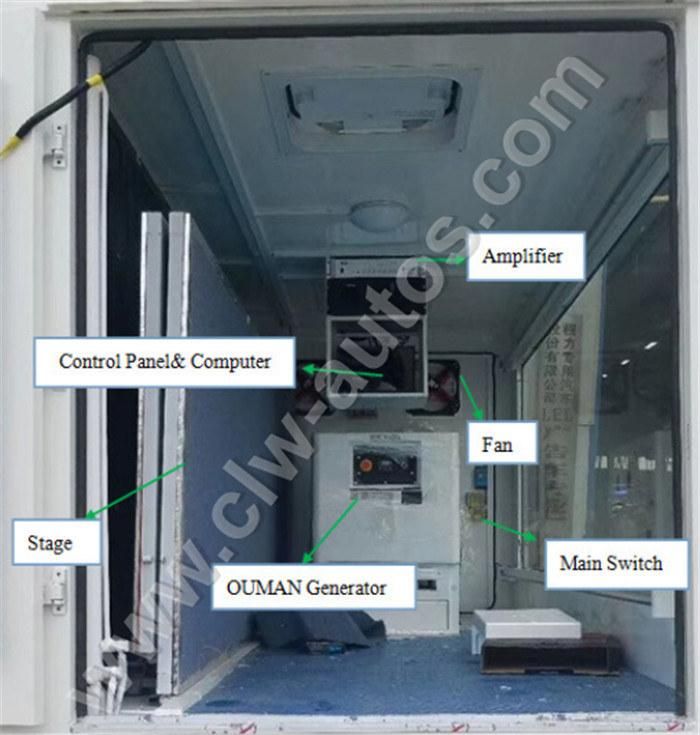

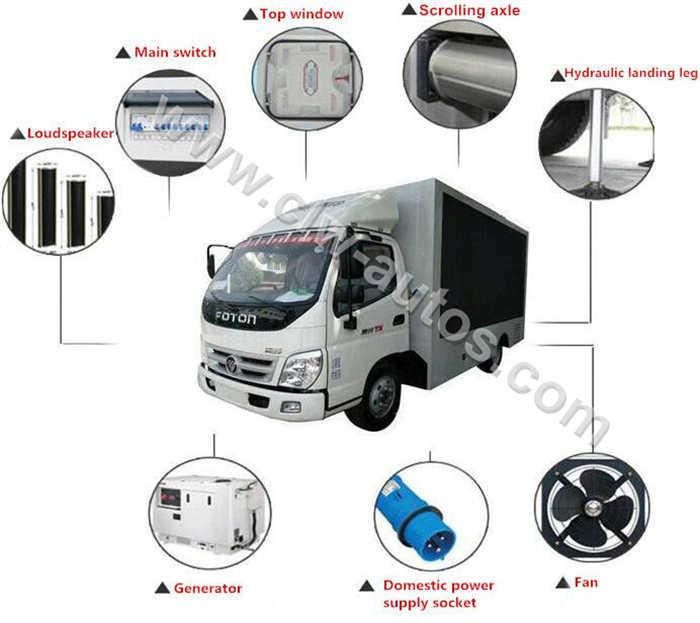

Details of LED truck


Details of Scrolling Advertisement truck

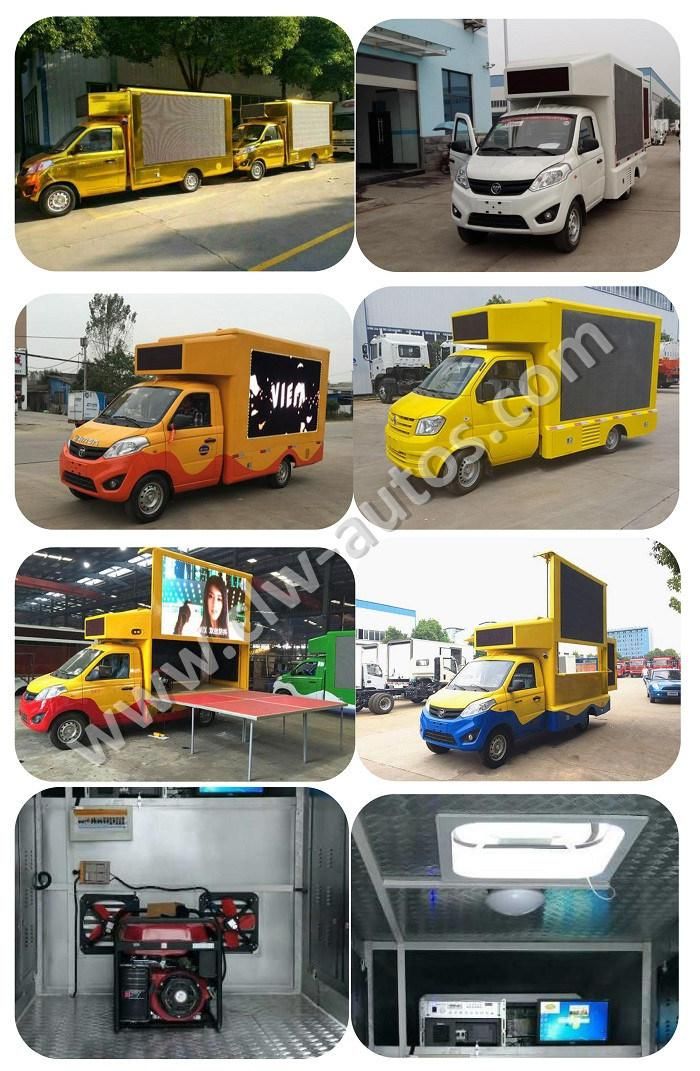

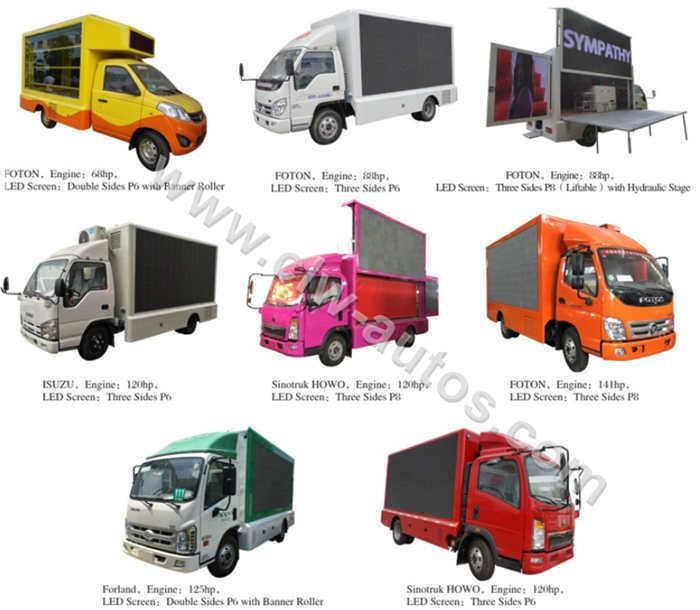

Various kinds of Advertising Trucks


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
