• Model NO.：CLW50657BGP
• LED Tube Core Type：SMD
• Self-powered：Self-powered
• LED Screen Type：P3,P4,P5,P6
• Power Supply Mode：Own Generator-powered
• Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, etc.
• Drive Model：4X2, 6 Wheels
• Wheelbase：2800mm,3300mm,3360mm,3800mm,4500mm,4700mm,etc.
• LED Board Type：One-Side Screen, Two-Sides Screen, Three-Sides SCR
• Screen Size：4m2-12m2, as Per Chassis Size
• Pixel Pitch：4mm, 5mm, 6mm; P4 P5 P6
• Picture Tube Chip Color：Full Color and Monochrome
• Control Mode：VGA Synchronous
• Color：White; Blue; Green; Yellow; Customized
• Warranty：1 Year
• Transport Package：with Foam Cover on LED Screen
• Specification：5995*2040*2990 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Chassis SpecificationItem No.ParametersDrive model4x2, 6 WheelsOverall Dimension5995×2040×2990(mm)Chassis BrandISUZU 100PCabinSingle, Left Hand Driving, with ABSEngineModel4JB1CN, 4 CylindersPower72KW/98HPEmission standardEUROIVDisplacement2771(ml)Fuel typeDieselGearbox5 Forward & 1 Reverse GearBrake SystemPneumaticSteering GearPower AssistantWheel Base3360(mm)Front/Rear Axle Loading2000/4800(Kg)Approach/Departure Angle24/16(°)Tire7.00-16Max Driving Speed100(km/h)Upper StructureLED ScreenRight LED Screen3840mm(L)×1728mm(H)=6.63m2 P6 full-color ScreenLeft LED Screen3840mm(L)×1728mm(H)=6.63m2 P6 full-color ScreenRear LED Screen1280mm(L)×1440mm(H)=1.84m2 P6 full-color ScreenP6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long lifeMulti-media system1. 1 unit computer
2. Sound system including 4 units waterproof loudspeaker 1 unit power amplifiersGenerator Set

1. OUMA brand, Silent diesel generator

2. 220V domestic power supply

Security systemOverheat protectionRemarks

1. Circulating ventilation and cooling systems

2. Aluminum patterned floor

3. Internal and external electrical distribution box

Optional Items1. Mobile stage2. Scrolling light box

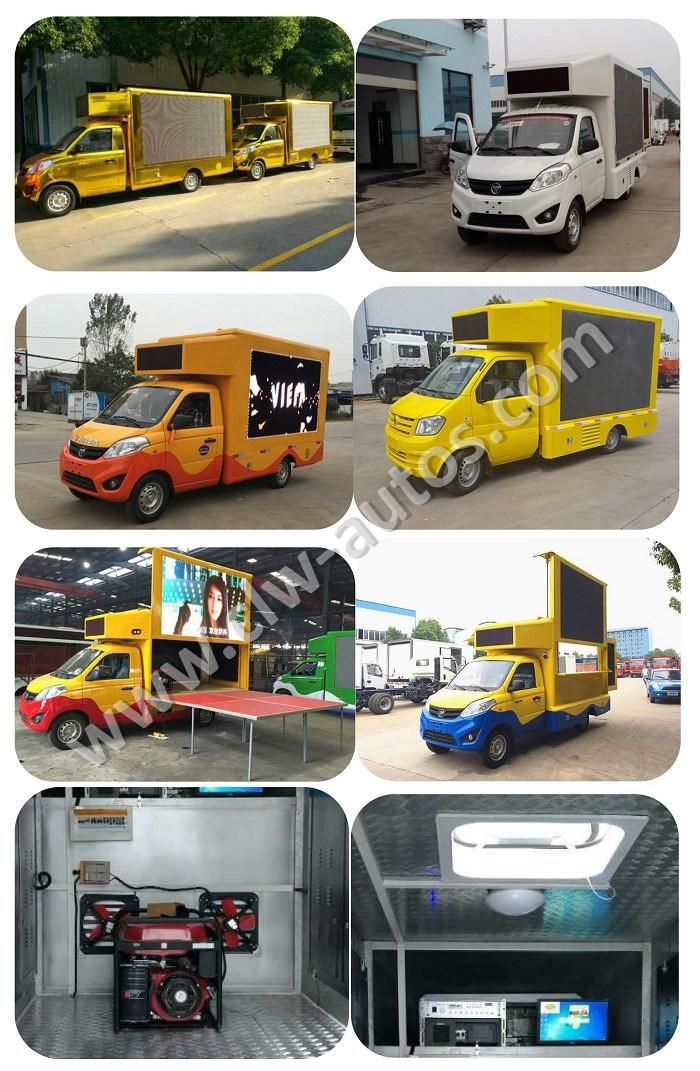

Reference Photos

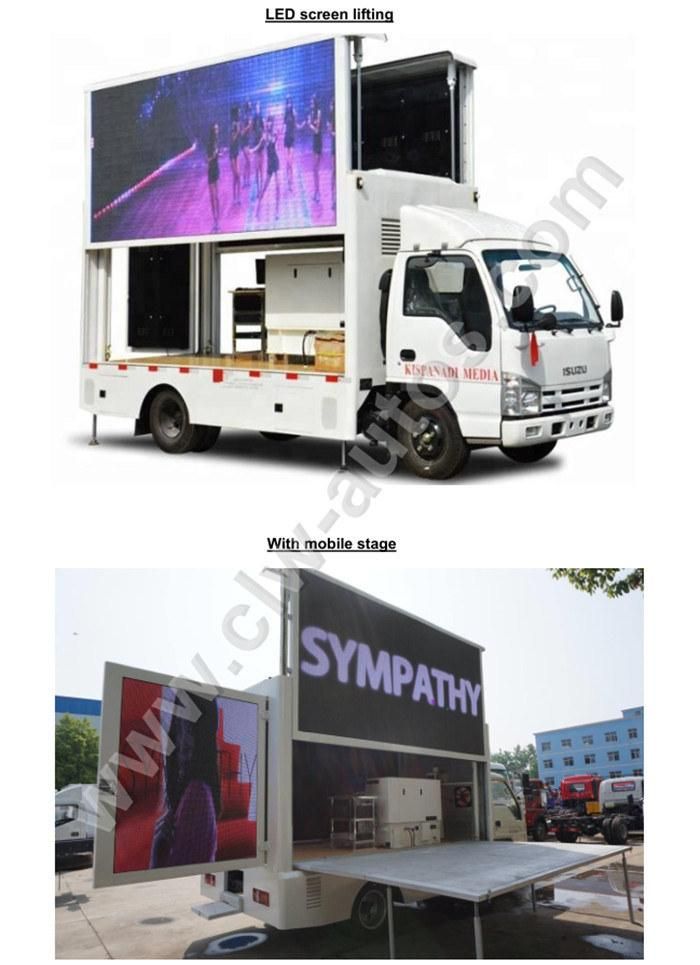

Optional Function

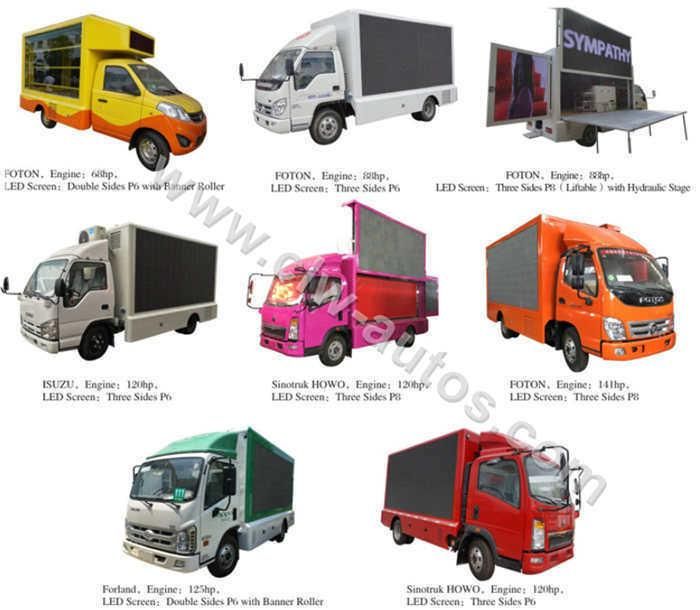

Various kinds of Advertising Trucks


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
