• Model NO.：CLW5087GYK
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：4350+1350 mm
• Engine Power：245HP
• Tank Capacity：18cbm 18m318cubic Meter 18000liters 18t 20t
• Tank Material：6mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：16cbm, 18cbm, 20cbm, 16ton 18ton 20ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Vehicle DescriptionOverall dimensions 9800*2500*3700mmGVW 25000kgCurb Weight12800kgChassis brandDONGFENG  Traction type6*4Tanker DescriptionTankerCapacity18000LMaterial6mm thickness, high quality carbon steelStructureWelding, vacuum tank, CylindricalPumpTypeDouble vacuum pumpFlux68(L/S)Rating speed800~1000(r/min)Shaft power5(kw)FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiencyManufactureHangzhou WEILONG Pump Co., Ltd.PipeSuction and discharge pipeSpecial functionSuction time ≤ 5mins,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45Standard configurationEquipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.Optional configurationTanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tankChassis DescriptionChassis modelDongfeng TianlongCabSleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.  Traction typeLHDDrive type6x4Wheelbase4350+1300mmTire specification11.00R20Tire quantity10+1 unitsEngineEngine modelC260 33Emission levelEuro 2Displacement/output8300ml/191kwHorse power260hpGear boxModel9JS119T-BNumber of gears9 forward gears& 1 reverse, synchronizedBrake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brakeAxleFront7T- Elliot type, I beam sectionRear10T*2-Single reduction, ratio 5.143SuspensionFront8/8- Leaf spring with shock absorberRear9/9-Leaf springFuel tankerTypeSteel fuel tank, with lockable capCapacity350L

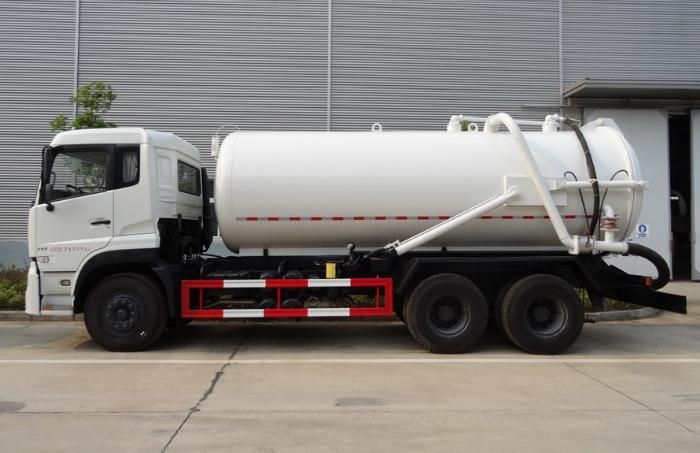

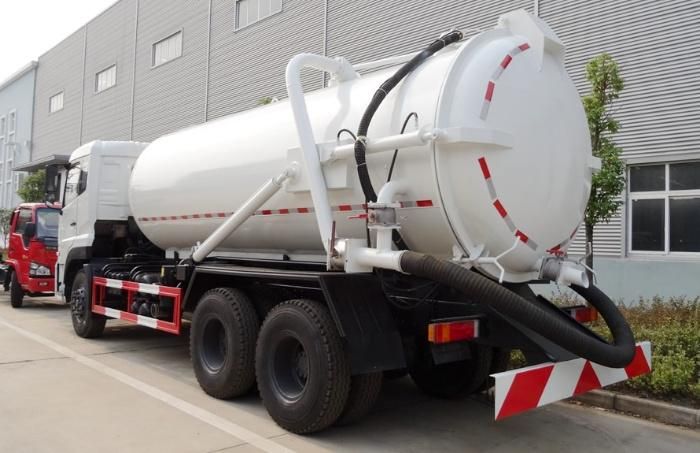

Reference Photos

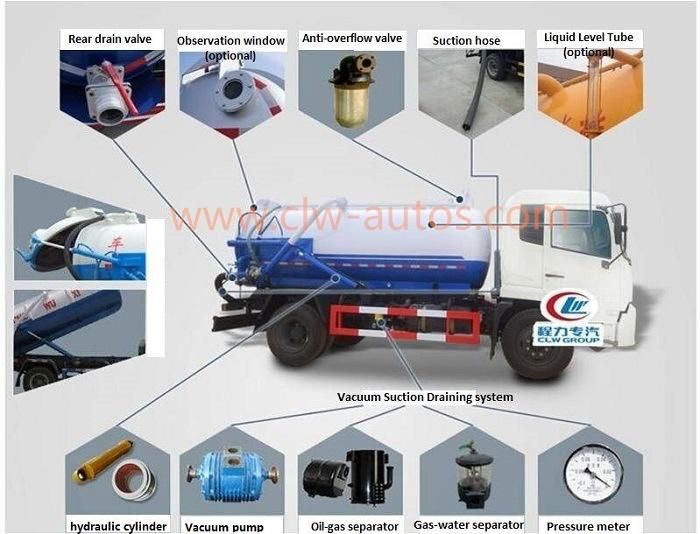

Main Structure

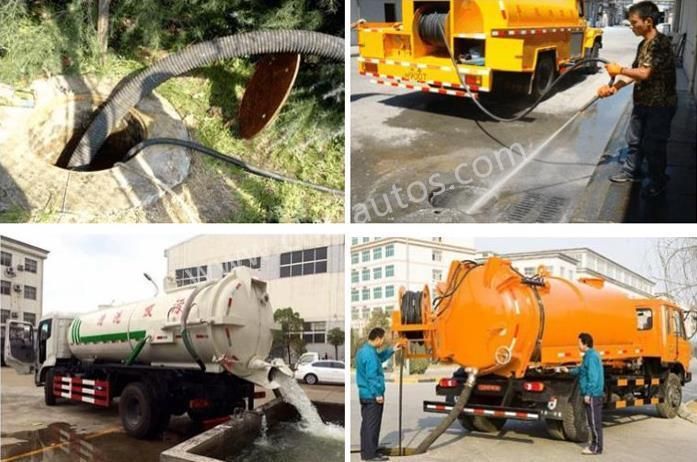

Working Scene


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
