• Model NO.：CLW5087GYK
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：4700mm
• Engine Power：180HP
• Water Tank Capacity：4cbm 4m3 4cubic Meter 4000liters 4t 5t
• Sewage Tank Capacity：5cbm 5m3 5cubic Meter 5000liters 5t 6t
• Tank Material：5mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction Range：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：2cbm, 3cbm, 4cbm, 2ton 3ton 4ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

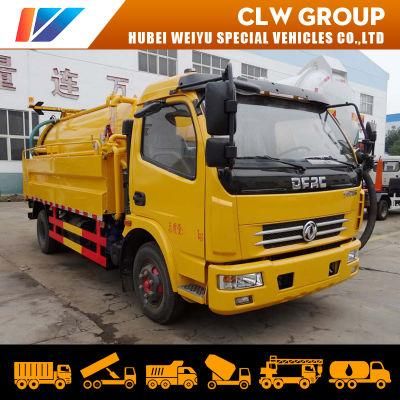

Dongfeng high pressure washing and cleaning sewage suction tanker truck

Cabin

Single row cab, two doors, rated passengers 2 or 3

Chassis

Brand

Dongfeng

Drive type

4*2

Tire

9.00R20 with 1 spare tire

Tire No.

6+1(spare)

Braking System

Air brake

Transmission

Manual, 6 forward and 1 reverse

Engine

fuel type

diesel

Horse Power(kw/hp)

132kw/180hp

Displacement(ml)

4500ml

Emission standard

Euro 2or3

Dimension & weight

Overall dimension (L*W*H/mm)

8700×2420×3680mm

Axles No.

2

Curb Weight(kg)

4700

Max speed(km/h)

90

performance parameter

Water Tank volume(L)

4000

Tank material

5mm carbon steel or stainless steel ,round tank

Vacuum pump

high quality special vacuum pump, vertical suction lift is about 7-10m.

Standard configuration

inspect window, one gravity mouth, cleaning apparatus,5 meter long suction pipe, oil-water separators, overflow valve, etc,

Main function

With self-priming, self-discharging function, with dump function, rear door is controlled by hydraulic.

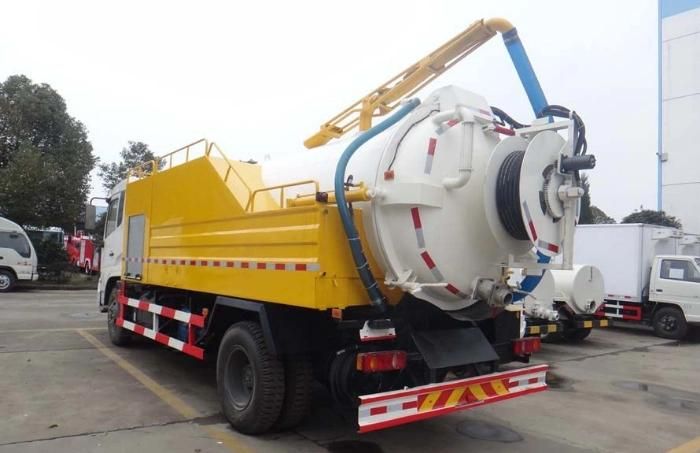

Reference Photos

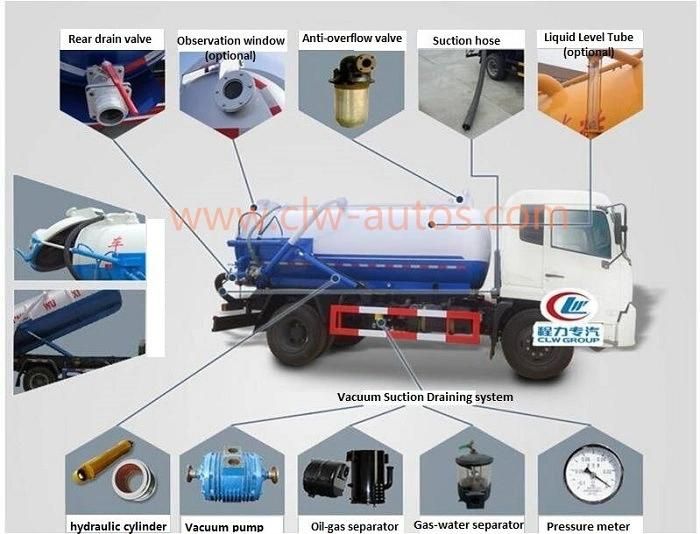

Main Structure

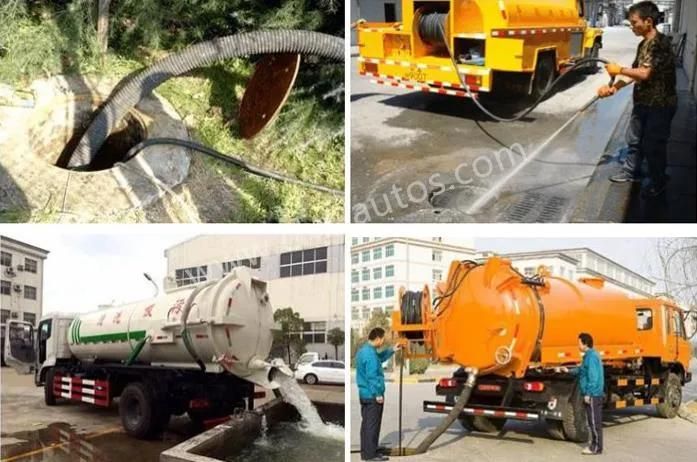

Working Scene

Certificates

Our Overseas Exhibition
