• Model NO.：CLW5087GYK
• Drive Wheel：4x2
• Hoesrpower：68HP
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：2600mm
• Engine Power：68HP
• Tank Capacity：2cbm 2m3 2cubic Meter 2000liters 2t 3t
• Tank Material：5mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction Range：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：2cbm, 3cbm, 4cbm, 2ton 3ton 4ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Vehicle DescriptionOverall dimensions 4870*1700*2300mmGVW 4000kgCurb weight2100kgChassis brandFOTONTraction type4*2Tanker DescriptionTankerCapacity2cbmMaterial5mm thickness, high quality carbon steelStructureWelding, vacuum tank, CylindricalPumpTypeVacuum pumpFlux45(L/S)Rating speed500~800(r/min)Shaft power4(kw)FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiencyManufactureHangzhou WEILONG Pump Co., Ltd.PipeSuction and discharge pipeSpecial functionSuction time ≤ 5min,
Effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45Standard configurationEquipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.Optional configurationTanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank.
Sprinkler function.Chassis DescriptionChassis BrandFoton ForlandSteeringLHD/RHDCabSingle row, with A/CWheelbase2600mmTire specification6.00-15Tire quantity6 tires and 1 spare tireEngineEngine modelCY4102QBEmission levelEURO 2or3Displacement/output2156ml/34.5kwHorse power68hpGear boxModel5-20Number of gears5-speedBrake systemAir brakeAxleFront1.5TRear3.5TFuel tankerTypeCarbon steel

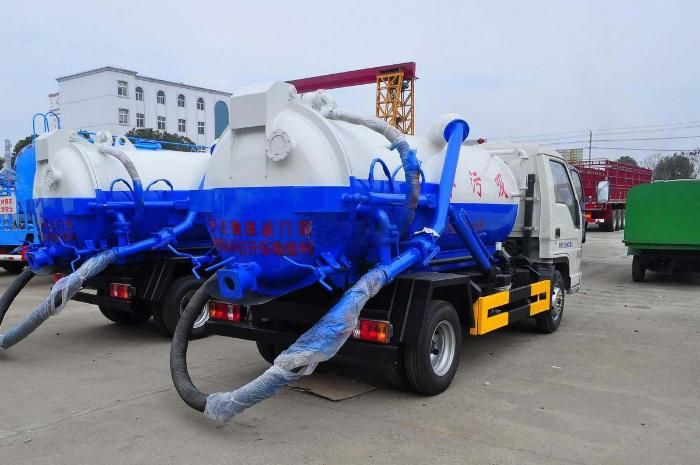

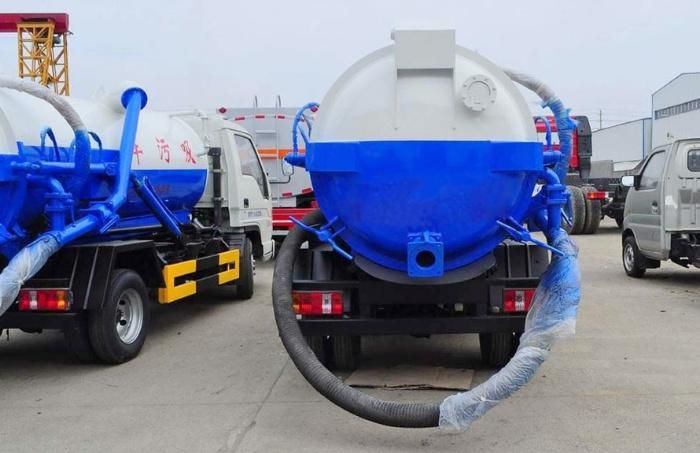

Reference Photos

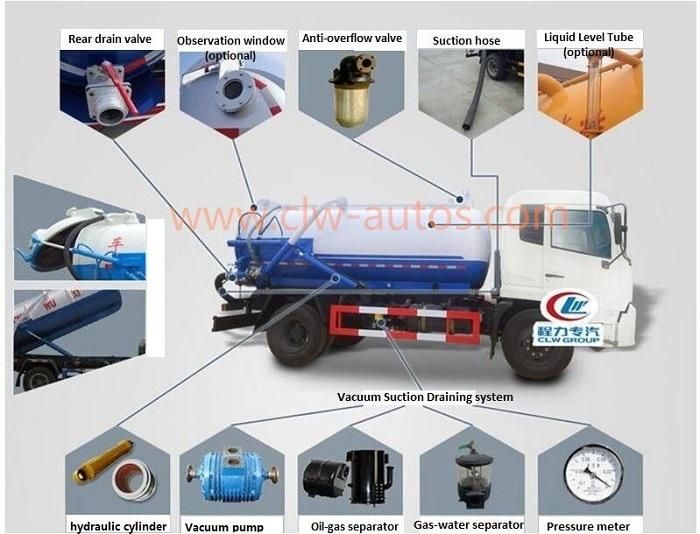

Main Structure

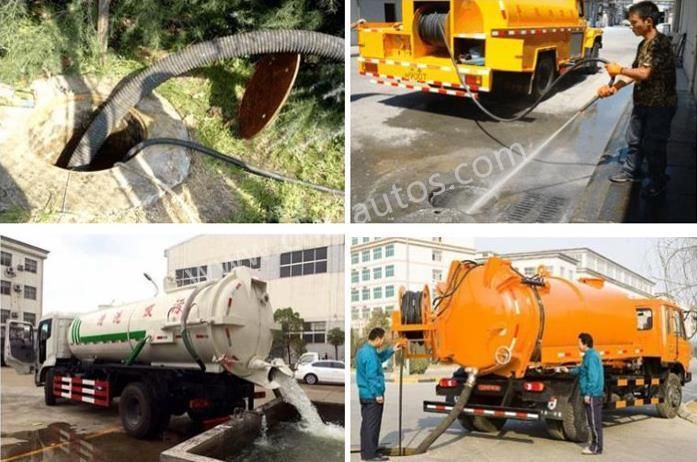

Working Scene


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
