• Model NO.：CLW50657BGJ
• LED Tube Core Type：SMD
• Self-powered：Without Self-powered
• LED Screen Type：P3,P4,P5,P6
• Power Supply Mode：380V Industry Electricity
• LED Board Type：One-Side Screen,Two-Side Screen
• Screen Size：4m2-12m2, as Per Chassis Size
• Pixel Pitch：4mm, 5mm, 6mm; P4 P5 P6
• Picture Tube Chip Color：Full Color and Monochrome
• Color：White; Blue; Green; Yellow; Customized
• Warranty：1 Year
• Transport Package：with Foam Cover on LED Screen
• Specification：3200*750*400 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. CLW50657BGJ LED Tube Core Type SMD Self-powered Without Self-powered LED Screen Type P3,P4,P5,P6 Power Supply Mode 380V Industry Electricity LED Board Type One-Side Screen,Two-Side Screen Screen Size 4m2-12m2, as Per Chassis Size Pixel Pitch 4mm, 5mm, 6mm; P4 P5 P6 Picture Tube Chip Color Full Color and Monochrome Color White; Blue; Green; Yellow; Customized Warranty 1 Year Transport Package with Foam Cover on LED Screen Specification 3200*750*400 mm Trademark CLW Origin Suizhou, China HS Code 8705909090 Production Capacity 500 Unit/Month

Product Description

China Outdoor P3 P4 P5 P6 Full Color Moving Advertising Truck LED Display Roadshow Vehicle


Product Description

1. Purpose: For mobile advertising, products promotion, branding, draft activities, concerts, and sport events, etc.

2. Main parts: LED screen, Generator set, Computer, Control system etc.

Product Specification

Item	Cabinet Specification
Material	Iron/Steel
Color	White, as customer's request.
Size	3200*750*400mm
Resolution  rate	96*96
Module  quantity	3*3
Density	10000dots/m2
White  balance  luminance	8000-9000cd/m2
Color  temperature	6500
Horizontal  view  angel	110
Vertical  view  angel	50
Protection  grade	Before/after:   IP67/IP65
Non-Flatness	< 1mm
Module  interval	< 1mm
Weight	48kg
Maximal  power/m2	480W
Frame  frequency	≥ 60Hz/s
Refresh  frequency	480-1680Hz
Gray  grade	1073741824
Luminance  adjusted	256  grade  by  auto-optic/color  & 8  grade  by  hand
Input  signal	RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc
Control  system	PCTV  non-linear  editing  card  +  DVI  display  card  +  main  controller  card  +  optic  fiber  transmisson(Optional)
MTBF	> 5000h
Life-span	> 100000h
Speckles  rate	< 0.0002

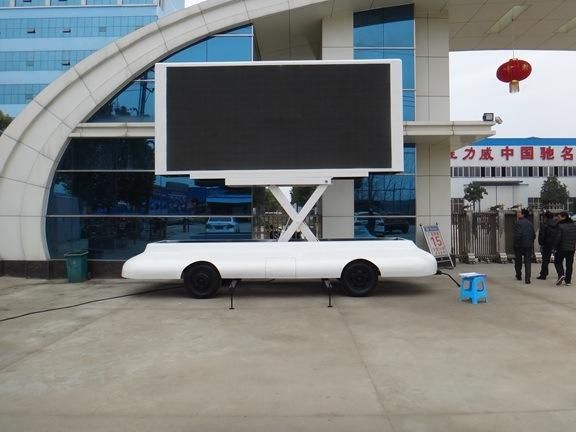

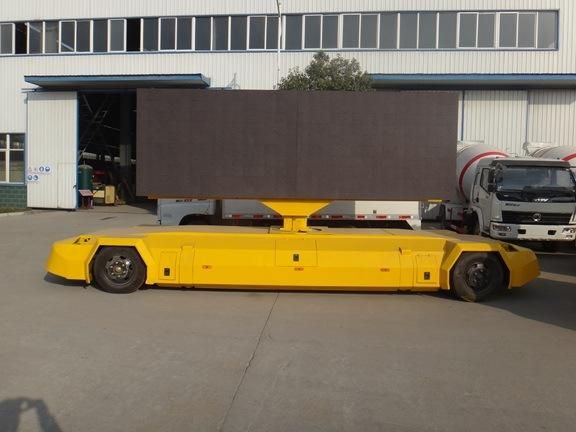

Reference Photos



Various kinds of Advertising Trucks


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
