• Model NO.：CLW5109GWQ
• Fuel：Diesel
• Drive Wheel：6×4
• Horsepower：251-350hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：6*4
• Cabin：4 Doors with A,C
• Engine Type：4kh1-Tcg40,88kw
• Fire Pump：CB10,30
• Material of Tank：Carbon Steel
• Tank Thickness：4,3,3mm
• Suction Depth：Deeper Than 7m
• Tanker Capacity：3000L Water, 1000L Foam
• Fire Monitor Range：Water 50m, Foam 45m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：10Ton, 12t, 11t, 10000L, 10cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemHowo Fire Fighting TruckVehicle parametersGVW(kg)6810Overall Dimension (mm)6850×1960×2530Rated load capacity (kg)2365Tank Capacity (m³)4Curb weight (kg)4120Wheelbase (mm)3815Engine parametersModel4KH1-TCG40Emission StandardDiesel,Euro4 Horse Power(hp)120Emissions(ml)2999Performance ParameterMax Speed (km/h)105Wheel Tread(mm)Front Axle1504Cab2+3Rear Axle1425Leaf Spring8/6+5Suspension (mm)Front Suspension1015Tire No.  6+1Rear Suspension2020Tire Specification7.00-16 14PRDriving Angle(°)Approach Angle24Axle No.2Departure Angle13Special FunctionCapacity(L)Water tank 3000L, Foam tank 1000LFire Pump1. CB10/30, 30L/s, pressure:1.0MPa2.Suction time≤ 35s(7m suction depth )centrifugal pumpFire MonitorPS30, 30L/S/1MPa, fire nozzle range:≥55mPerformance DescriptionDouble row cab with 4 doors; Exposed tank, material is carbon steel Q235A,with thickness 4 mm;Truck body with aluminum alloy rolling door;PTO control indicator installed in cab, also with 100W siren,LED alarm lamp,sign light,lighting switch, rear lighting and etc.See the below equipment table

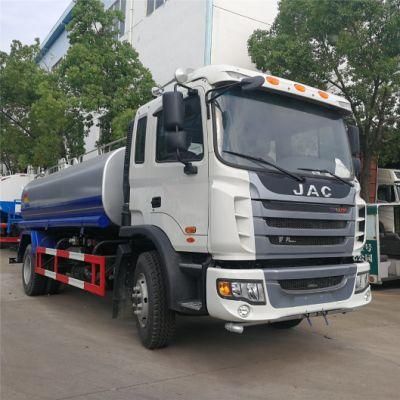

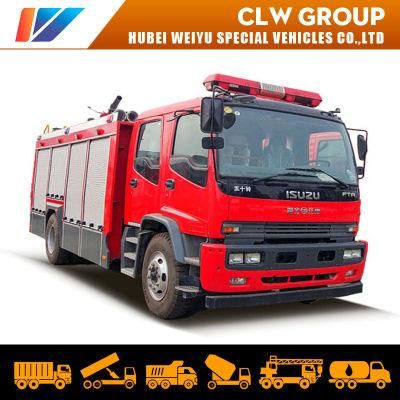

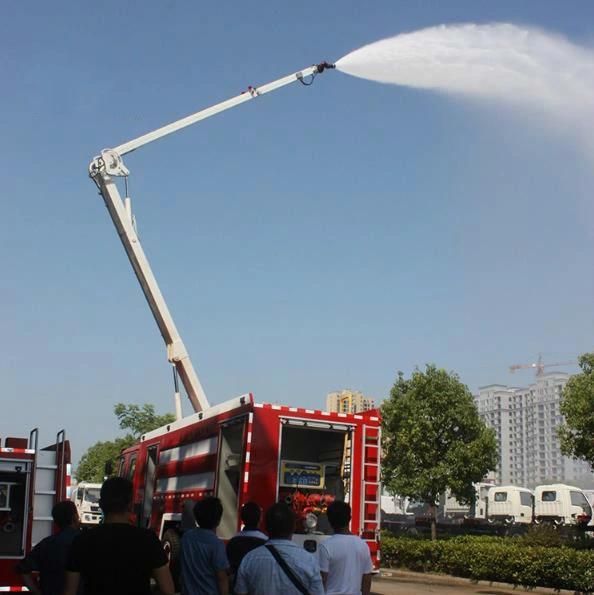

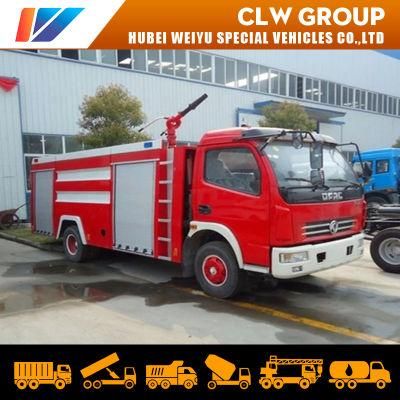

Reference Photos

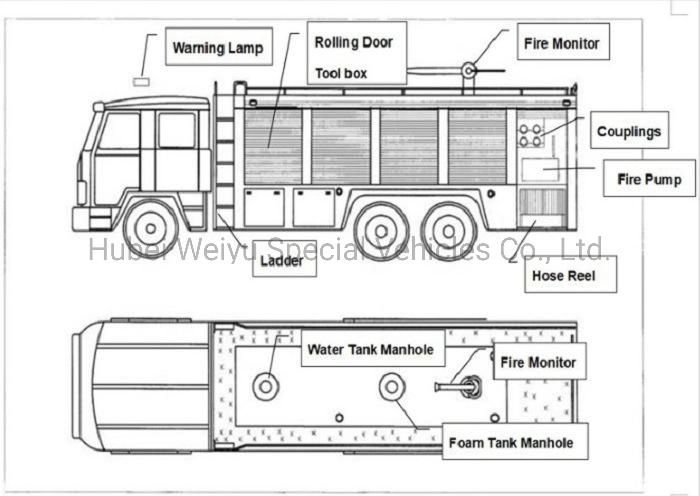

Main Structure Diagram

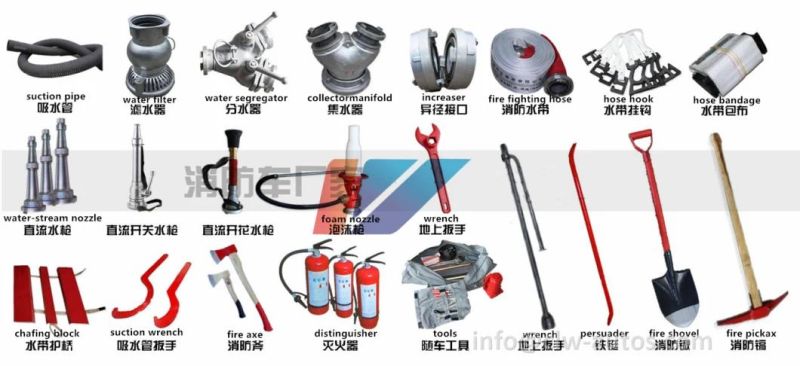

Main Tools of Fire Fighting Truck

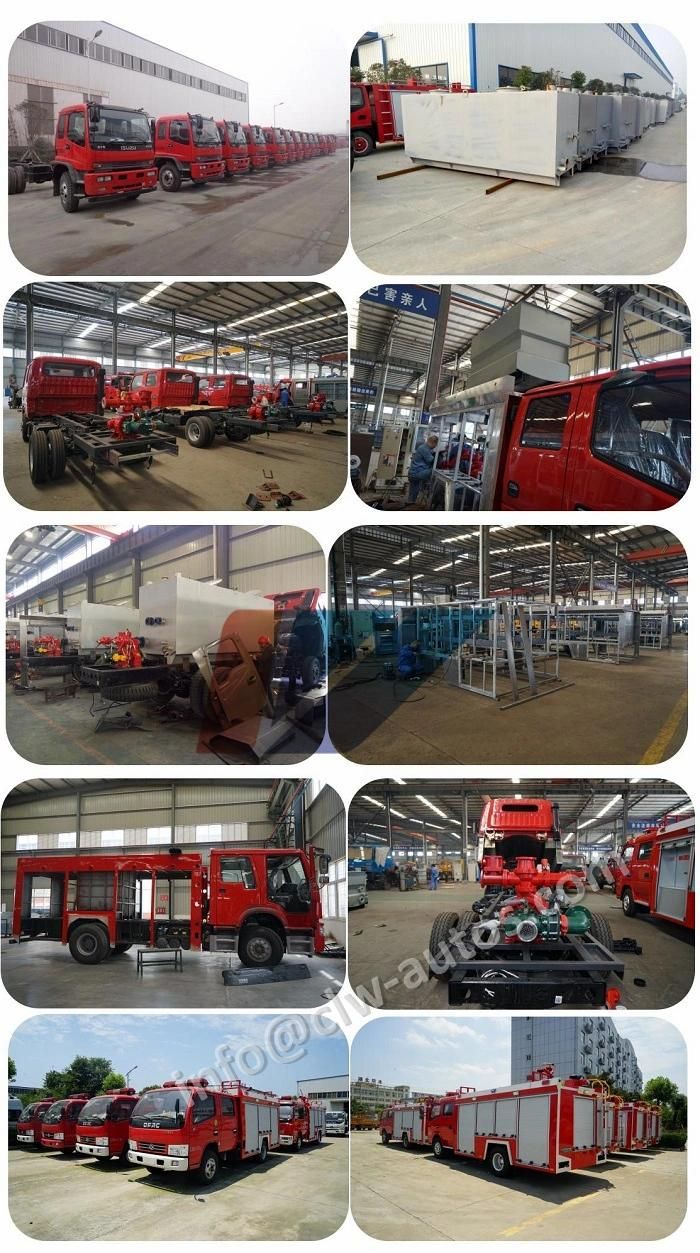

Production Show

Certificates


Our Overseas Exhibition


Contact Flora for more details:  +86-13971508969 (Mobile)
