• Model NO.：CLW5089GP
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：4*2
• Cabin：4 Doors with A,C
• Engine Power：130HP,96kw
• Fire Pump：CB10,20
• Lifting Lamp：4X1000W, Height More Than 7.5m
• Material of Tank：Carbon Steel
• Flow Rate of Fire Pump：20L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire Monitor：20L,S
• Tanker Capacity：2000L
• Fire Monitor Range：Water 50m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：2t, 3t, 3Ton, 3000L, 2-3cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

4X2ChassisQL1050CapacityWater:2000LVehicle Main DimensionsDimensions(L x W x H)(mm)6205X1900X2700Wheel base (mm)3360Overhang (front/rear) (mm)1015/1830Wheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Weight in KGSGVW.4085Curb Weight2050Max. driving speed(km/h)90EngineModelEngine:4KH1-TCType4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)130 HPengine capacity(ml)2999Emission standardEuro IIIGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)150Tire7.00R15tire , 6 + 1(spare)Brakesdual circuit compressed air brakeCabfour doors, double row  Water tank materialhigh quality steel plate, antiseptic treatmentPTOType: Sandwich type (full power PTO).
Handle: Manual control
Cooling type: Forced water cooling, Splash lubricationPiping SystermSuction pipeline, outlet pipeline, residual water pipeline and cooling water pipelineFire Pump1. Tank  capacity: 2000L
2. Fire pump model:CB10/20
3. The flow rate of fire pump: 20L/S
4. Pressure of fire pump : 1.0mpa
5. Fire cannon mode PS20
6. Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0MpaOther Equipment1. one ingate, with fast lock and open device
2. one overflow safety device and air breather
3. one fluid level gauge
4. one drain outlet, with ball valve, stainless steel valve element
5. two water filling nozzle outside of the tanker
6. one inlet piping connect to water tank and pump

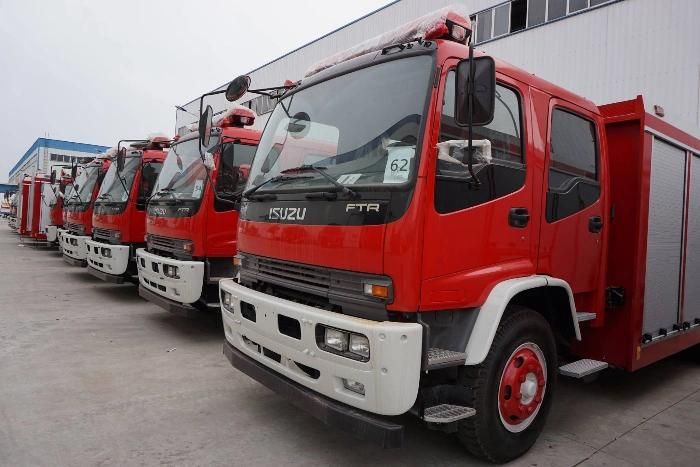

Reference Photos

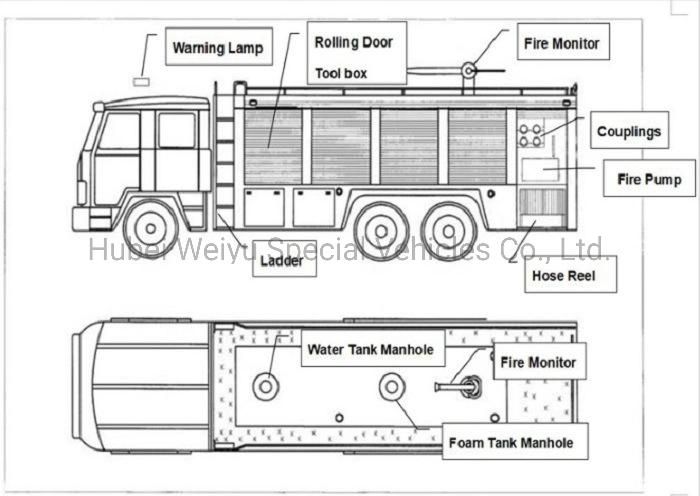

Main Structure Diagram

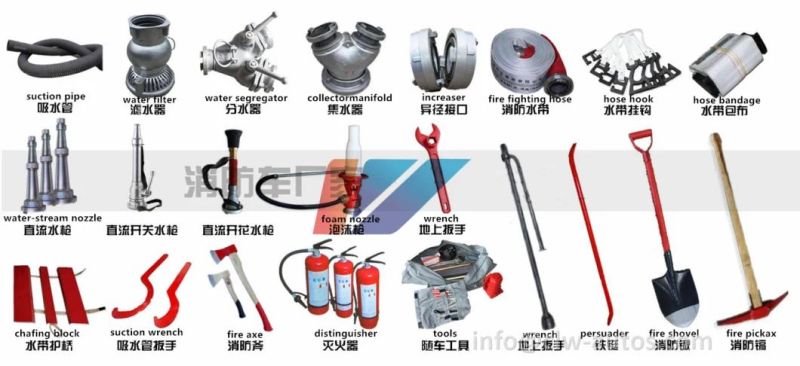

Main Tools of Fire Fighting Truck

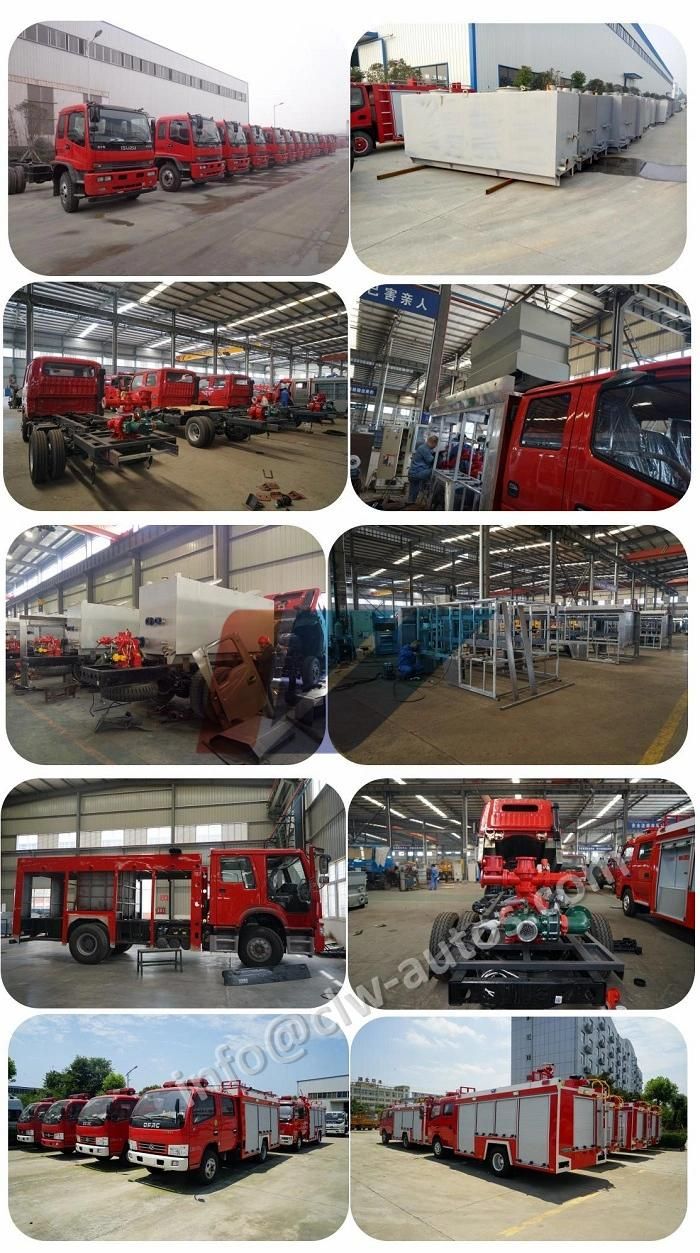

Production Show

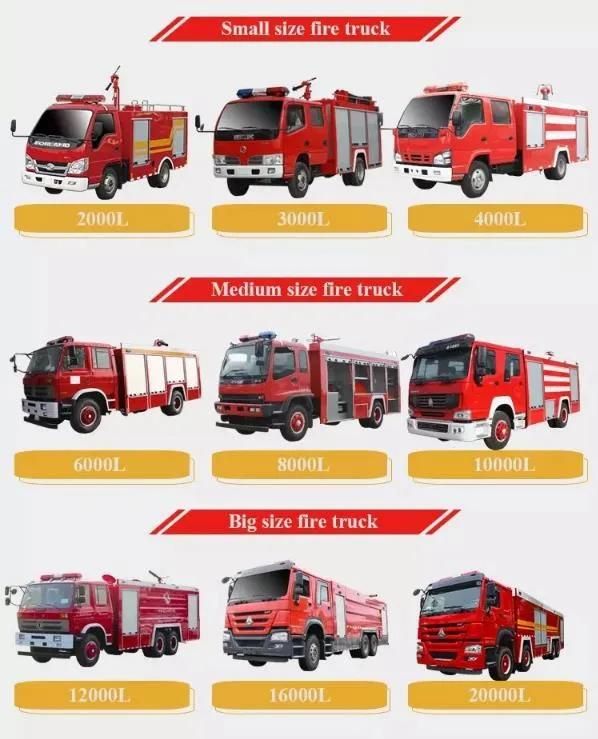

Different Capacity of Fire Fighting Truck


Certificates

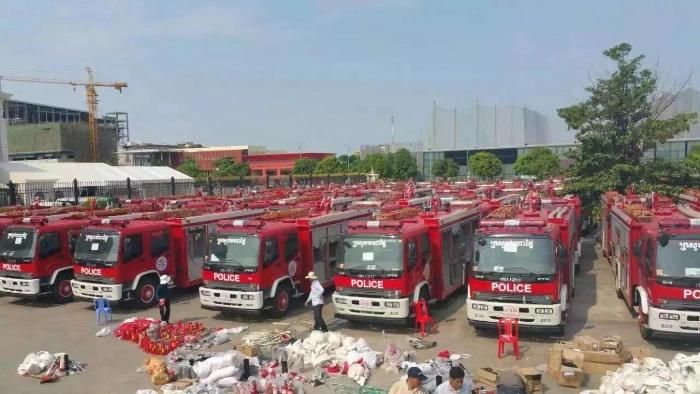

Our Overseas Exhibition
