• Model NO.：CLW5089PAS
• Fuel：Diesel
• Drive Wheel：6×4
• Horsepower：351-450hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：6*4
• Cabin：4 Doors with A,C
• Engine Power：247kw,336HP
• Fire Pump：CB20.10,30.60
• Lifting Lamp：4X1000W, Height More Than 7.5m
• Material of Tank：Carbon Steel
• Flow Rate of Fire Pump：60L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire Monitor：48L,S
• Tanker Capacity：Water 12000L, Foam 3000L
• Fire Monitor Range：Water 60m, Foam 55m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12t, 13t, 14t, 15t, 16t, 15cbm, 15000L, 12-15cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ItemunitparameterVehicle model CLW55210GXFChassis model ZZ1257N4347COverall dimensionsmm9720×2500×3585 Fact water cubageL12000 GVWkgAppro×26550    Kurb Weightkg14300 Wheel basemm4325+1350 F/R track base 2022/1830/1830 Approach/departure angle°16/13Exhaust/kwml/kw9726/247Max speedkm/h95Tire specification11.00R20 16PREngine typeWD615.95ETraction system6*4transmission10-speed with over driveNumber of axles3Electric system24vOperation control  systemElectrically hydraulic controlAllowable passengers in cab6Maximum Torque666/1700(NM/rpm)Fuel Consumption22.4L/100KMFire EquipmentFire cannonModel:PP48,
 range water ≥60m /1.0MPa,foam≥55m
 flow 40L/S
Angle: horizontal 360°,pitchangle -30°~80°Fire pump(middle/low pressure)CB20.10/30.60 ,
flow :middle pressure 30L/s/2.0MPa
     low pressure 60L/s /1.0Mpa Fire pump(normal pressure)BS60
Flow:60L/s/1.0MpaTank thicknessBottom, front closure panels, rear closure plate 4mm, side panels, anti-swing panels, roof (non-slip tread plate)
3mmElectricityTop front of the cab for the long row of lights, body is equipped with 24V, 60W lighting a fire, vehicles on both sides with red and blue to match the burst of flashing lights, security lights installed beneath the crew compartment, equipment boxes, pumping stations are equipped with lights, install a 100W siren, revolving lights, switches, communications equipment ready interface.

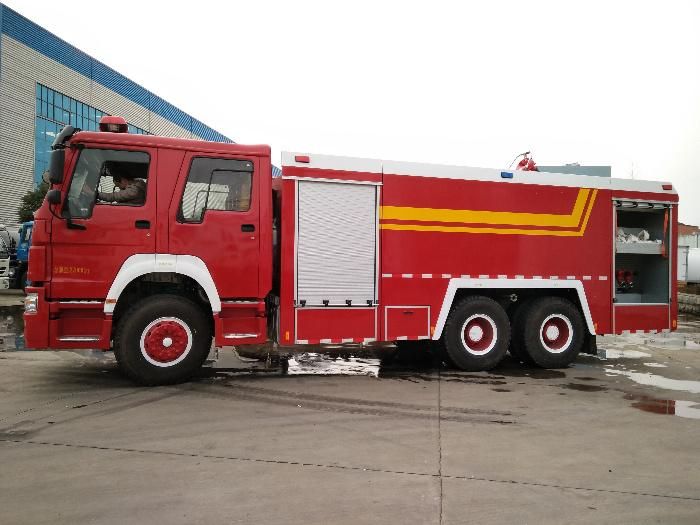

Reference Photos

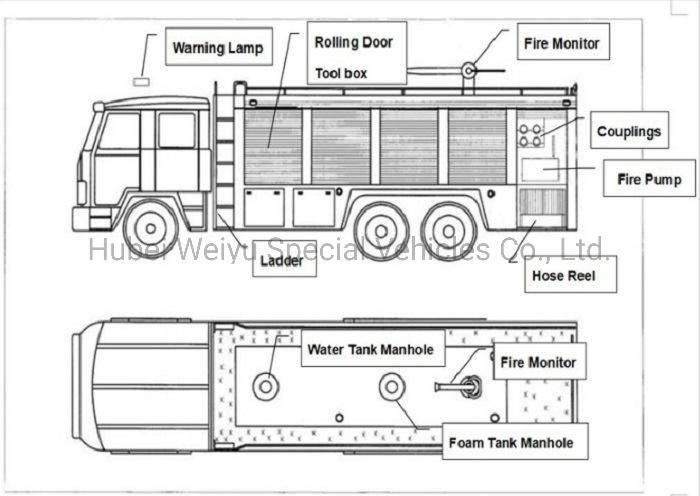

Main Structure Diagram

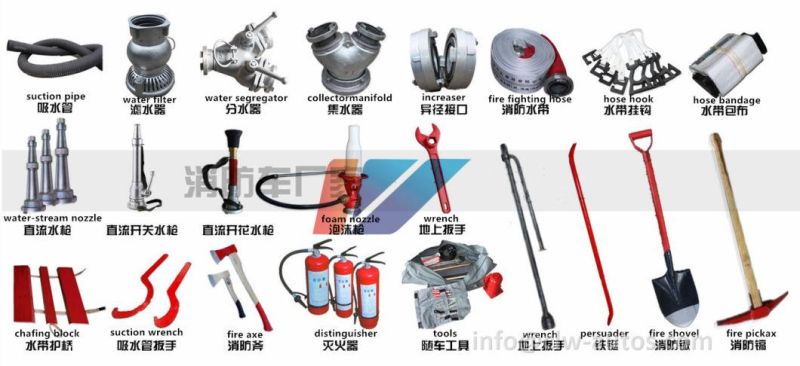

Main Tools of Fire Fighting Truck


Production Show

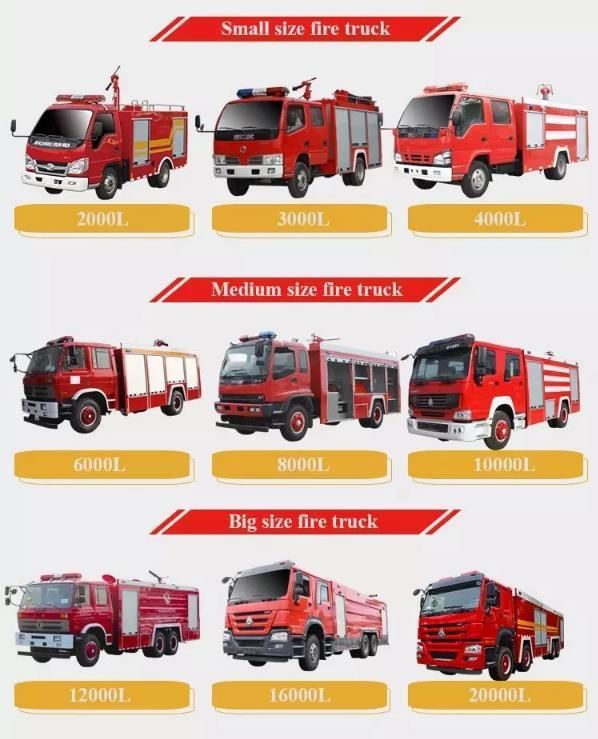

Different Capacity of Fire Fighting Truck


Certificates


Our Overseas Exhibition
