• Model NO.：CLW5109GWR
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：251-350hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：4*2
• Cabin：4 Doors with A,C
• Engine Type：Mc07.34-50,248kw
• Material of Tank：Carbon Steel
• Tank Thickness：4,3,3mm
• Suction Depth：Deeper Than 7m
• Tanker Capacity：7-10000L
• Fire Monitor Range：60m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：10Ton, 10t, 12t, 10000L, 10cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Project

Parameter

Allowance Difference

Dimension

Parameters

Overall dimensions

Length

8510

±1%

Width

2500

±1%

Height

3500

±1%

Axle base               mm

4500

±1%

Wheelbase mm

2035/1844

±1%

Front/rear suspension mm

1430/2580

±1%

Front/rear extension m

--

±1%

Driving

Parameters

Maximum speed  km/h

>90

≥

Minimum turning diameter m

17

≤

Braking length (full load, initial braking speed 30 km/h) m

10

≤

Approach Angle/Departure Angle

14/13

≥

Maximum climbing ability  %

25

≥

Quality

Parameters

Rated fire extinguishing agent

Full load weight

Water kg

7800

±3%

Curb weight

Total weight kg

11000

±3%

Maximum allowable value

Total weight

Total weight kg

19000

±3%

Chassis

Piece

Parameter

Type

ZZ5207TXFV471GE5

-

Type

II

-

Driving type

4×2

-

Manufacturer

China Heavy Truck

Engine

Type

MC07.34-50

-

Fuel type

Diesel

-

Power kw

248

-

Emission level

National 5

-

Manufacturer

China Heavy Truck

Steel spring number

3/5

-

Tire size

12.00R20

-

Number of tires (excluding spare tires)

6

-

Passengers allowed in the cab

2+4

-

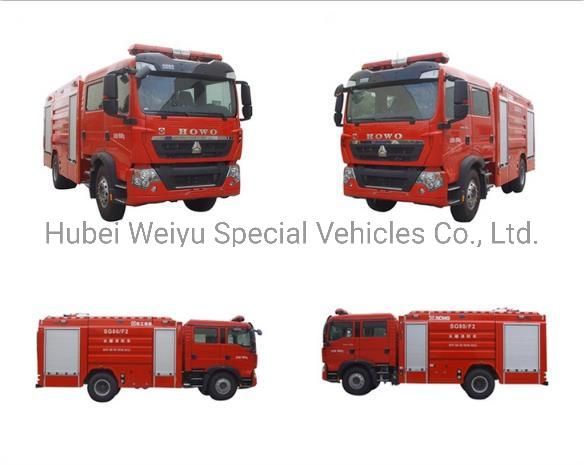

Reference Photos

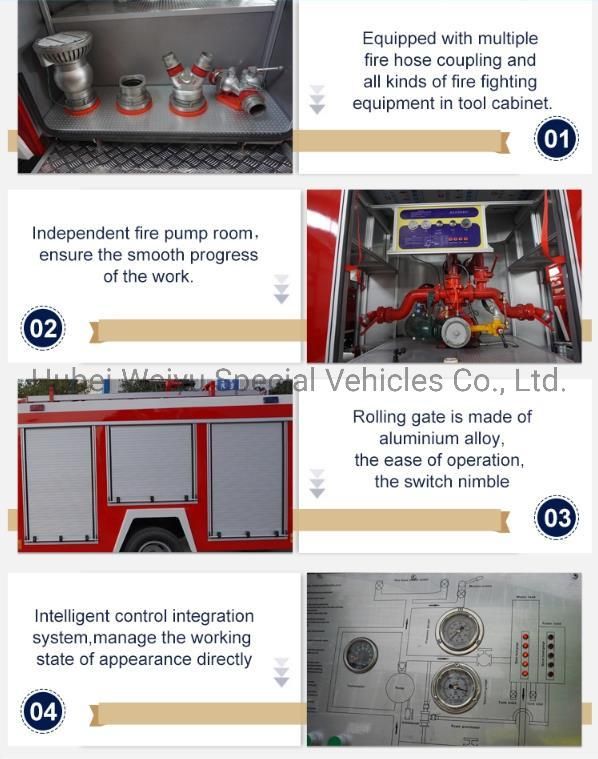

Main Structure Diagram

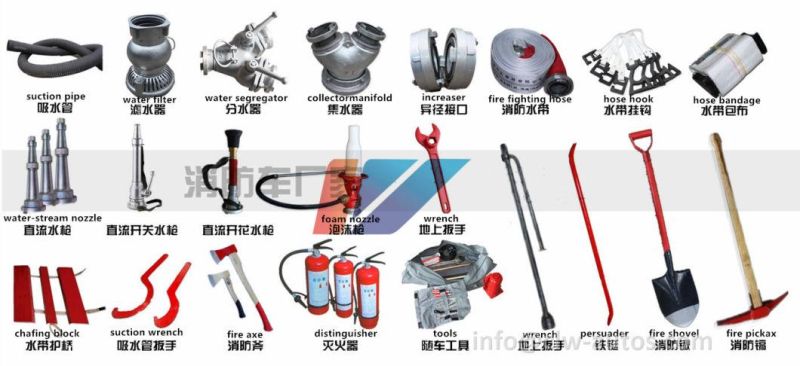

Main Tools of Fire Fighting Truck


Production Show

Certificates


Our Overseas Exhibition
