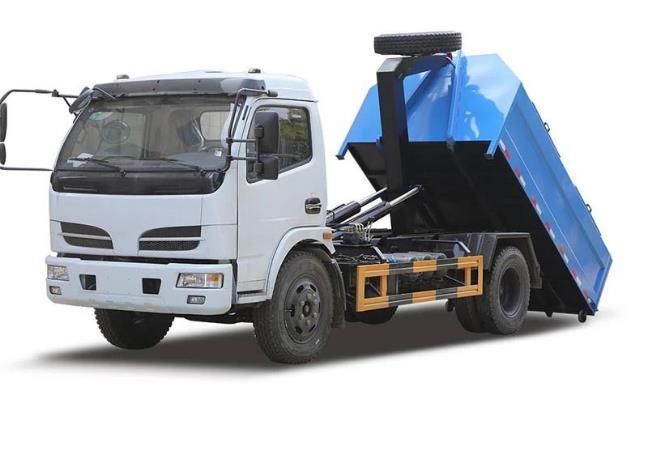

Dongfeng 4*2 8ton 6cbm Detachable Container Type Garbage Truck Hook Arm Lift Garbage Truck

Hubei Weiyu Special Vehicles Co., Ltd.
  • Type：Roll Off
  • Certification：ISO9000, CCC, CE
  • Volume：6001-10000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：8ton

Base Info

  • Model NO.：CLW5078CB
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Dongfeng
  • Models：Medium
  • Usage：Arm Type
  • Condition：New
  • Chassis Brand：Dongfeng, HOWO, FAW, JAC, Foton, etc
  • Engine：156HP
  • Garbage Box Material：Carbon Steel
  • Thickness of Box：4mm, 5mm
  • Loading&Unloading：Hydraulic System
  • Container Roll on Time：50-60s
  • Container Roll off Time：40-50s
  • Control System：Multi-Valve
  • Color：as Per Customer′s Request
  • Warranty：1 Year
  • Transport Package：Naked, RO-RO, Bulk, Container
  • Specification：5850*2150*2450 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

Basic Info.

Model NO. CLW5078CB Fuel Diesel Drive Wheel 4×2 Brand Dongfeng Models Medium Usage Arm Type Condition New Chassis Brand Dongfeng, HOWO, FAW, JAC, Foton, etc Engine 156HP Garbage Box Material Carbon Steel Thickness of Box 4mm, 5mm Loading&Unloading Hydraulic System Container Roll on Time 50-60s Container Roll off Time 40-50s Control System Multi-Valve Color as Per Customer′s Request Warranty 1 Year Transport Package Naked, RO-RO, Bulk, Container Specification 5850*2150*2450 (mm) Trademark CLW Origin Suizhou, China HS Code 8705909090 Production Capacity 500 Unit/Month

Product Description

Dongfeng 4*2 8ton/6cbm Detachable Container garbage truck Hook Arm Lift Garbage Truck

Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Product Specification
Model:MD5070ZXD
Type:4x2,  Garbage truck
Driving type:LHD
Overall dimension (mm):5850*2150*2450
Wheelbase(mm):3800
Tread FR/RR(mm):1745(front), 1620(rear)
Curb vehicle weight(kg):3105
Gross vehicle weight (kg):7350
Payload (kg):4050
Approach/departure angle(°):21/12(°)
Tire Size:8.25R20
Model:CY4SK251
Type:4-cylinder, in line, inter-cooling ; Vertical water cooling, four stroke, pressurization medium cooling,
electric control high - pressure common rail
Displacement (L):3.856
Type Of Fuel:Diesel
Max. Power (hp/rmp):156/2800
Max. Torque (N.m/rmp):500/1200-2200
Emission:Euro V

Product Show
Dongfeng 4*2 8ton 6cbm Detachable Container Type Garbage Truck Hook Arm Lift Garbage Truck
Dongfeng 4*2 8ton 6cbm Detachable Container Type Garbage Truck Hook Arm Lift Garbage Truck
Dongfeng 4*2 8ton 6cbm Detachable Container Type Garbage Truck Hook Arm Lift Garbage Truck

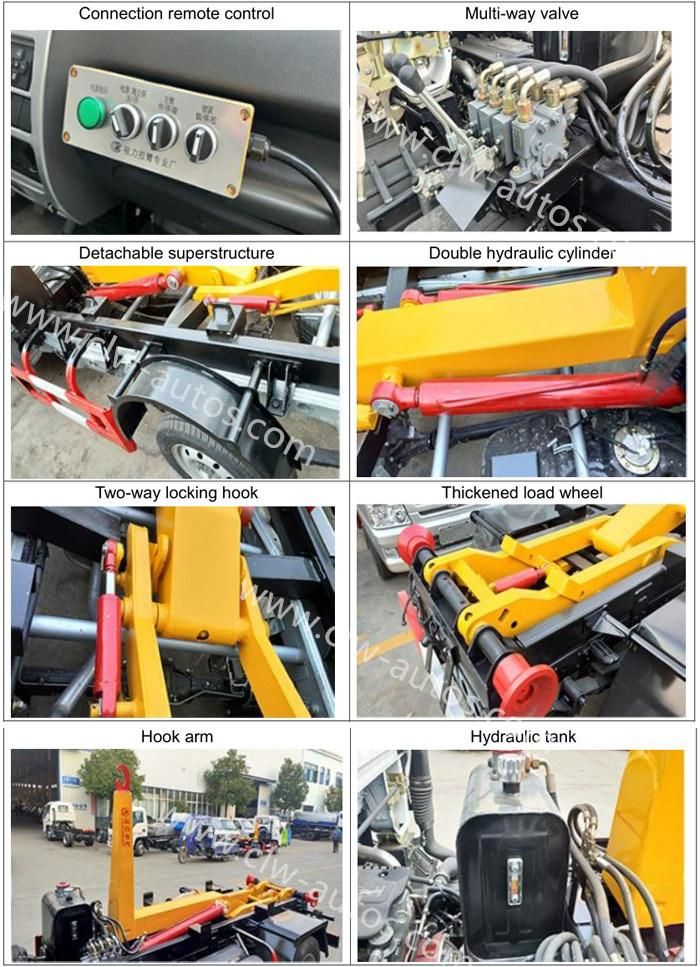

Main Parts
Dongfeng 4*2 8ton 6cbm Detachable Container Type Garbage Truck Hook Arm Lift Garbage Truck

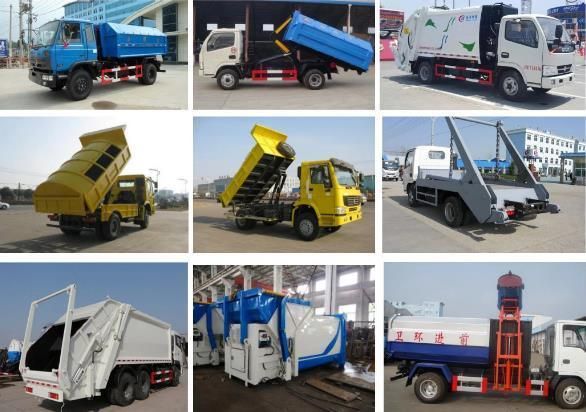

Different types of garbage truck
