• Model NO.：CLW5109GWC
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：4*2
• Cabin：4 Doors with A,C
• Engine Type：4HK1-Tc51,141kw
• Fire Pump：CB10,30
• Material of Tank：Carbon Steel
• Tank Thickness：4,3,3mm
• Flow Rate of Fire Pump：60L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire Monitor：30L,S
• Tanker Capacity：5000L
• Fire Monitor Range：60m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5Ton, 5t, 5000L, 5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Vehicle Parameters

General

Vehicle Model

YZR5100GXFSG30/Q

Vehicle Brand

XDR

Chassis Brand

Isuzu(QL1100A8MAY)

Overall Dimension(mm)

7690×2250×3000

GVW/Curb Weight(kg)

9700/6225/3100

Chassis Parameters

Cab

Cab Seat

2+3

Air Conditioner

YES

Engine

Fuel Type

diesel

Engie Model

4HK1-TC51

Engine Brand

ISUZU (QINGLING )

Power(kw/hp)

141/190

Displacement(cc)

5193

Emmission Standard

Euro5

Chassis

Drive Type

4*2

Transmission

6 speed, Manual

Wheelbase(mm)

4475

Tyre Specification

235/75R17.5

Tyre No.(pcs)

6+1

Max Speed(km/h)

100

Paint

Red

Fire Truck Water Tank Structure Parameters

Tank Volume

5000L

Tank Material

Carbon Steel

Tank Thickness

4/3/3mm

Fire pump

CB10/30

Fire monitor

PS30

Color and

Optional

Standard configuration

Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank.

Selective configuration

foam type,dry powder type,stainless tank,other requirements.

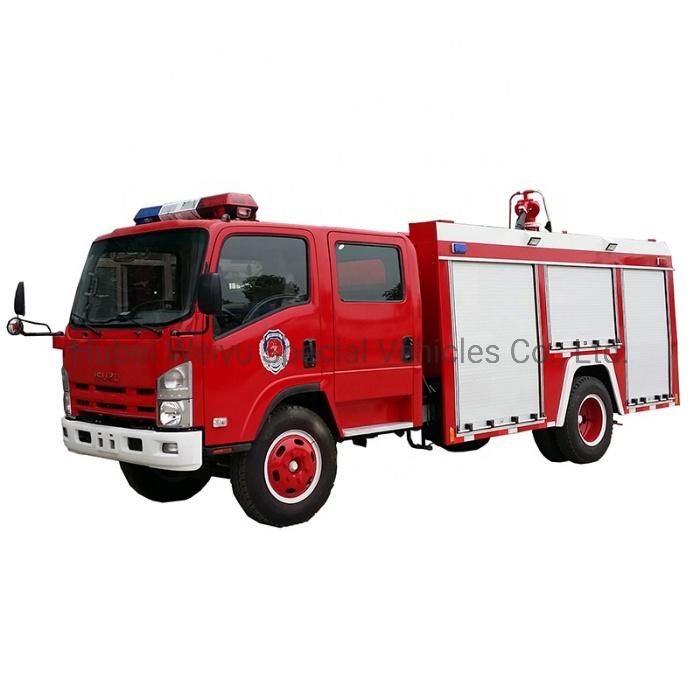

Reference Photos

Main Structure Diagram

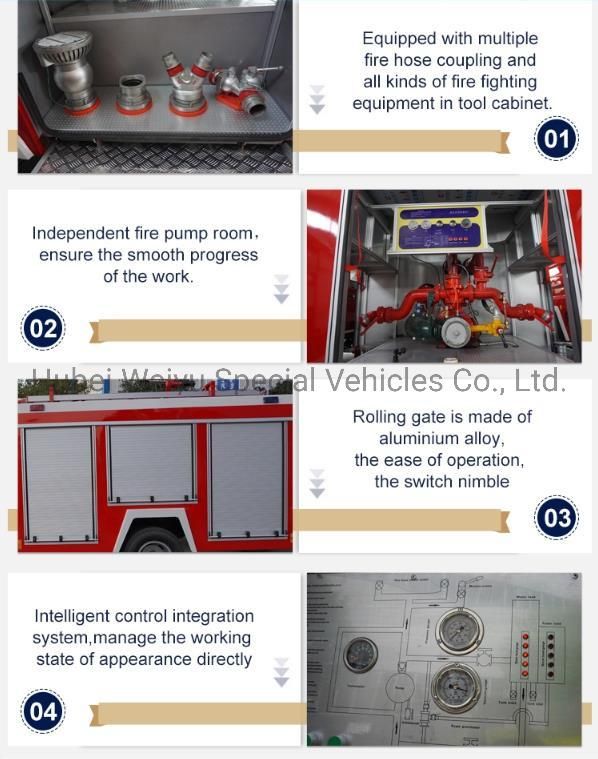

Main Tools of Fire Fighting Truck

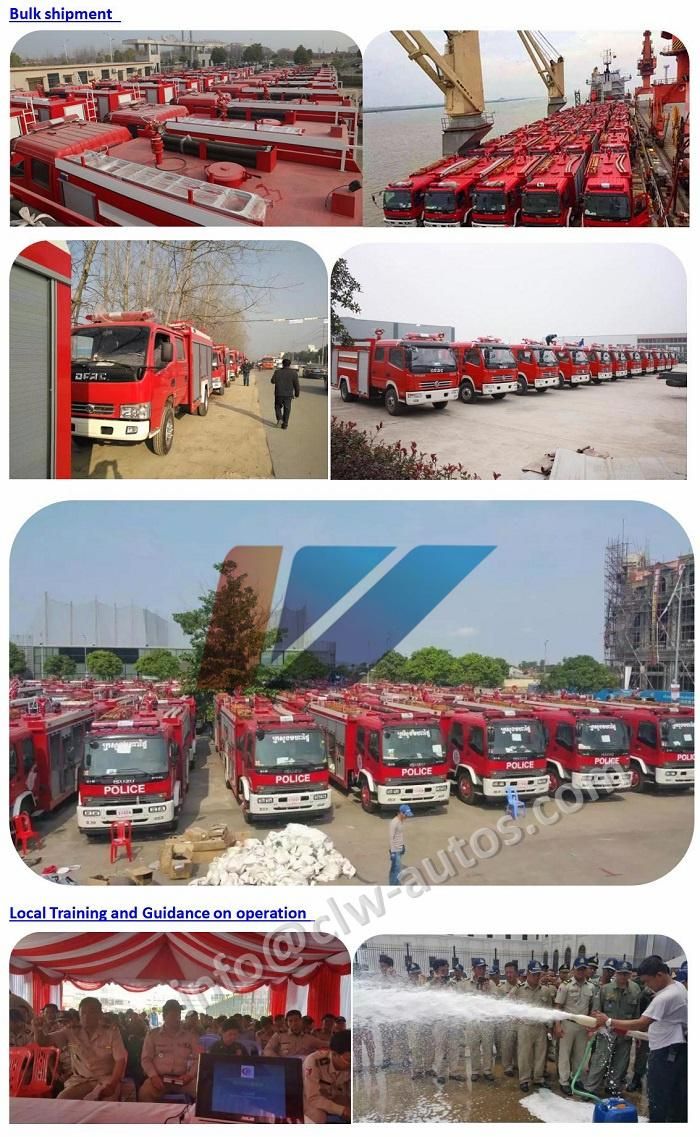

Production Show

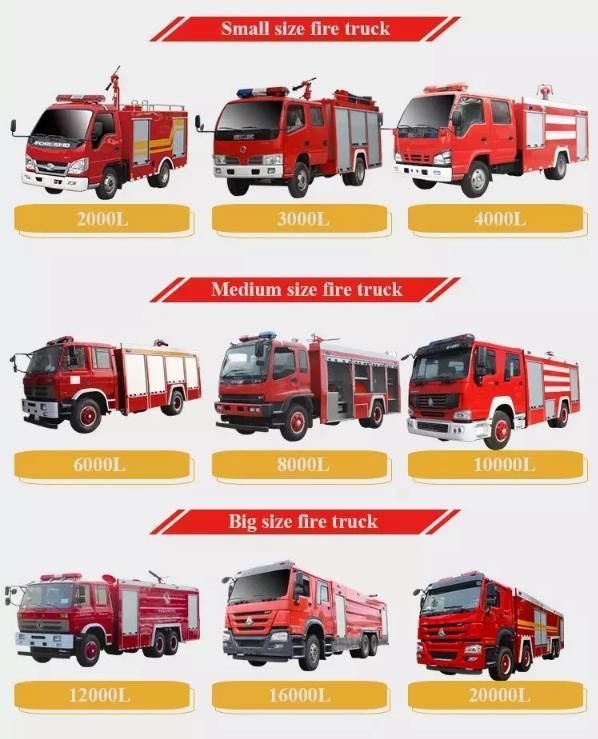

Different Capacity of Fire Fighting Truck

Certificates
