• Model NO.：CLW5078GA
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Arm Type
• Condition：New
• Chassis Brand：Dongfeng, HOWO, FAW, JAC, Foton, etc
• Engine：155HP
• Garbage Box Material：Carbon Steel
• Thickness of Box：4mm, 5mm
• Loading&Unloading：Hydraulic System
• Container Roll on Time：50-60s
• Container Roll off Time：40-50s
• Control System：Multi-Valve
• Color：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：5500*2490*2600 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 Upperstructure ParametersTotal mass (Kg)15800Tank volume (m3)8cbm

The rated load mass (Kg)

8450

Overall dimensions (mm)

5500*2490*2600Curb weight (Kg)7155

Bridge must take a

number of (a person)

3

Approach Angle/

Angle of departure (°)

20/17

Before hanging/rear

 suspension (mm)

1430/1570Axle weight (Kg)5600/10200Top speed (Km/h)98Chassis Technical ParametersChassis modelsDFL1160BX1V

The name of the chassis

The truck chassisBrand namewatershaveProduction enterprise

Dongfeng

commercial

vehicle co., LTD

Number of shaft2Number of tires6The wheelbase (mm)

3950, 4500, 4700, etc.

  Tire size

9.00R20 16PR,10.00-20 16PR,10.00-20 18PR,10.00R20 14PR,10.00R20 16PR,10.00R20 18PR,10R22.5 16PR,

275/80R22.5,275/70R22.5 16PR,275/70R22.5 18PR,295/80R22.5



Steel plate spring

leaf number

7/9+6,8/10+8,10/11+10

Before the wheel

 track (mm)

1880, 1900, 1920Fuel typediesel

After the wheel

track (mm)

1800, 1860, 1820

Emissions according

 to the standard

five GB3847-2005, GB17691-2005 countriesEngine type

Engine manufacturing

 enterprises

Displacement (ml)Power (Kw)ISD210 50

Dongfeng cummins engine

 co., LTD

6700155
Product Show

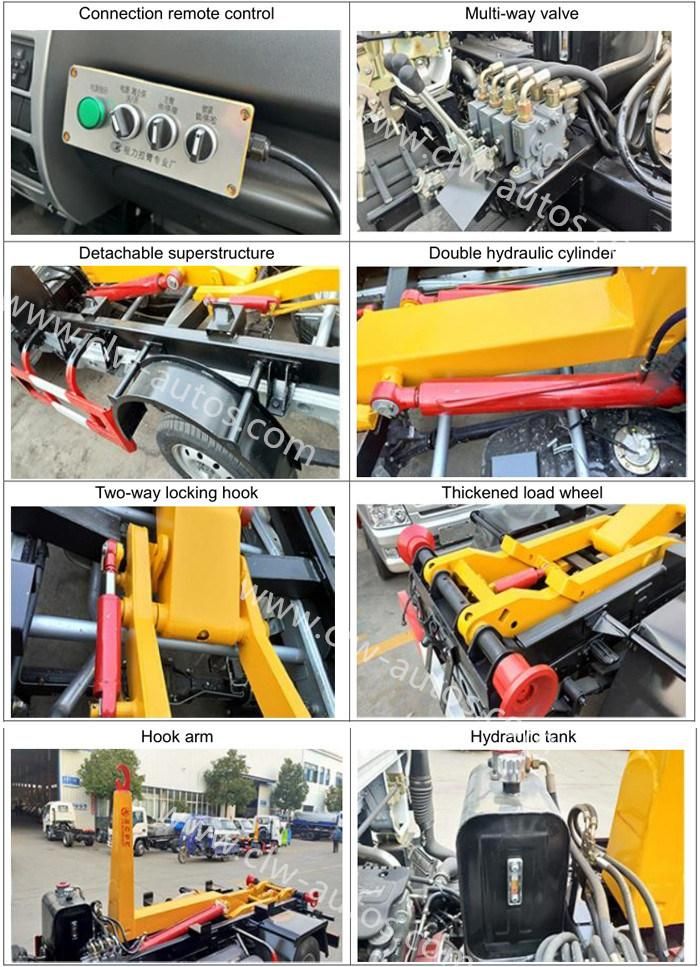

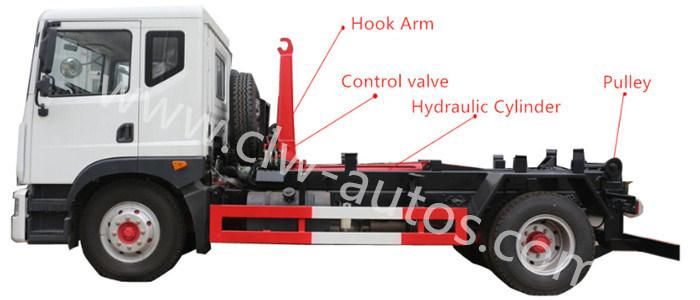

Main Parts
