• Model NO.：CLW5059A
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Chassis Brand：Dongfeng,Sinotruk,Foton,Isuzu,FAW, etc
• Drive Mode：4*2 4*4 6*4 8*4, etc.
• Curb Weight：6800kg
• Engine：180HP
• Tank Material：Q235B and Stainless Steel for Optional
• Tank Size：10cbm; 11cbm; 12cbm; 13cbm
• Tank Capacity：10ton; 11ton; 12ton; 13ton
• Tank Thickness：4mm; 5mm; 6mm
• Water Pump Flow：20 Cbm,H
• Water Diversion Time：Less Than 15min
• Water Suction Depth：7m
• Water Sprinkle Width：15m
• Water Cannon Range：30m
• Warranty：1 Year
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：8300*2500*3000 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension8300*2500*3000(mm)Gross Vehicle Weight15800(Kg)Curb Weight6800(Kg)Chassis SpecificationChassis BrandDongfeng TianjinDrive model4*2CabinSingle, Left Hand DrivingNumber of Passengers3 (2 in cabin, 1 in working platform)EngineModelISB180, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower132KW/180HPEmission standardEURO 2Displacement5900(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base4700(mm)Front/Rear Axle Loading4500/9000(Kg)Tire9.00R20, 6pcs + 1 spare tireMax Driving Speed90(km/h)Superstructure SpecificationWater TankerDimension5000*2100*1400(mm)MaterialQ235B carbon steelTanker volume12000LiterThickness of Tanker4mmWater Pump Materialcarbon steelVertical suction7mSprinkling width15mRange of Water Gun30mPump Flow20m³/hRange of Water Pump90mOther ConfigurationHigh quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.OptionsCaution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

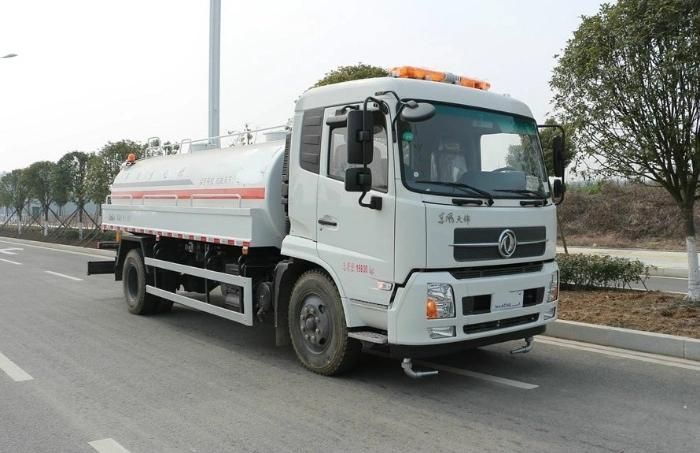

Product Show

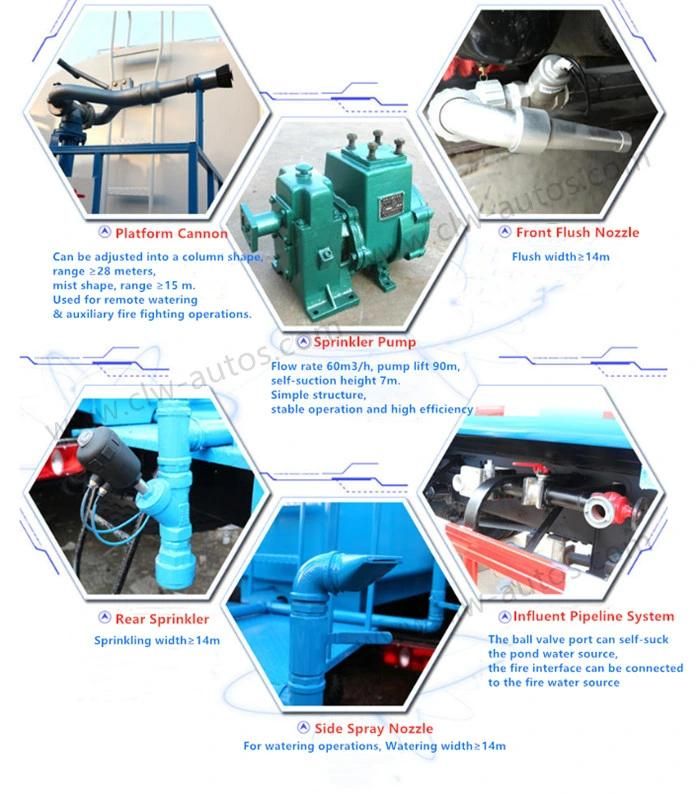

Main Parts
