• Model NO.：CLW0570BP
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Chassis Brand：Dongfeng, Sinotruk, Foton, Isuzu, FAW, Shacaman
• Drive Mode：4*2 4*4 6*4 8*4, etc.
• Tank Material：Q235B and Stainless Steel for Optional
• Tank Size：5cbm; 8cbm; 10cbm; 12cbm; 15cbm
• Tank Capacity：5t; 8t; 10t; 12t; 15t
• Tank Thickness：4mm; 5mm; 6mm
• Water Pump Flow：40 Cbm,H
• Water Diversion Time：Less Than 15min
• Sprayer Dimension：1100*500*1700mm
• Range of Sprayer：30m
• Water Consumption：0.8-1 Cbm,H
• Warranty：1 Year
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：6000*1900*2400 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension6000x1900x2400(mm)Gross Vehicle Weight7360(Kg)Curb Weight3360(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinSingle, Left Hand DrivingNumber of Passengers3 (2 in cabin, 1 in working platform)EngineModelCY4102-C3F, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower70KW/95HPEmission standardEURO 3Displacement3856(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base3300(mm)Front/Rear Axle Loading1800/3500(Kg)Tire7.00-16, 6pcs + 1 spare tireMax Driving Speed90(km/h)Superstructure SpecificationWater TankerDimension3400*1600*1100(mm)MaterialQ235B carbon steelTanker volume5000LThickness of Tanker4mmWater Pump Materialcarbon steelVertical suction7mSprinkling width15mRange of Water Gun35mPump Flow40m³/hWater diversion time<15minSprayerSprayer ModelLM-40Dimension1100*500*1700(mm)Range of Sprayer30mUpper and lower spray angle range-10°-55°Left and right spray angle range0°-360°Power Configuration380V 50HzWater Consumption0.8-1 m3/hOther ConfigurationHigh quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

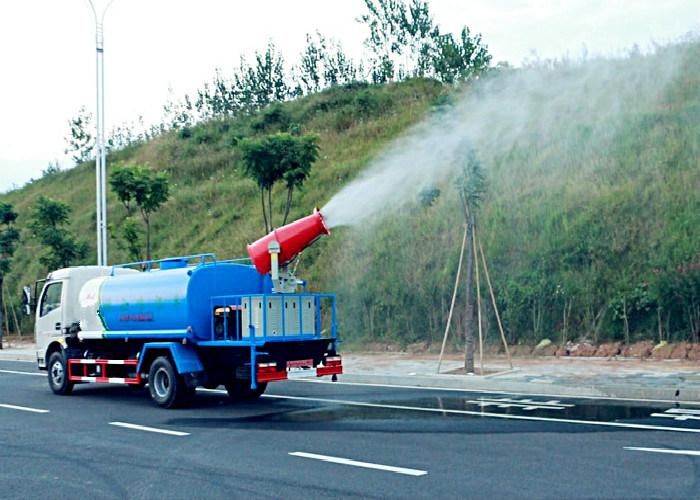

Product Show





Main Parts

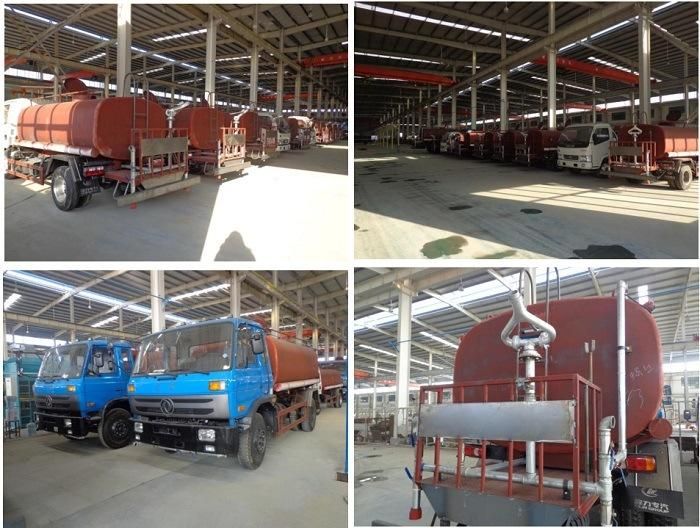

Factory Show


Company Introduction


Certificates




Our Overseas Exhibition


Contact Person
