• Model NO.：CLW5107CZB
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Medium
• Usage：Garbage Removal and Collection
• Condition：New
• Chassis Brand：Isuzu, Dongfeng, Foton, Sinotruk, JAC, etc.
• Campacting Ratio：0.6-0.8 Ton,Cbm
• Compression Ratio：3-4
• Compression Cycle Time：25-30 S
• Unload Garbage Time：No More Than 40 S
• Hydraulic Pressure：19.6,200 MPa,Kg
• Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
• Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
• Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.

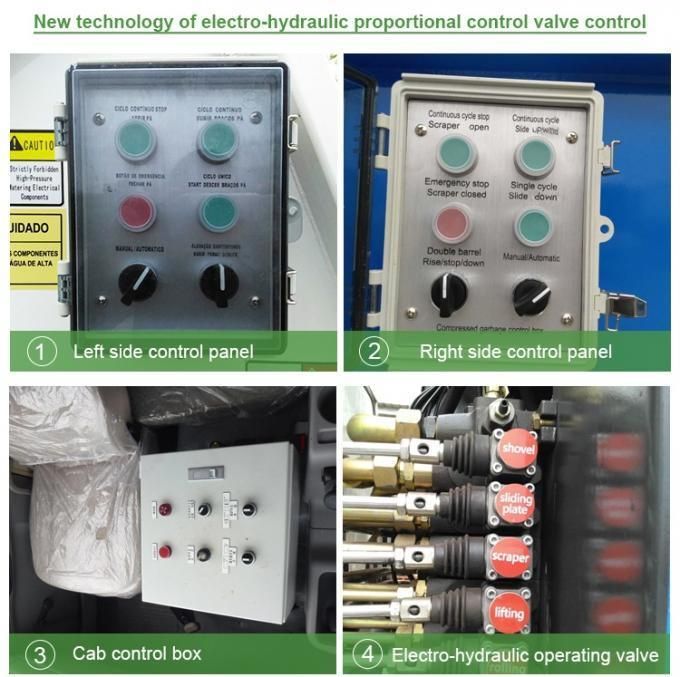

• Controlling Way：Manual and Electrical Control
• Color：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Naked Pack with Wax
• Specification：8350*2490*3250 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

 Chassis SpecificationTruck modelCLWCabDongfeng standard cab without A/CDriving Type4*2 Left hand drivingMax Speed (km/h)90Overall dimension(mm)8325×2490×3250GVW( kg)15800Mass in working order ( kg)9800Tank Capacity (L)15000LWheelbase(mm)4700F/R track base (mm)1910/1800F/R overhang (mm)1430/2420Approach/Departure Angel20/18(°)Tire10.00R20ClutchSingle-plate dry diaphragm spring clutchSteeringHydraulic steering with power assistanceGear box6 speedBridgeFront axle6000Rear axle10000EngineModelB190 33Fuel TypeDiesel fuelTypeWater-cooled four-stroke,, direct injection, turbochargedExhaust(ml)5900Max output power/rotate speed (hp /rpm )190Braking systemFull airEletric system24vUpperstructure  SpecificationLoading Circulation Time (s)25-30Rubbish Discharging Time(s)<=40Oil Pressure(mpa/kg)19.6/200Compressed Proportion1:3/1:2EquipmentEquipped with hermetic dustbin, hydraulic system and operating system
Automatic compress and uninstall, sewage can be collected by the dump tank.
Pressure is large, leakproofness is good, operation is convenient and security is dependablePower of movementHydraulic pumpMaterial of boxCarbon steel

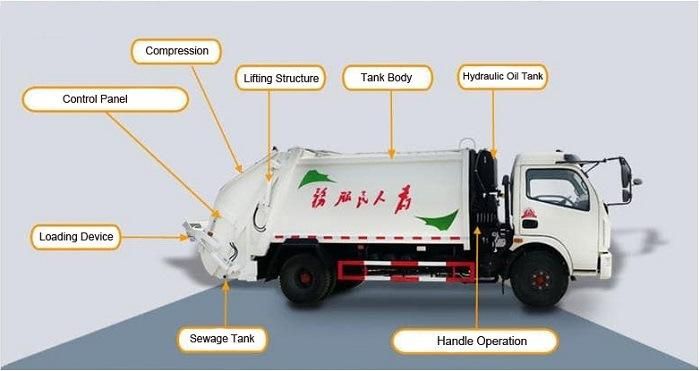

Product Details

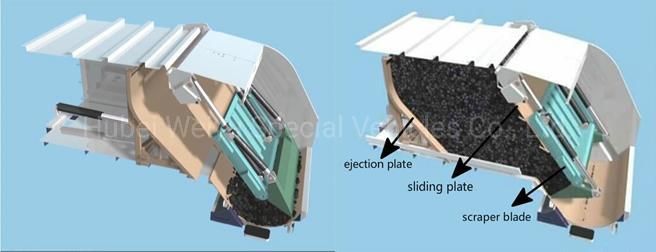

Compressing Working System

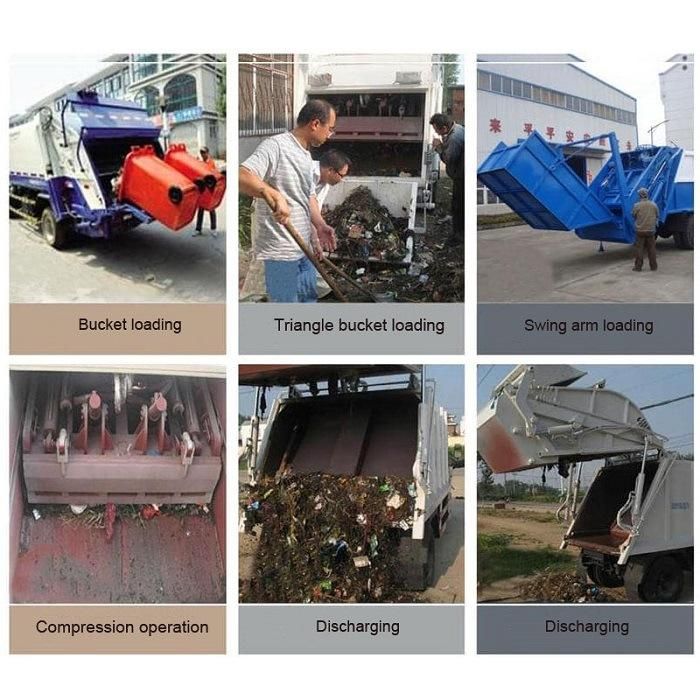

Loading and Unloading Process



Woking Situation
