• Model NO.：CLW0570BA
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＜4L
• Condition：New
• Chassis Brand：Dongfeng,Sinotruk,Foton,Isuzu,FAW, etc
• Drive Mode：4*2 4*4 6*4 8*4, etc.
• Curb Weight：2480(Kg)
• Engine：68HP
• Tank Material：Q235B and Stainless Steel for Optional
• Tank Size：3cbm; 5cbm; 8cbm; 10cbm; 12cbm; 15cbm
• Tank Capacity：3t; 5t; 8t; 10t; 12t; 15t
• Tank Thickness：4mm; 5mm; 6mm
• Water Pump Flow：20 Cbm,H
• Water Diversion Time：Less Than 15min
• Water Suction Depth：7m
• Water Sprinkle Width：15m
• Cannon Range：30m
• Warranty：1 Year
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：5500*1700*2100 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5500*1700*2100(mm)Gross Vehicle Weight4015(Kg)Curb Weight2480(Kg)Chassis SpecificationChassis BrandFOTON ForlandDrive model4*2CabinSingle, Left Hand DrivingNumber of Passengers3 (2 in cabin, 1 in working platform)EngineModel4A2-68, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower50KW/68HPEmission standardEURO 3Displacement2270(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base2800(mm)Front/Rear Axle Loading1800/3000(Kg)Tire6.00R15, 6pcs + 1 spare tireMax Driving Speed90(km/h)Superstructure SpecificationWater TankerDimension2800*1200*800(mm)MaterialQ235B carbon steelTanker volume3000LThickness of Tanker4mmWater Pump Materialcarbon steelVertical suction7mSprinkling width15mRange of Water Gun30mPump Flow20m³/hRange of Water Pump90mOther ConfigurationHigh quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc.OptionsCaution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc.

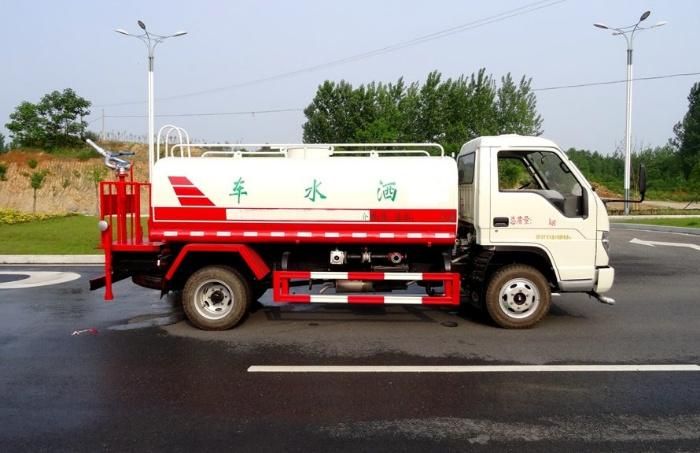

Product Show

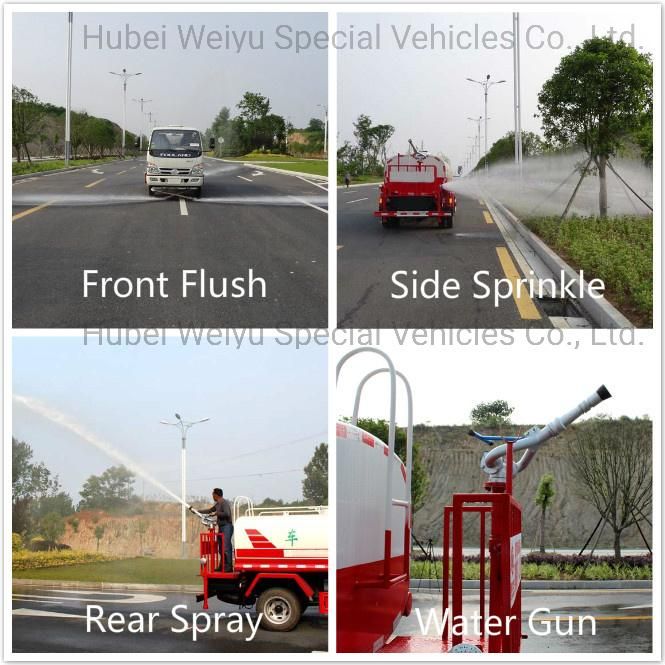

Work Scenarios

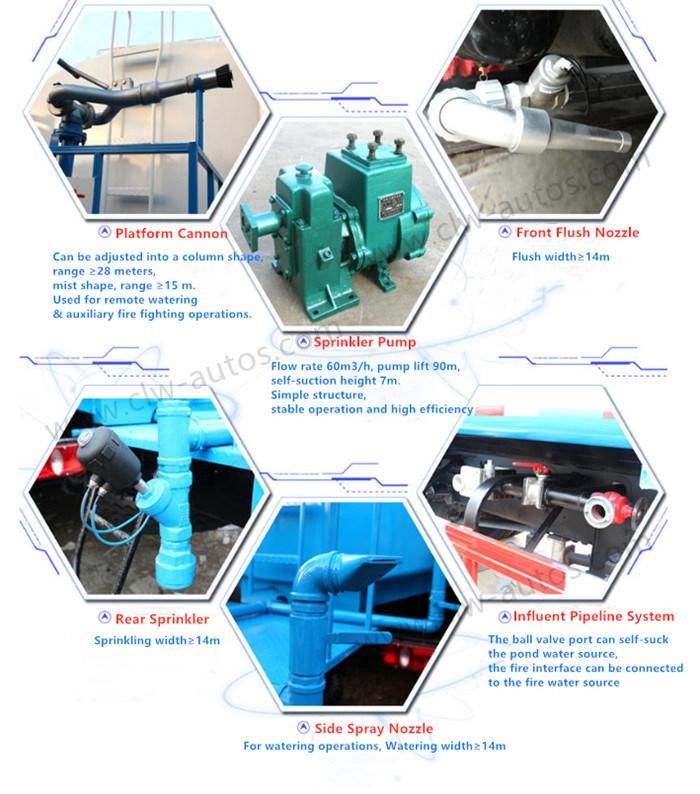

Main Parts

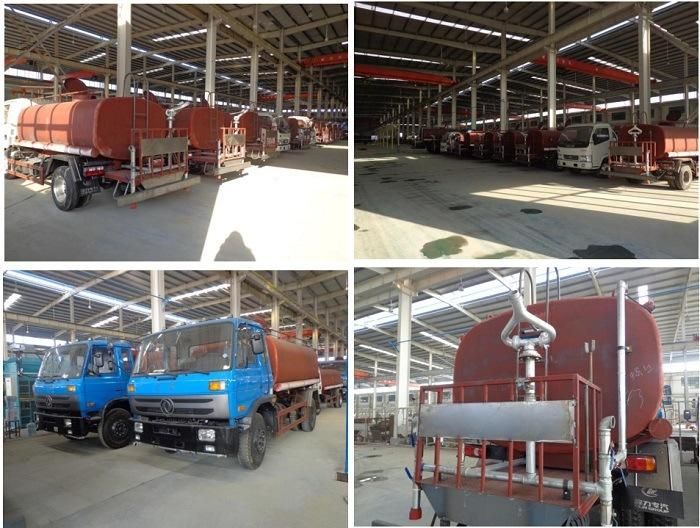

Factory Show
