• Model NO.：CLW5089PBG
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Isuzu, HOWO, etc.
• Traction Type：4*2
• Cabin：4 Doors with A,C
• Fire Pump：CB10,30
• Lifting Lamp：4X1000W, Height More Than 7.5m
• Material of Tank：Carbon Steel
• Flow Rate of Fire Pump：30L,S
• Suction Depth：Deeper Than 7m
• Flow Rate of Fire：30L,S
• Tanker Capacity：3000L
• Fire Monitor Range：55m
• Fire Monitor Rotation Angle：360 Degree
• Warranty：1 Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：3t, 4t, 5t, 3cbm, 4cbm, 5cbm, 3000L-5000L
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ChassisModelParametersOverall Dimension7542×2200×3000mmGVW10000kgEngine Power139kWWheelbase4175mmDriving TypeIsuzu, 4×2Max.speed110km/hEmission Standard5193mlPassengers3+3Fire pump rated flow30L/s@1.0Mpawater monitor rated flow30-50L/s@1.0MPaWater monitor rangeWater range≥55mPassengers3+3Approach angle≥21°Departure angle≥13°Fire performance Water tank capacitywater3000kgFire pump modelCB10/30Fire pump performance30L/s, 1.0MPathe installation site of fire pumprearThe quantity of fire pump water outlet2Pressure gauge0-1.6 MpaVacuum gauge-0.1- -1 MPaWater monitorMonitor Range≥55mInjection pressure1.0Mpa Depression/Elevation angle-30-+70°Turning angle 360°

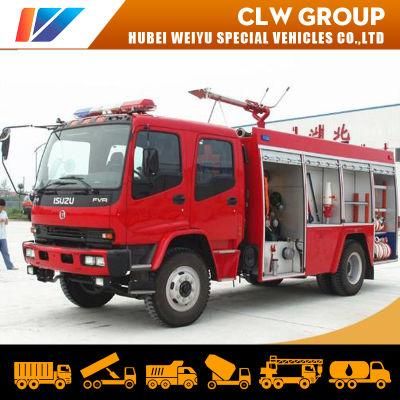

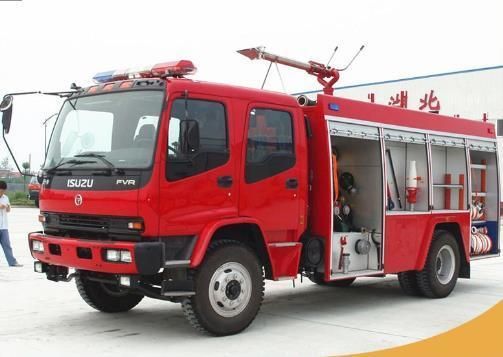

Reference Photos

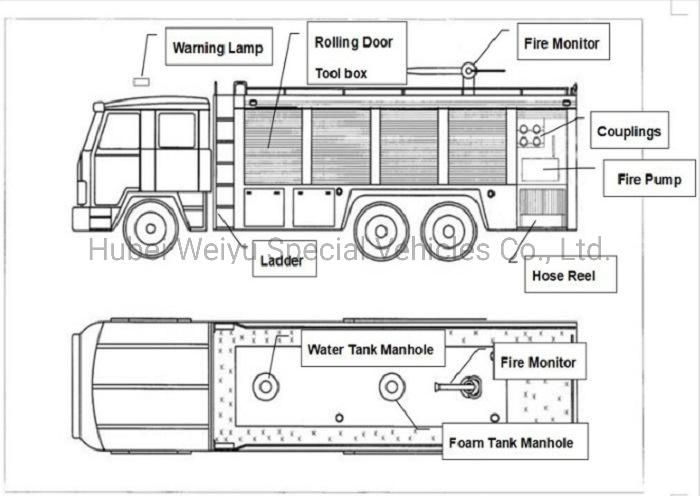

Main Structure Diagram


Main Tools of Fire Fighting Truck


Production Show

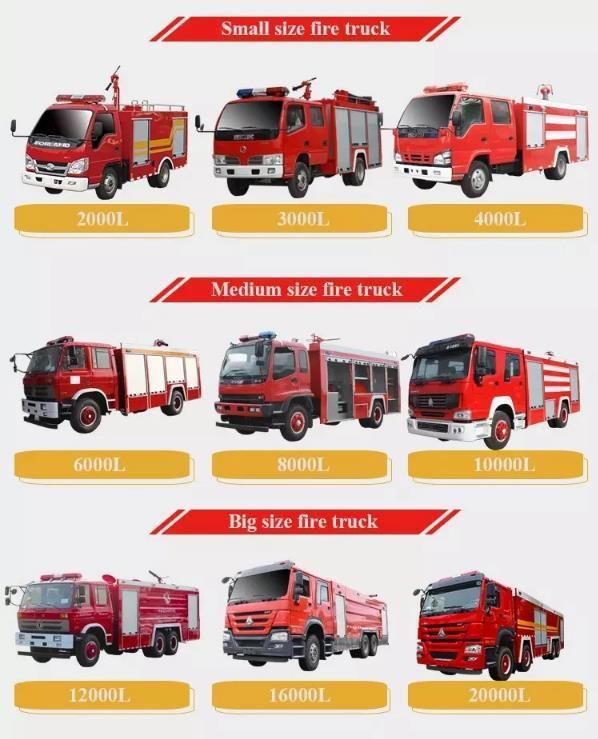

Different Capacity of Fire Fighting Truck


Certificates


Our Overseas Exhibition
