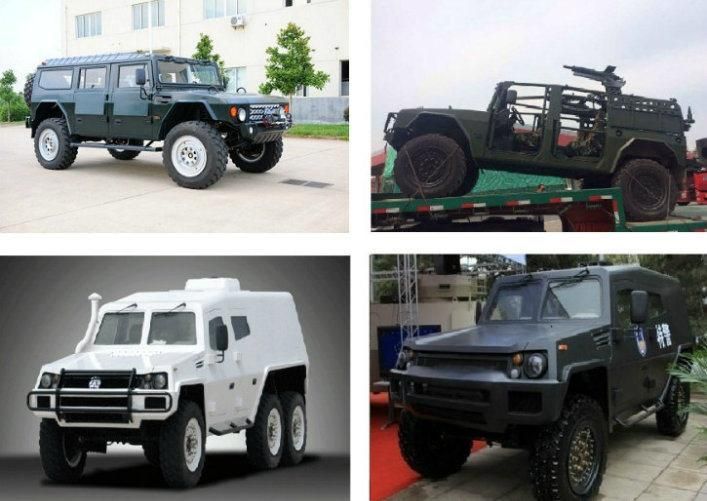

4X4 Military Armored Lightning Protection Assault Vehicle
QINGDAO DAWNSHINE IMPORT AND EXPORT CO., LTD.- Fuel：Diesel
- Certification：ISO9000, CCC, CE
- Emission Standard：Euro 5
- Condition：New
- Wheel Base：3390mm
- Engine：3.8L
Base Info
- Model NO.：lightning protection assault vehicle
- Power：125kw
- Track：1914mm
- Payload：800kg
- Main Fuel Tank：105L
- Auxilary Fuel Tank：55L
- Wall Crossing：550mm
- Side Slope：>40%
- Turning Diameter：14m
- Transport Package：Nude Packing

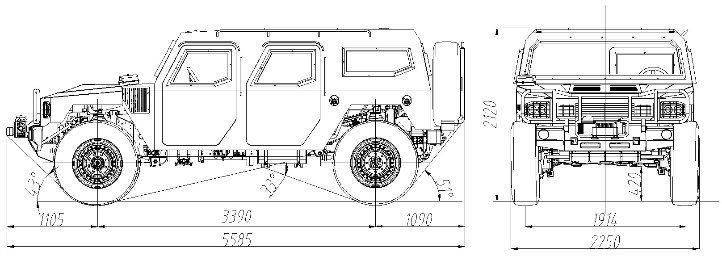

- Specification：5585*2250*2230 mm
- Trademark：XL
- Origin：China
- Production Capacity：15units,Month
Description
XL Lightning Protection Assault VehicleCrew 5 Climing Ability % 100 Length mm 5585 Cruising Range km 600 Width mm 2250 Temperature °C -20~46 Hight (full loaded) mm 2230 Altitude m >=3500 WheelBase mm 3390 Environment Humidity % >=95 Track mm 1914 Engine 3.8L GVW kg 6500 Cylinder In-line Four Payload kg 800 Power Kw 125 Min. Ground
Clearance mm 420 Clutch Hydraulic Operated With
Pneumatic Assist Ramp Angle ° 33 Transmission Intergrated gear box &
transfer box Turning Diameter m 14 Gear Box 6 speed manual Approach Angle ° 43 Transfer Box 2 speed,Inter-Axle Differential,
Lockable Departure Angle ° 51 Axle Portal Axle,Wheel Hub Drives,
Differential Locks Vertical Barrier
Crossing mm 550 Suspension Coil Spring,Telescopic Shock-Absorbers Side Slope % >40 Steering Power Steering Wall Crossing mm 450 Wheel&Tyre 335/80R20(365/80R2.5)w/CTIS Trench Crossing mm 750 Brake System Pneumatic-Hydraulic, Disc Brake Fording Capability mm 1000 Parking Brake Central Parking Brake,ABS Max. Speed km/h 120 Electrical System 24V Main Fuel Tank L 105 Towing Towing Hook, Pneumatic&
Electirc Supply Auxilary Fuel Tank L 55 Optional Electirc Winch,A/C,PTO,

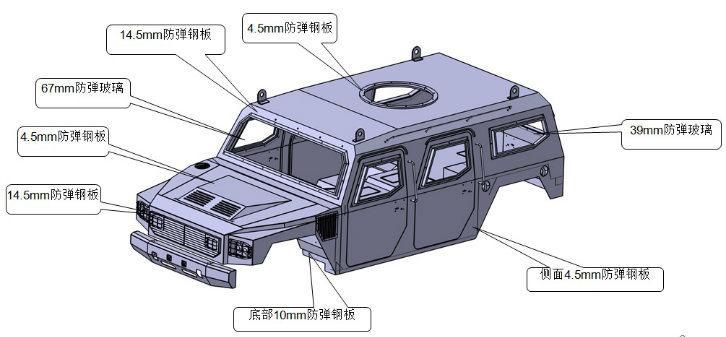

Exhaust Brake Front protection ability 7.62 mm AP Side and rear protection ability 7.62 mm Ordinary projectile Bottom protection ability Infantry mine Top protection ability Shrapnel

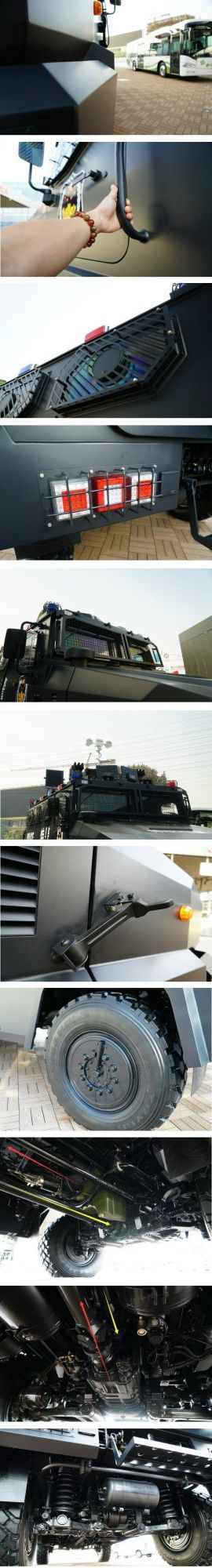

Details
Related Products
Our Service
Clearance
Pneumatic Assist
transfer box
Lockable
Differential Locks
Crossing
Electirc Supply
Exhaust Brake
Details
Related Products
Our Service
1.. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different brand of trucks can be provided with competitive price.
