• Model NO.：BJ1069VCJEA-D
• Bearing Capacity：Small
• Car Type：Van
• Condition：New
• Product Name：3-5 Ton Refrigeration Box Truck Used Refrigerated
• Freezer Brand：Thermo King, Hanxue, Korea Brand etc
• Loading Capacity：3 Tons, 4 Tons, 5 Tons
• Material Type：8cm Middle Polyfoam Insulation
• Body Material：Strong Fiberglass Inner and Outer Wall
• Truck Brand：Dongfeng FAW Foton Sinotruk JAC Isuzu
• Truck Drive Wheel：4*2 4*4 6*2 6*4 6*6 8*4 8*6
• Emission Standardruck：Euro II
• Certifications：ISO9001 CCC ASME
• Applications：Freezer Food, Fruit, Beer, Fish, Vege
• Transport Package：Nake Package RO-RO Ship Container Ship
• Specification：11980*2600*3620mm
• Trademark：Chusheng
• Origin：China
• HS Code：8705909990
• Production Capacity：366660

Item No.ParametersOverall Dimension6995x2310x2570 mmGross Vehicle Weight7345kgCurb Weight3550kgLoading Weight4895KgWheel Base3800mmFront/rear Tread1120/2075 mmApproach/Departure Angle21/20degreeFront Axle2850kgRear Axle4645kgGearboxLC5T26, 5 speed, manual control.Engine4DX22-110, Diesel Engine, 4 in-line cylinderEngine horsepower108HP EURO IIDisplacement3.66 L (Diesel)Full loading Fuel
Consumption RateMaximum 215 g/kW.hMax Driving Speed90 km/hCabin2 Passenger allowedTire8.25-16 LT (7 pieces)Carriage Body Size:5100x2100x1400mmBody MaterialStrong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree)LOGOCompany Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo)

Advantages of Insulated Freezer Van body
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside
  and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm
   thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional
  according to which kinds of goods the truck transport, with perfect heat preservation, box open model:
  Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,
   hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple
   structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,
   easy installation and maintenance and other advantages.

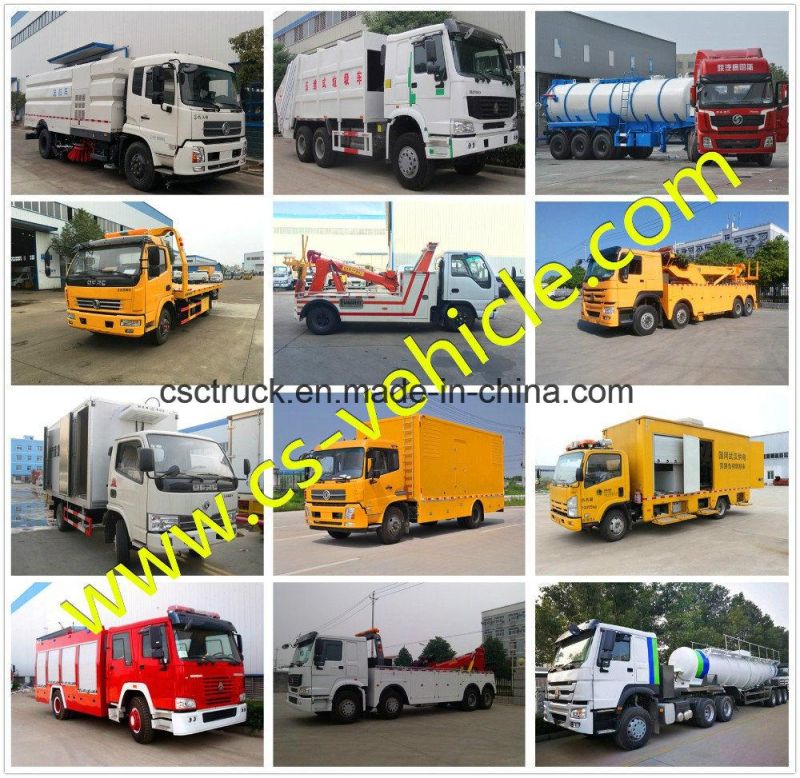

Relevant Products

1.Water Truck  2.Insulation Truck and Milk Truck 3.Sewage Suction Truck  4.Garbage Truck

5.Manlift Truck/Aerial Platform Truck  6.Truck with Crane 7.Fuel Truck/  8.Chemical Truck

9.Bulk Cement Truck  10.Concrete Mixer Truck  11.Fire Truck  12.Dump Truck

13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed

16.Tractor,   17.LPG Truck; 18.Trailers

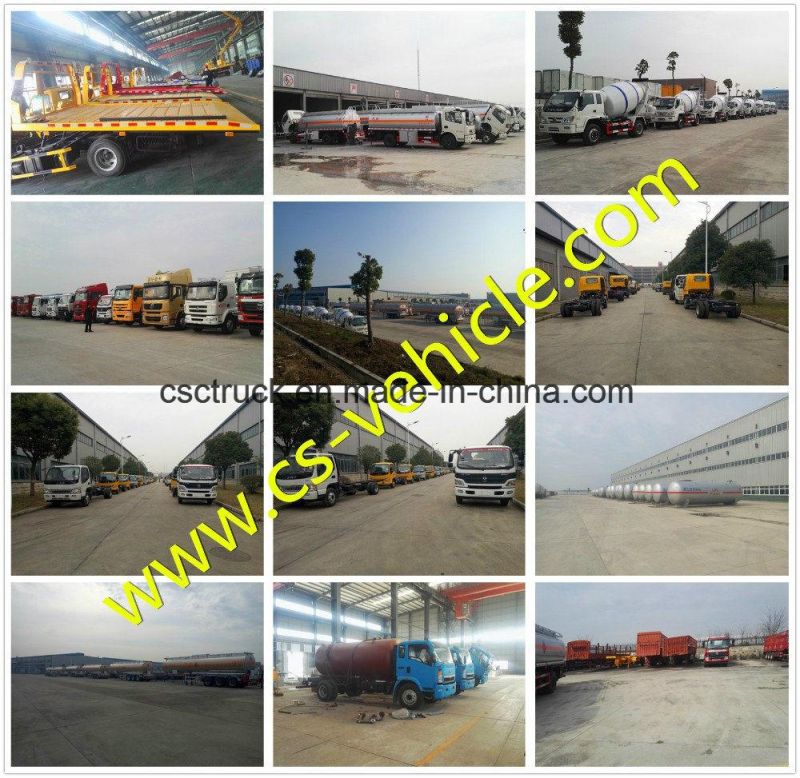

Company Information

 1.     Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
        manufacturer with very professional experience in special automobile field for more than 15 years in China.
        We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.     Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated
       Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck,
       Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation
       Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.     We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru,
       Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines,
       Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced
equipments, strict inspection before delivery, excellent packing and shipping team.
