• Model NO.：ZZ1257M4647C
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＜4L
• Condition：New
• Product Name：Water Truck Water Tank Truck Water Sprinkler Truck
• Applications：Used for Drinking Water Transport, Watering Sprink
• Equipments：Flushing, Rear Sprinkle, Side Spray Working Plat
• Tank Thickness：5mm
• Tank Materials：Q235 Carbon Steel
• Key Words：Water Truck Water Bowser Truck Water Spray Truck
• Color：Red White Optional
• Emission：Euro 2 Euro 3 Euro 4
• Drive Type：4X2 6X4 6X6 8X4
• Chassis Brand：Sinotruk Dongfeng Foton Isuzu etc
• Transport Package：Nake Package Used RO-RO Ship Container Ship
• Specification：Q235 Carbon Steel 5mm
• Trademark：Chusheng
• Origin：China
• HS Code：8701200000
• Production Capacity：180001

12000liters 4X2 water tank truck water spray tryck water truck for sale

Tank volume(m³)

12~15

Chassis model

LZ5161XXYM3ABT

Overall dimension(mm)

8520×2480×3000

Brand name

Dongfeng Chenglong

Gross weight(Kg)

15600

Wheelbase(mm)

4700

Payload(Kg)

9185

Drive type

4*2

Curb weight(Kg)

6285

Fuel type

Diesel

Axle No.

2

Emission standard

Euro3/Euro4/Euro5

Cab seats(person)

2,3

Transmission

6-speed with over drive

Approach/departure angle(°)

26/12

Tires No.

6

Axle load (Kg)

5600/10000

Tire specification

9.00-20

Front/rear hang(mm)

1340/2480

Max speed(km/h)

90

Front/Rear track(mm)

1810/1800

Steel spring number

8/9+5

Engine parameters

Engine model

Engine  manufacturer

Displacement (ml)

power(kw)

YC4EG160-40

Guangxi yuchai machinery co., LTD

4730

118

 Chassis Description

1.Dongfeng Chenglong 4x2 chassis, white row and half cabin with A/C, left/right hand drive optional.
2. 4.7m wheelbase,160HP Yuchai ngine, six speed gear box, front brige 4.7T/ rear brige 9T, 9.00-20 tire.
3.Steam brake and Power steering.

Standard Equipment

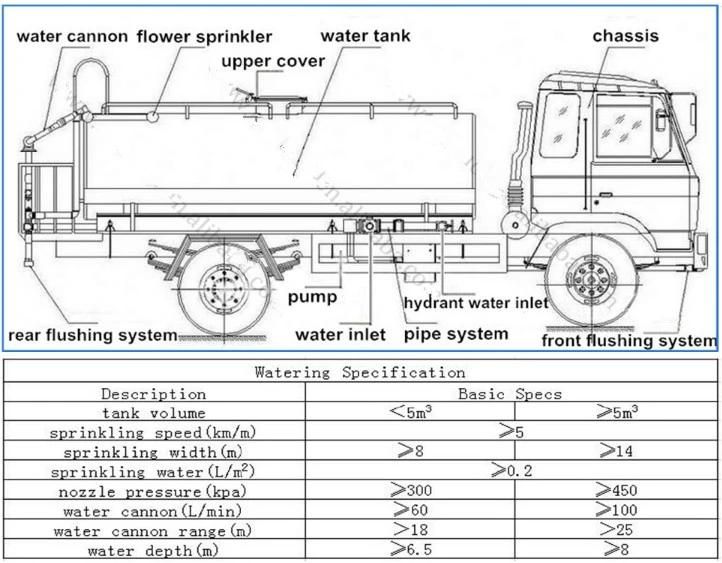

1. Tank volume: 12~15m³, elliptical tank is made by 5-6mm special steel plate, with high power water pump(Japan technology).

Vertical suction>8m, Sprinkler width>14m;

Water cannon gunshot>30m, Flush pressure:250-450KPa;

Time of drawing water :≥5minutes Pump capacity:1000 L/minute;

2. Equipped with front flushing, rear sprinkle, side spraying and rear working platform. A greening water cannon is installed on the rear working platform(The greening water cannon can be rotated 360°, and can adjust water to high or low or spraying like columnar, heavy rain, middle rain, vaporific, drizzle).

3. Outfited with pipeline, self-flow valve, fire coupling, self-priming pump, filter screen and water level gauge.The water truck can suck water into tank from pond or hydrant on urban street directly.
