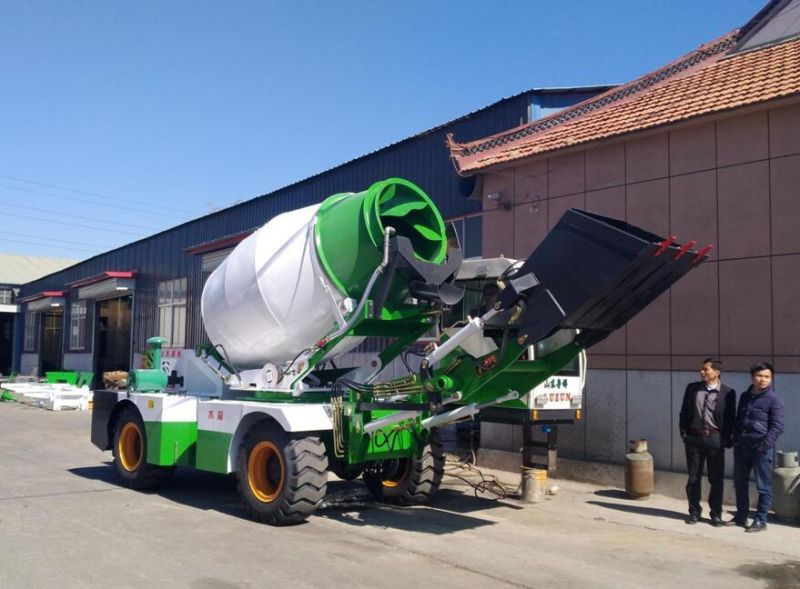

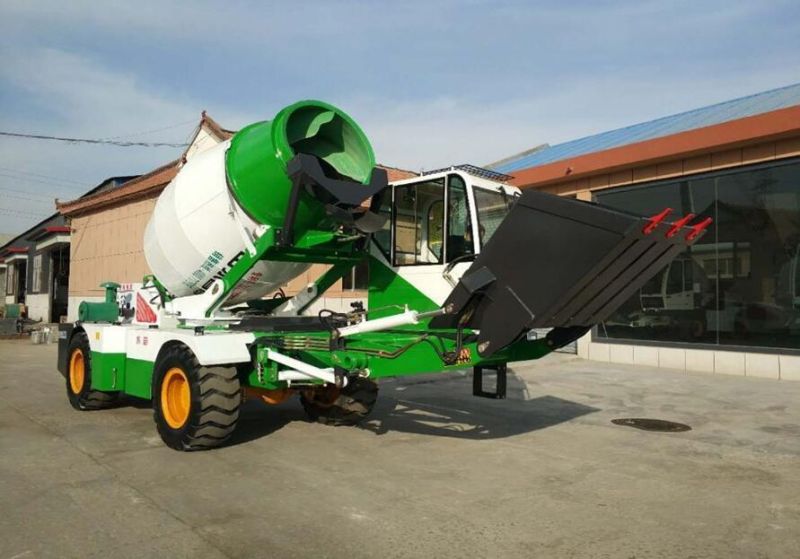

3.5m3 Mobile Self Loading Concrete Mixer in Africa
Mafal (Shanghai) Machinery Limited- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Transmission Type：Automatic
- Emission Standard：State four
- Displacement：9
- Payload：20T
- Fuel：Diesel
Base Info
- Model NO.：EP3.5
- Drive Mode：4X4
- Maximum Horsepower：<200hp
- Condition：New
- Disel Engine：Yuchai
- Number of Cylinder：4
- Generator：28V-500wa
- Battery：2*12V
- Steering：2-Wheel Steering
- Wheel Drive：4 Wheel
- Transport Package：Nude
- Specification：50CBM
- Trademark：MAFAL
- Origin：Jinan
- HS Code：87054000
- Production Capacity：200units
Description
Name
Item
Specification
Vehicle
Net
7500kg
Gross
15000kg
Transmission
Hydraulic
4*4
Brake
Hydraulic Brake
Front and Rear Independent System
Chassis
Off Road, CARRARO axle
Distance of Front/Rear Wheelbase
1905mm
Wheelbase
2155mm
Loader
Capacity
0.6m³
Control
Hydraulic
Tile Angle
30%
Speed
High
0-20km/h
Low
0-9km/h
Min.Turning Radius
6.5m/R
Tire
16/70-20
Dimensions(L*W*H)
7011*2441*3310(MM)
Diesel Engine
Type
4BTA3.9-C110
Rated Power/rpm
82KW/2200rpm
Max.Torque/rpm
460N.m/1400rpm
Cylinder
4-cylinder/3.9L
Bores
102mm
Cooling Type
Water cooling
Fuel Consumption
207g/kw.h
Starter
Electric
Emission Standard
China II
Mixing Drum
Drum Capacity
3.5m³,14m³/hr.
Bank Angle
16°
Rotation Speed
10-16r/min
Angle of Drum Rotation
no less than 270°
Chute
Swing Angle
no less than 60°
Angle Control
Hydraulic
Size
Long:106cm
Short:40cm
1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, Ghana,Algeria,etc.
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material
Other questions, please contact me directly!!
