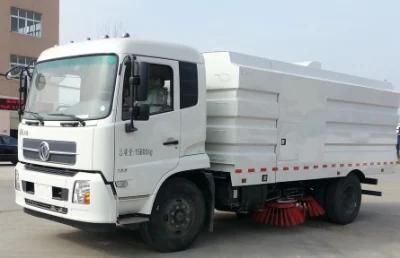

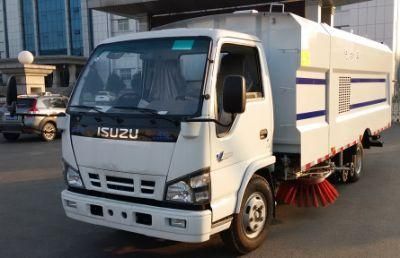

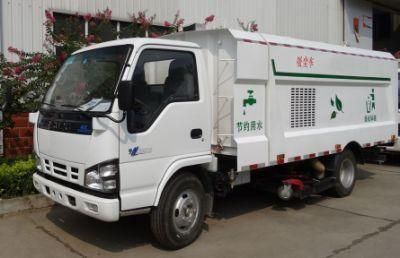

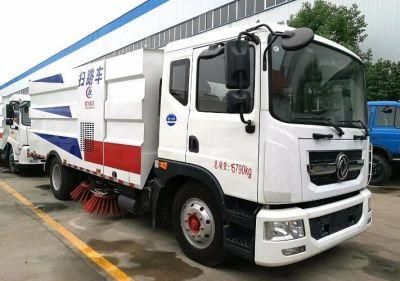

• Model NO.：CLW5162
• Use：Stainelss Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Purpose：Road Sweeping,Street Cleaning
• Sweeping Width：3.5meter
• Dust Container：7cbm 7m3 7000L
• Brush：2 Brushes, 1 at Each Side
• Auxiliary Engine：Cummins Engine 170HP
• Garbage Container Sweeping System：Automic Water Cleaning
• Max. Suction Particle：Diameter 120mm
• Sweeping Speed：13000m2,H ~ 52000m2,H
• Water Container：9000liters 9000L 9cbm 9m3
• Function：Road Sweeping,Road Cleaning
• High Pressure Cleaning：20meters High Pressure Tube
• Suction Pan：1 Unit with 2 Hose
• Garbage Discharging：Tipping System,Dumping System
• Brush Function：Automatic Retreating for Collision
• Transport Package：Naked Packing
• Specification：Water 9000liters Dust Bin 7cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909990
• Production Capacity：500 Unit,Month

 CabinDriving type 4x2  RHD
 single row,with two seat,with A/CVehicle Main DimensionsOverall dimensions (L x W x H)mm8580×2490×3100Wheel base  (mm)5000Wheel track  (front/rear) (mm)1880/1860Approach/Departure angle(°)20/13Weight in KGSTare Weight11350payload4500Overall Weight15800Front axles loading capacity1x5800Rear axles loading capacity1x10000EngineBrandCumminsModelB170 33Horse Power(HP)170HPEmission standardEuroIIIGearboxMechanical 5 forwards & 1 reverse with Synchronizer,Manual TypeSteeringRight hand driveTire9R22.5,6 tires with one spareDriving Type4X2 Rear Axle DriveSuspension TypeSteel Plate SpringSteel Spring No. (F/R)8/10+7Brake TypeDouble circuit pneumatic brake, drum typeBraking Length(Full Load 30km/h)≤10mMax. driving speed(km/h)99Min. Radius of Turning Circle(m)8Max. Grade-ability≥30%Fuel Consumption of EngineDriving(L/100km)Working(L/h)Working(L/10000cbm)≤12≤6≤3Special Function PartsWater tank7000 Liters,4mm Stainless SteelGarbage Hopper9cbm,4mm Stainless Steel,with high pressure self-cleaning device for cleaning garbage hopperCleaning Width (mm)2800~3200Sweeping Speed(km/h)3~15 km/hWashing speed(km/h)15~20km/hMax. Cleaning Capacity48000m2/hSuction CapacityDensity(g/cbm)2.0Weight(kg)1.5Suction granularity(mm)≥100Dumping angle≥45°Sweeping Efficiency≥96%Working Noise(db)<88 according with GB7258 regulation
