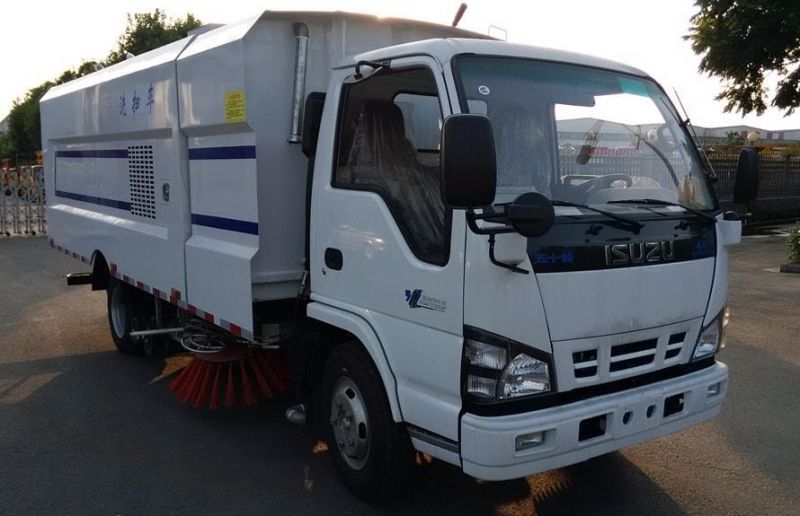

• Model NO.：CLW5100A8GB
• Use：Stainless Steel 304
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Sweeping Speed：3-20 Km,H
• Maximum Cleaning Capacity：60000 Cbm,H
• Water Tank：4cbm, Stainless Steel 304
• Motor：SANYO Brand
• Operation Manual：1 Set for Each Customer
• Maximum Sweep Width：3.5m
• Engine：Isuzu 120HP
• Dust Tank：5cbm, Stainless Steel 304
• Color：as Per Customer Requirements
• Water Pump：German Imported High Pressure Water Pump
• Auxiliary Engine：Cummins 140HP
• Control Switch：Schneider Brand
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：7160*2250*2750 (mm)
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8701909000
• Production Capacity：500 Unit,Month

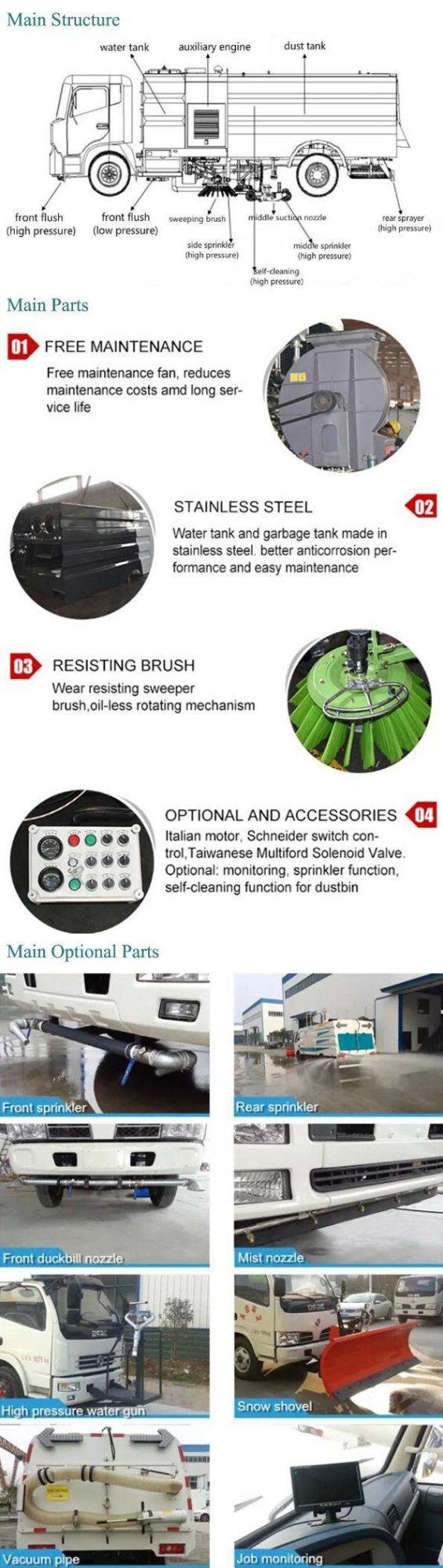

General Technical ParametersOverall Dimension7160X2250X2750 (mm)Gross Vehicle Weight7300(Kg)Curb Weight2110(Kg)Chassis SpecificationChassis BrandISUZUDrive model4*2CabinSingle Row, LHD, with air condition.Number of Passengers2EngineModelISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.Power88KW/120HPEmission standardEURO 4Displacement2999(ml)Fuel typeDieselGearboxISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3815mmFront/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/14(°)OverhangMechanical Suspension, 8/6+5Tire7.00R16 Steel wire tyre, 6pc with 1 spare tireSweeping Speed3-20 km/hUpperstructure SpecificationTankWater TankMaterialStainless steel 304Volume4(cbm)Dust TankMaterialStainless steel 304Volume5(cbm)Auxiliary EngineModelCumminsPower140HP/103KWMaximum sweep width3.5mMaximum cleaning capacity60000m³/hStandard Configuration1. Equipped with 1 sweeping brush on each side, and middle suction nozzle;2. Equipped with Sanyo Motor;3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank);4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump;5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor;6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights;7. Equipped with indoor monitor in reverse and wash state;8. Equipped with 18 meters high pressure rinsing reel, etc.9. User's operation manual 1 set.Optional ConfigurationSnow shovel, foggy gun, aerial work platform, color is optional, etc.












Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
