• Model NO.：CLW5082TQZD5
• Brand：SINOTRUK
• Condition：New
• Chassis Brand：Sinotruk
• Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
• Cabin：2~3 Personn with A,C
• Engine：143HP
• Wheel Base：3280mm
• Wrecker Type：One-Towing-One, One-Towing-Two
• Truck Overall Size：5995*2300*2350mm
• Max Lifting Weight：3tons; 4tons; 5tons
• Max Towing Weight：3tons; 4tons; 5tons
• Hydraulic System：Famous International Brand
• Winch Rope：25m, 25meters
• Warranty：1 Year
• Type：Flatbed Truck
• Purpose：Road Saving, Vehicle Rescue
• Flatbed Size：4200X2320
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：3T, 3ton, 3tons, 4t, 4tons, 4ton, 7tons
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical SpecificationOverall Dimension5995x2300x2350(mm)Gross Vehicle Weight4495 (Kg)Curb Weight3790(Kg)Chassis SpecificationChassis BrandSinotruk HowoDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower105KW/143HPEmission standardEURO2 or 3Displacement3856(ml)Fuel typeDieselGearbox6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3280(mm)Front/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/12(°)Tire7.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension4200*2320(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity4000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.

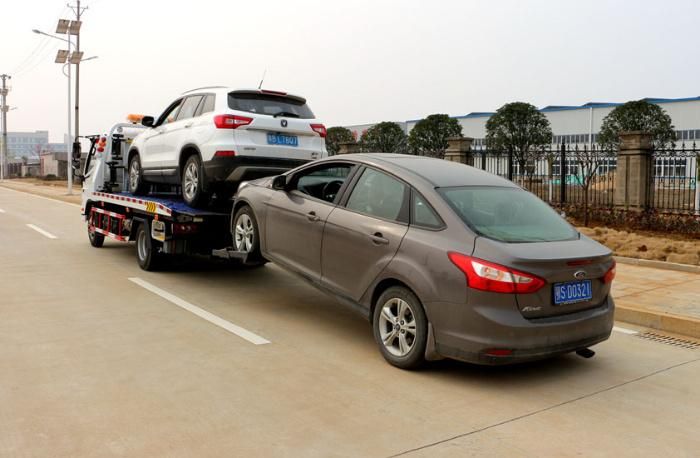

Reference Photos


Main Structure Diagram
