• Model NO.：CLW1451GXH
• Drive Wheel：4x2
• Hoesrpower：190HP
• Condition：New
• Brand：Isuzu
• Hand Driving：LHD
• Material：Carbon Steel
• Loading Capacity：10000L,10m3,10cbm
• Vacuum Pump：Jurop
• Usage：City Sanitation
• Anti-Overflow Valve：Yes
• User Manual：Yes
• Pressure Gauge：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow：Yes
• Logo：as Customer′s Request
• Warranty：One Year
• Loading Way：Self Unloading
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：10000L,10m3,10cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

The Parameters of ISUZU 10cbm Sewage/fecal Suction Truck

OverviewNameSewage Suction Truck/fecal suction truckDimension(LxWxH)8990X2500X3380(mm)  Total Mass16050KgRated Payload8000KgKerb Weight8050KgPassenger 3Approach/Departure Angle19/15The Parameters of Chassis Manufacture/ModelISUZU, QINGLING/QL5160CCY9QFRJDriving Type4*2 left/right hand driveWheel Base5500 mmGearboxSix speed lever with five speed forward and one reverse, manualFront/Rear Track1506/1466(mm)Tyre7.00-16The Number of Tyre6+1(spare tyre)Front/ Rear Suspension1032/1658(mm)  Leaf Spring Number8/9+5, 6/8+4The Paremeters of EngineManufacturer/ModelISUZU/4HK1-TCG40Rated Power190hp/139kwFuel TypeDiesel oilDisplacement/Capacity5193mLEmission StandardEuro4Cylinder510N.mVelocity2600rpmThe Parameters of Equipment Tank Capacity8-10m3Vacuum Pump Rotation Speed800r/m-1400r/mMax. Suction Lift>6mVacuum>500mmHgRotation Direction ClockwiseTime for full sucktion<5minCommon Accessories

Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.

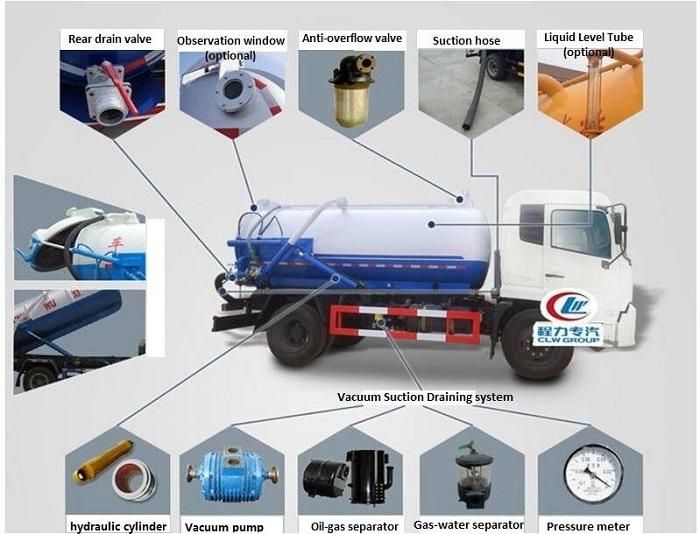

Product Diagram

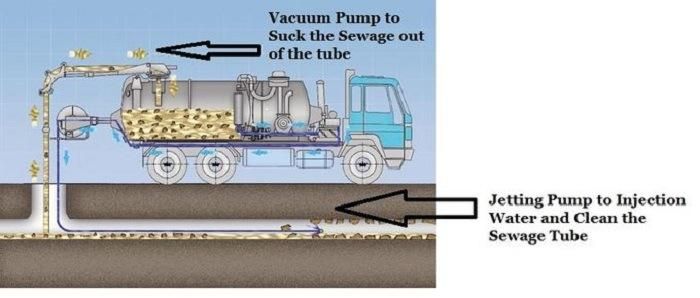

Working Diagram

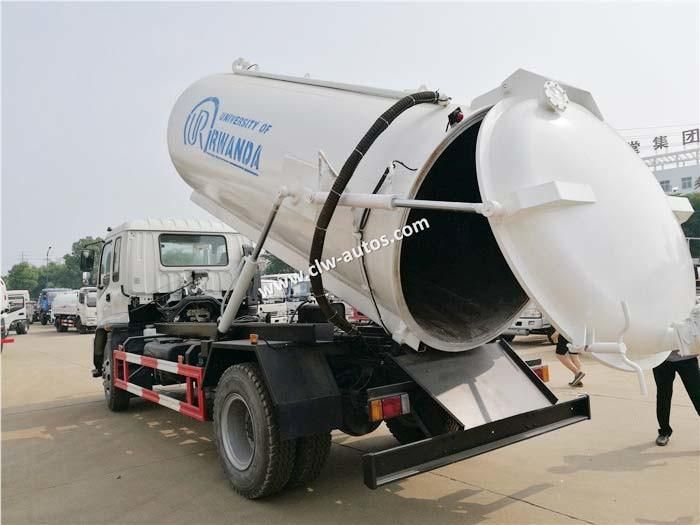

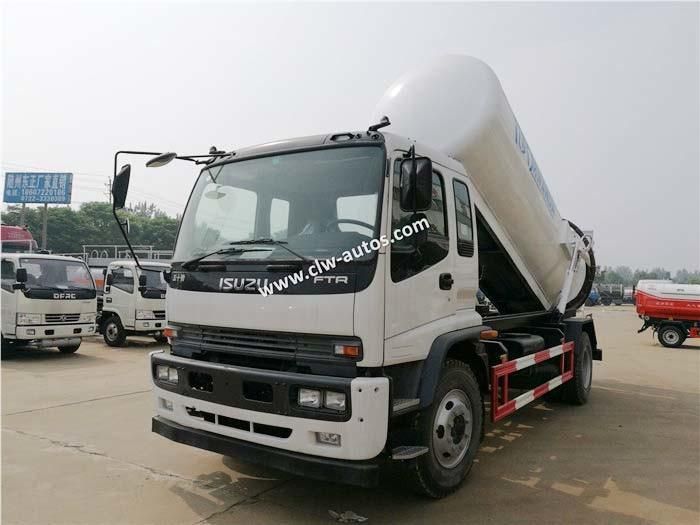

Working Photos
