• Model NO.：CLW5238uv
• Drive Wheel：4x2
• Hoesrpower：190HP
• Condition：New
• Brand：Isuzu
• Hand Driving：LHD
• Material：Carbon Steel
• Loading Capacity：10000L,10m3,10cbm
• Vacuum Pump：Jurop
• Usage：City Sanitation
• Anti-Overflow Valve：Yes
• User Manual：Yes
• Pressure Gauge：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow：Yes
• Logo：as Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：10000L,10m3,10cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：100 Unit,Month

The Parameters of ISUZU 10cbm Sewage/fecal Suction Truck

OverviewNameSewage Suction Truck/fecal suction truckDimension(LxWxH)8990X2500X3380(mm)  Total Mass16050KgRated Payload8000KgKerb Weight8050KgPassenger 3Approach/Departure Angle19/15The Parameters of Chassis Manufacture/ModelISUZU, QINGLING/QL5160CCY9QFRJDriving Type4*2 left/right hand driveWheel Base5500 mmGearboxSix speed lever with five speed forward and one reverse, manualFront/Rear Track1506/1466(mm)Tyre7.00-16The Number of Tyre6+1(spare tyre)Front/ Rear Suspension1032/1658(mm)  Leaf Spring Number8/9+5, 6/8+4The Paremeters of EngineManufacturer/ModelISUZU/4HK1-TCG40Rated Power190hp/139kwFuel TypeDiesel oilDisplacement/Capacity5193mLEmission StandardEuro4Cylinder510N.mVelocity2600rpmThe Parameters of Equipment Tank Capacity8-10m3Vacuum Pump Rotation Speed800r/m-1400r/mMax. Suction Lift>6mVacuum>500mmHgRotation Direction ClockwiseTime for full sucktion<5minCommon Accessories

Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.

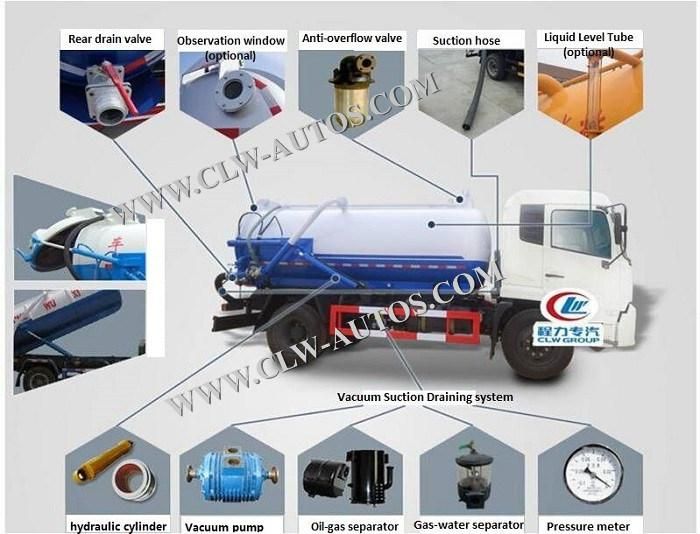

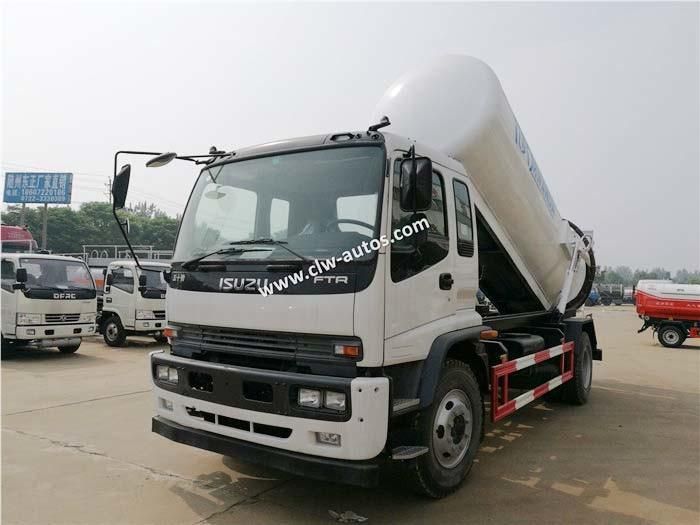

Product Diagram

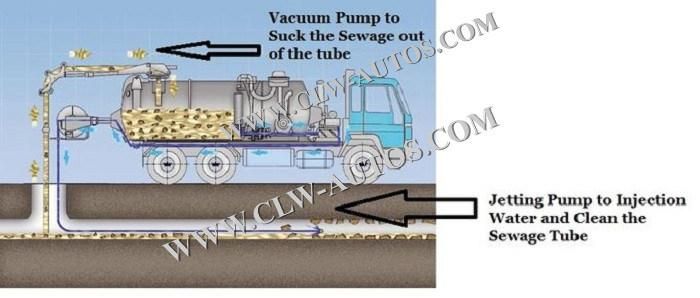

Working Diagram

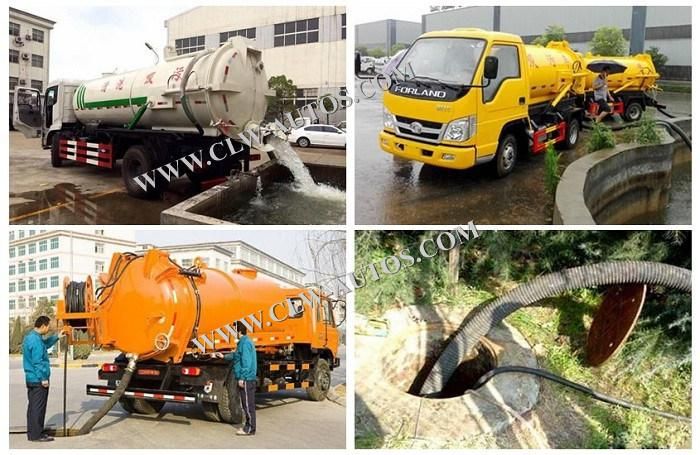

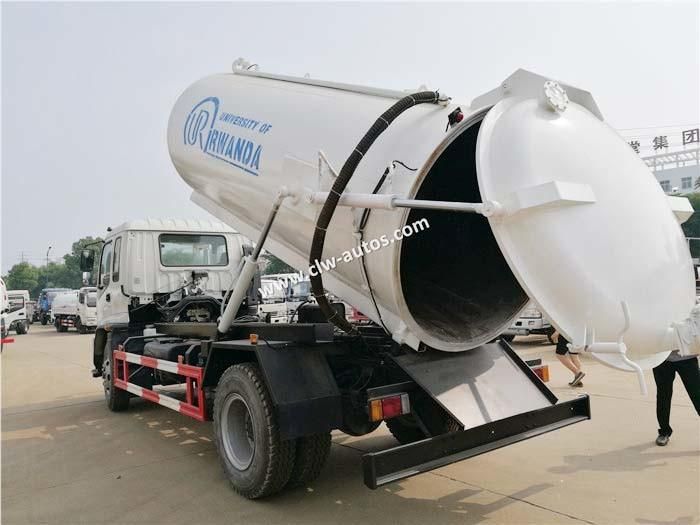

Working Photos





Other Special Truck Series


Company Introduction





Overseas Exhibition and Local Support



Customer Visiting


Shipping methods
