• Model NO.：CLW5698yv
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＞8L
• Condition：New
• Loading Capacity：6ton, 6tons, 6000liters, 6000L, 6cbm
• Material：Carbon Steel
• Tank Thickness：4mm, 5mm, 6mm
• Wheel Base：3360mm
• Horsepower：116 HP
• Water Pump：China Famous Brand
• Water Pump Flow：20 Cbm,H
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• Cannon Range：360 Degree, 30 Meter
• Tire：7.00-16
• Operating Video：Yes
• User Manual：Yes
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6ton, 6tons, 6000liters, 6000L, 6cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x2ChassisBrandDongfengCurb weight(kg)3380  kgLoading weight(kg)3850 kgGross weight(kg)7360  kgWheelbase(mm)3950 mmDimensions(mm)6000*1900*2300 mmFront Loading Capacity (Ton)1.8 Rear Loading Capacity (Ton)3.5Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity6 pcs with one spare tireSpecifications7.00-16TransmissionManual type,5 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandChaochaiFuel typeDieselPower(kw)85  kwHorsepower(HP)116Cylinder number4Emission standardEuro 2UpperWater tankCapacity(cbm/tons)5/5Tank Dimension(mm)3400*1600*1100Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

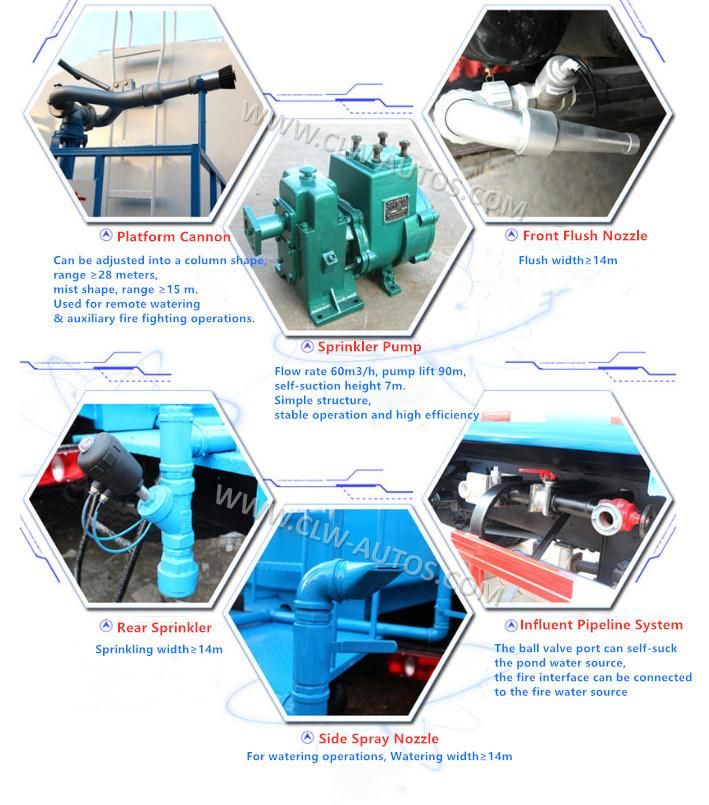

Parts Photos

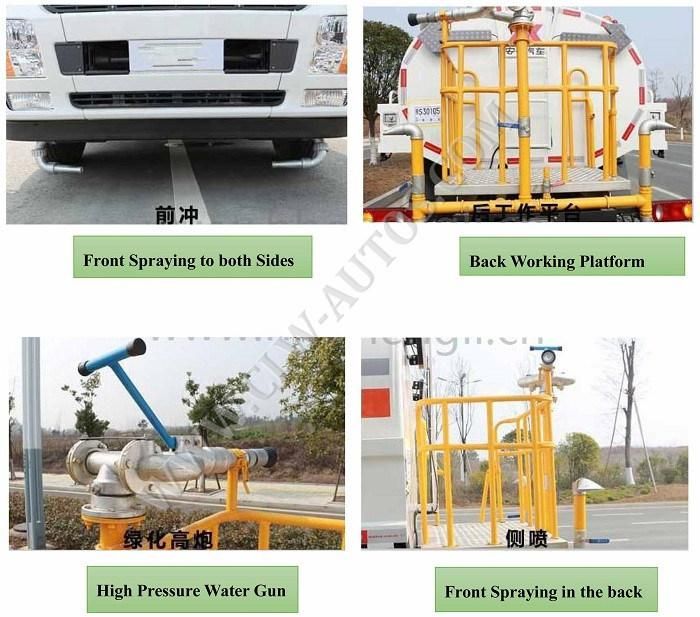

Working Show






Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting







Contact Alice for more details
