• Model NO.：CLW5387CU
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：＞8L
• Condition：New
• Loading Capacity：5000 Liters,5ton, 5bm
• Material：Carbon Steel
• Tank Thickness：4mm,5mm,6mm
• Wheel Base：3360 mm
• Horsepower：116 HP
• Water Pump：China Famous Brand
• Water Pump Flow：20 Cbm,H
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• Cannon Range：360 Degree, 30 Meter
• Tire：7.00-16
• Operating Video：Yes
• User Manual：Yes
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：5Ton, 5tons, 5000liters, 5000L, 5CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x2ChassisBrandDongfengCurb weight(kg)3380  kgLoading weight(kg)3850 kgGross weight(kg)7360  kgWheelbase(mm)3950 mmDimensions(mm)6000*1900*2300 mmFront Loading Capacity (Ton)1.8 Rear Loading Capacity (Ton)3.5Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity6 pcs with one spare tireSpecifications7.00-16TransmissionManual type,5 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandChaochaiFuel typeDieselPower(kw)85  kwHorsepower(HP)116Cylinder number4Emission standardEuro 2UpperWater tankCapacity(cbm/tons)5/5Tank Dimension(mm)3400*1600*1100Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

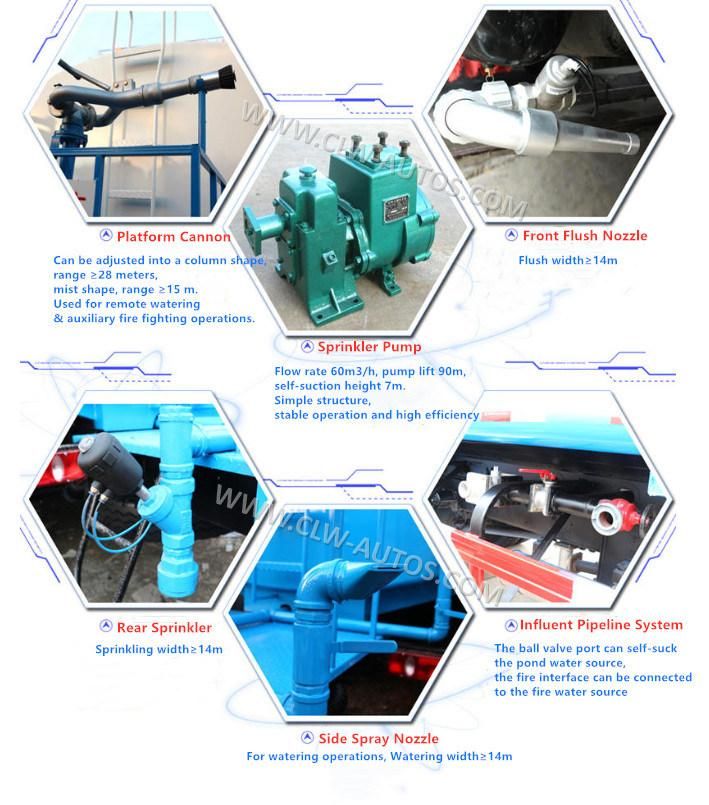

Parts Photos

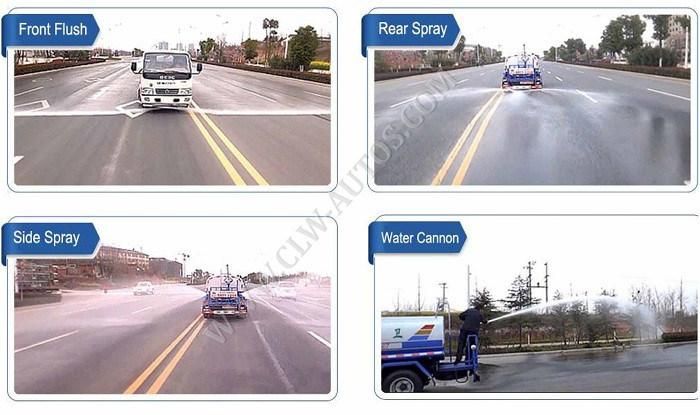

Working Show






Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting







Contact info:
