• Model NO.：CLW5638uc
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：Isuzu
• Dust Bin Capacity：3cbm,4cbm, 5m3, 6m3, 7m3
• Water Tank：2m3, 3m3, 4m3,5cbm
• Material：Stainless Steel
• Auxiliary Engine：Cummins 140 HP
• Monitor Inside Cabin：Yes
• Fan：Maintenance Free
• Rear Warning Light：Yes
• Vacuum Suction：Behind The Tire
• Brushes：4 Units
• Operating Manual：Yes
• Operating Video：Yes
• Usage：City Sanitation
• Logo：as Per Customer′s Request
• Warranty：1 Year
• Transport Package：Roll-Roll, Bulk Shipment
• Specification：water 4cbm, dust 5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Chassis SpecificationItem No.Parameters Overall Dimension7600 x 2300 x 2700 mmCurb Weight9750 kgLoading Weight6055 KgWheel Base4175 mmFront/rear Tread1430 / 1960 mmApproach/Departure Angle20 / 12 degreeCabinISUZU 700P, Left Hand Driving, with Air Conditioner,EngineISUZU 4KH1-TCG40 Diesel Engine, 190HP, 5.193Liter, 4 Cylinder in Line, Turbo Charge,Gear BoxISUZU MLD Manual, 6 Forward Gear & 1 Reverse Gear,BrakeOil Brake with Vacuum PumpSteering GearHydraulic Power SteeringTire825-20, 6 Piece with 1 SpareFuel Tank100 LitersSweeping SystemDust Bin5 m3Water Bin4 m3Material of Both BinStainless SteelEngineCummin B140, 140HPBrush Quantity4 PiecesBrush Diameter900mmWork Width3.0-3.5 metersWorking Speed3-15 km/hDust Bin Tipping SystemHydraulic TippingDust Bin Tipping AngleMore than 40 degreeDust Cleaning Percentage90-95%Maximum Capacity16,000 - 64,000 m2/hSucking Object Diameterless than 50mm (coal)Max Truck Speed90 km/hFunction Specification:
1. All Controlling System are Inside the Cabin Easy for Handling.
2. All Stainless Steel Dust Bin & Water Bin.
3. Separated Engine Support Hydraulic Pump & Suction Machine.
4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously.
5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle.
6. Major Hydraulic Parts are Imported Good Quality parts.
7. Water Spraying System to Control Dust on Road.
Working Photos

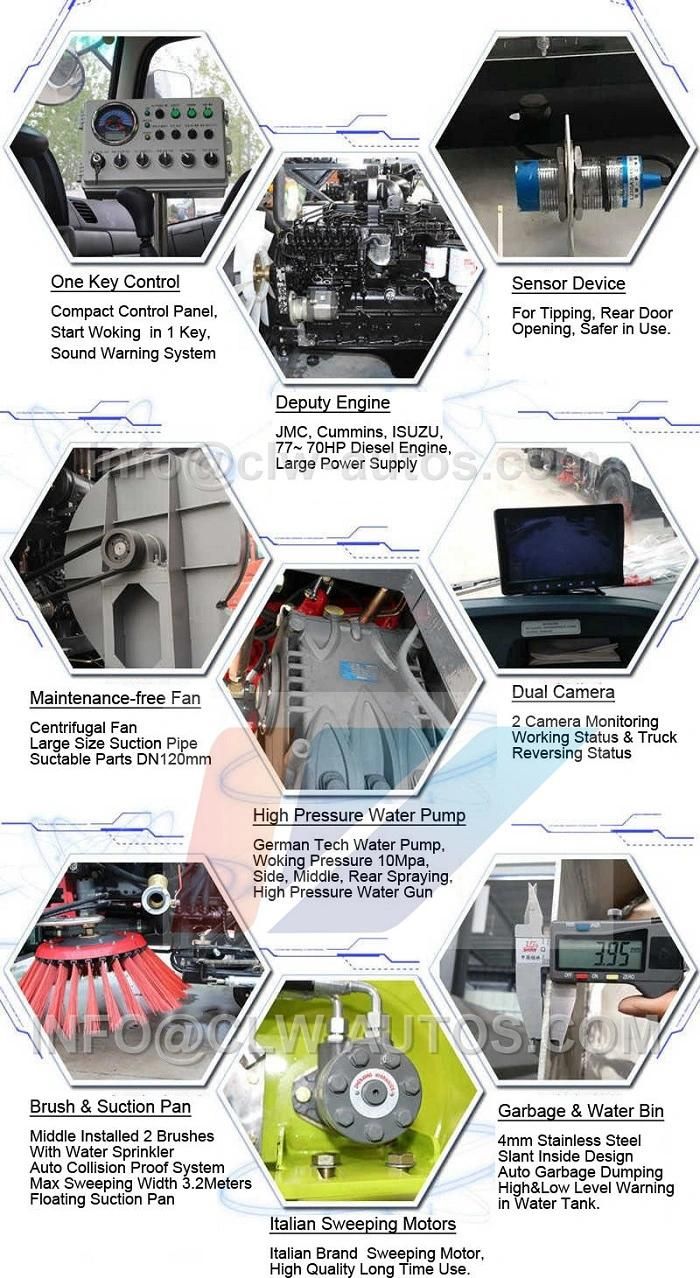

Truck Details




Optional Part for Choice

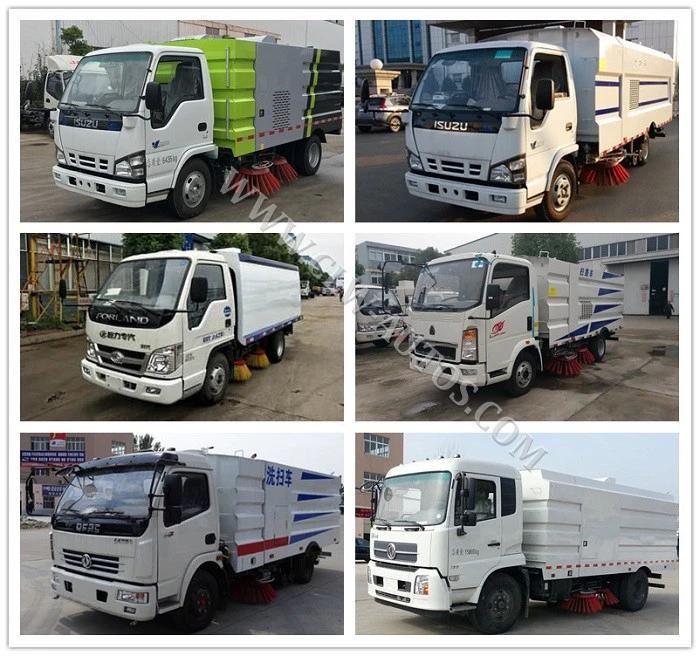

Related Product








Other Special Truck Series




Company Introduction



Overseas Exhibition and Local Support



Customer  Visiting



Cargo Shipping Methods
