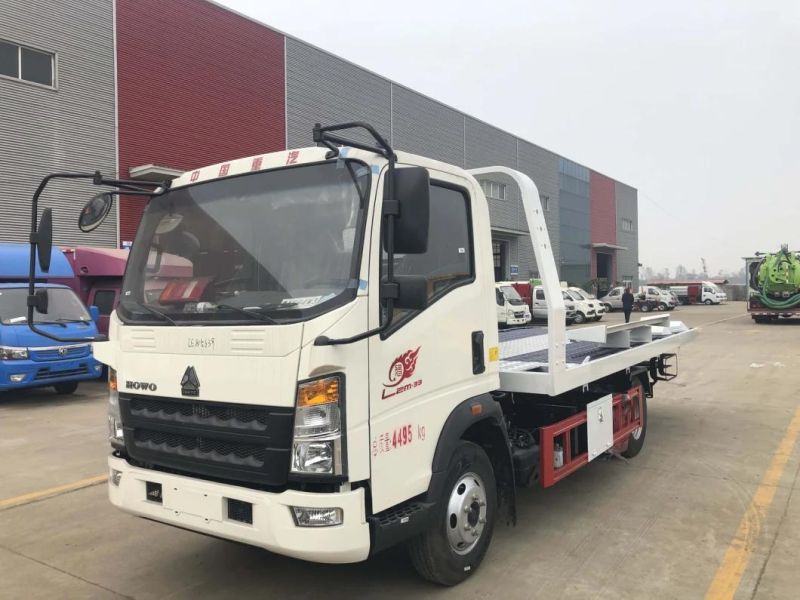

Sinotruk HOWO 4tons Flatbed Tow Truck 4ton 3-7t One-Towing-Two Platform Wrecker Heavy Duty Truck

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Emission Standard：Euro 2
  • Transmission Type：Manual
  • Towing Tonnage：4t
  • Fuel：Diesel
  • Bearing Capacity：Light

Base Info

  • Model NO.：CLW5076BGJ
  • Brand：SINOTRUK
  • Condition：New
  • Overall Weight：8275kg
  • Engine：143HP
  • Wrecker Type：One-Towing-One, One-Towing-Two
  • Max Lifting Weight：3tons; 4tons; 5tons
  • Hydraulic System：Famous International Brand
  • Chassis Brand：Dongfeng, Isuzu, HOWO, Foton, JAC, etc.
  • Steering：LHD, Rhd, Left Hand Drive, Right Hand Drive
  • Truck Overall Size：5995*2300*2350mm
  • Winch Rope：25m, 25meters
  • Warranty：1 Year
  • Wheel Base：3280mm
  • Cabin：2~3 Personn with A,C
  • Transport Package：Bulk, RO-RO, Container
  • Specification：3T, 3ton, 3tons, 4t, 4tons, 4ton, 7tons
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500unit Per Month

Description

General Technical SpecificationOverall Dimension5995x2300x2350(mm)Gross Vehicle Weight4495 (Kg)Curb Weight3790(Kg)Chassis SpecificationChassis BrandSinotruk HowoDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower105KW/143HPEmission standardEURO2 or 3Displacement3856(ml)Fuel typeDieselGearbox6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3280(mm)Front/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/12(°)Tire7.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension4200*2320(mm)Rear manual flip board length1200(mm)MaterialQ235 carbon steelMax Loading capacity4000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.
