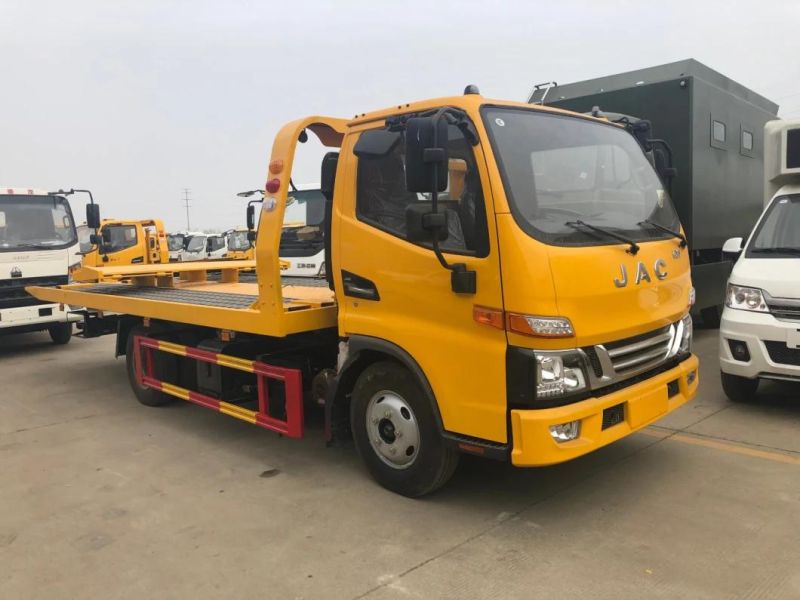

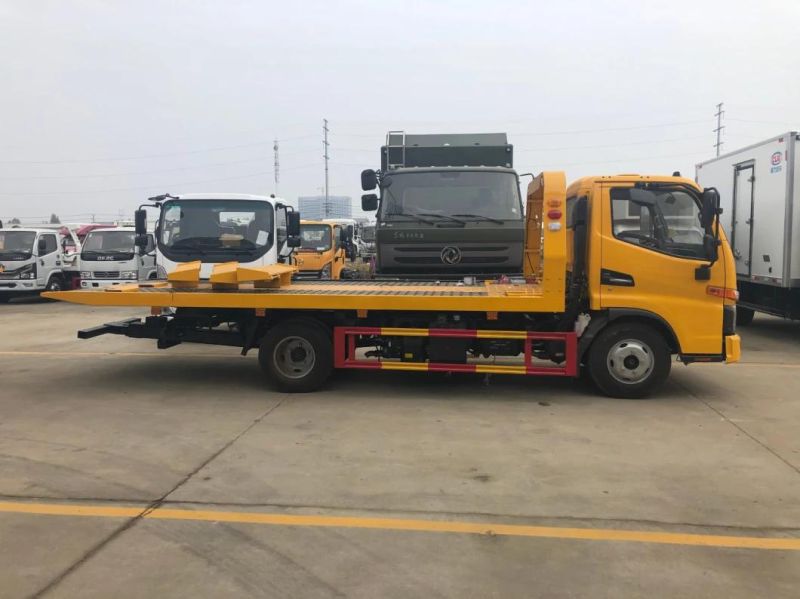

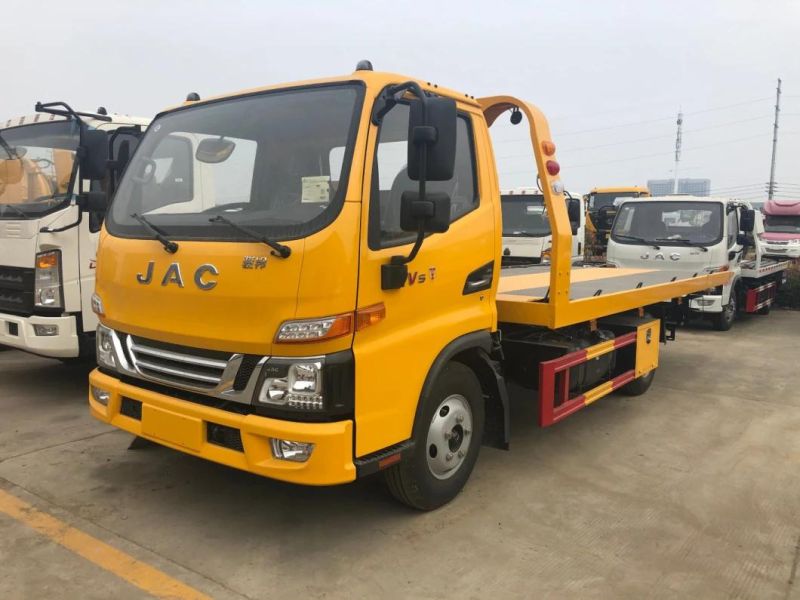

• Model NO.：CLW5070TQZQ5
• Brand：JAC
• Condition：New
• Type：Flatbed Type
• Control Type：Hydraulic Handle Control
• Flatbed Length：5500mm
• Flatbed Height：1070mm
• Max Lifting Weight：1430kg
• Max Towing Arm Length：1640mm
• Flatbed Loading Weight：3000kg
• Purpose：Broken Vehicle Rescue
• Landing Ways：Fulllanded or Half Landed
• Control Position：Both Side of Truck Back
• Flatbed Width：2200mm
• Tilting Angle：0 , 8
• Max Towing Weight：6000kg
• Towing Arm Length：1640mm
• Warranty：1 Year
• Transport Package：Bulk, RO-RO, Container
• Specification：3Ton ~ 5Ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500unit Per Month

General Technical SpecificationOverall Dimension7500x2300x2460(mm)Gross Vehicle Weight7300 (Kg)Curb Weight3800 (Kg)Chassis SpecificationChassis BrandJACDrive model4*2CabinSingle, Left Hand DriveEngineModel4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-coolingPower72KW/98HPEmission standardEURO 2Displacement2771(ml)Fuel typeDieselGearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistanceBrake SystemPneumatic(Air break/exhaust brake)Wheel Base3815(mm)Front/Rear Axle Loading2500/4800(Kg)Approach/Departure Angle24/12(°)Tire7.00R16, 6pcs + 1 spare tireMax Driving Speed98(km/h)Superstructure SpecificationPlatform OrganDimension5500*2300(mm)Rear manual flip board length800(mm)MaterialQ235 carbon steelMax Loading capacity4000(kg)WinchQuantity1Winch rating towing capacity4000(kg)Length of steel rope25(m)Speed of winch3.23~8 (m/min)Hoisting OrganRating Under-Pulling Capacity5000(kg)Rating Under-Hoisting Capacity2000(kg)Other partsAuxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.OptionsCaution light, air condition,inlet valve.















Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck

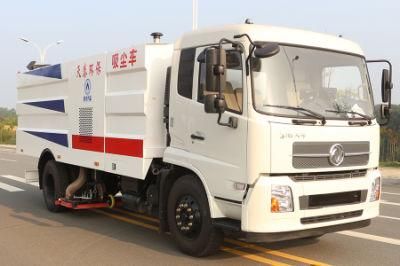

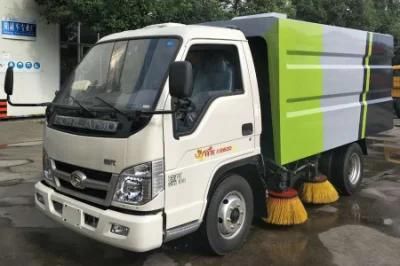

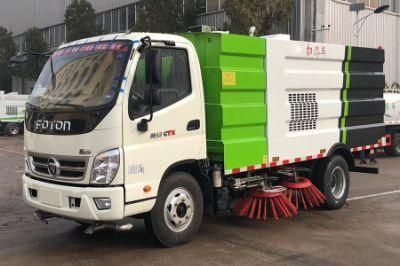

14. Sweeper Truck
