• Model NO.：APC
• Armor：Protection Small Arms Firing 7.62m or 7.62mm Ap Wi
• Weight：6500kg
• Speed：110km,H
• Range：600km
• Crew：2+8 or 2+9
• Engine：Cummins Isde200-30
• Rated Power：200 HP
• Rated Speed：2700 Rpm
• Transport Package：Nude Packing
• Specification：5360*2320*2300mm
• Trademark：CN
• Origin：China
• Production Capacity：15units,Month

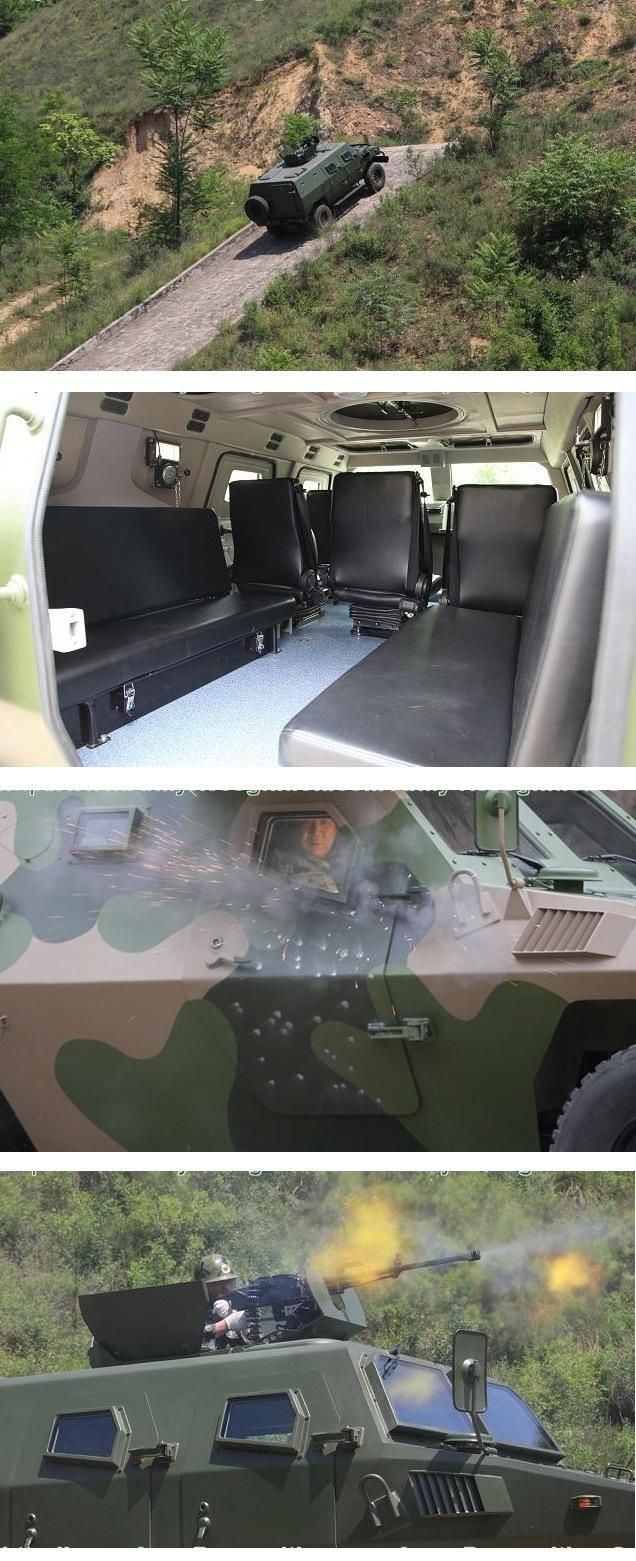

ArmamentA small open top circular turret is mounted on the front of the crew compartment. The gunner position is fitted with a two-pieces hatch which opens on each side and provides a protection when the onboard armament is used. The turret can be armed with a 7.62mm, 12.7mm machine gun or 30mm automatic grenade launcher. The front side of the turret is also protected by one armour plate.Design and protectionThe layout of the Shaanxi Baoji Special Vehicles 4x4 Tiger is conventional with the engine at the front, the crew cabin in the middle and infantrymen compartment at the rear. To the rear of the commander and driver positions are the seats, with three individual seats and one bench seat that run along either side of the hull. The front of the crew cabin is fitted with two large bulletproof windows. The commander and the driver have a single-piece cover that opens to the rear. There are two single doors on each side of the hull, with one small bullet-proof window. A large door is provided in the rear of the hull which opens to the right. Over the top of the troop compartment are two roof hatches that open outwards. In either side of the rear troop compartment are two bulletproof windows with a firing port below, which allow some of the troops to fire their weapons from within the vehicle. The all-welded steel armour of the Tiger 4x4 provides a protection on the front against 7.62mm piercing bullets of Type 53 assault rifle and 7.62 mm bullet on side at 100m.PropulsionThe Shaanxi Baoji Special Vehicles 4x4 Tiger is motorized with a Cummins ISDE200-30 Diesel engine developing 200 hp. at 2,700 RPM. The Tiger can run at a maximum road speed of 110 km/h with a maximum operational range of 600 km. The vehicle can climb 60% slope fully-loaded and cross a water depth of 800 mm without preparation and 1.2 m with preparation.AccessoriesA self-recovery winch is fitted at the front of the vehicle and one spare wheel is mounted at the rear of the infantrymen compartment. In option, the Shaanxi Baoji Special Vehicles 4x4 Tiger can be equipped with data transmission systems, searchlights, camera, night vision equipment, and various types of communications equipment.ArmamentOne 7.62mm - 12.7mm machine gun or 30mm automatic grenade launcherCountry usersReady for productionDesigner CountryChinaAccessoriesSelf-recovery winch, spare wheel. In option: data transmission systems, searchlights, camera, night vsion equipment, and various types of communications equipment.Crew2 + 8 soldiers or 2 + 9 soldiersArmorProtection small arms firing 7.62m piercing bullets and shell splinters.Combat Weight6,500 kgSpeed110 km/h maximum road speedRange600 km DimensionsLength, 5.36 m; Width, 2.32 m; Height, 2.30 m
Performance
