• Model NO.：CLW50746
• Drive Wheel：4x2
• Hoesrpower：102 HP
• Condition：New
• Material：Carbon Steel
• Hand Driving：LHD or Rhd
• Sewage Capacity：4000 Liters, 4cbm
• Sewage Pump：Vacuum Pump
• Brand：Chinese Famous Brand or Italy Pump
• Pressure Gauge：Yes
• Glass Window：Yes
• Water Gas Separator：Yes
• Oil and Gas Separator：Yes
• Vacuum Anti-Overflow Valve：Yes
• Discharge Valve：Yes
• Hand Washing Device：Optional
• Operating Video：Yes
• Logo：as Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：6200x2030x2200 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

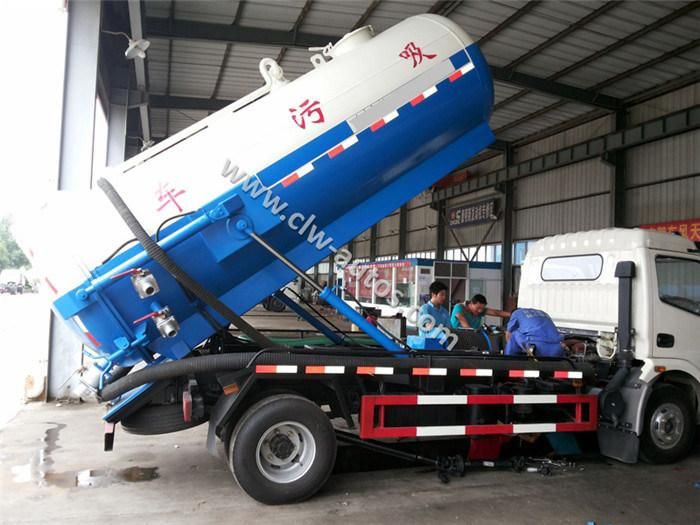

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)7360Curb Weight (kg)3590Curb Weight (kg)3640Overall Dimensions L*W*H(mm)6200*2030*2200 Engine BrandQuanchaiFuel TypeDieselPower102HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)3707Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)2500/3500Tire No.6Tire Specification7.00-16/ 7.50R16Wheelbase (mm)3308Axle No.2Gear Box5 speed forward with 1 reverse, manualSteering WheelLeft / Right hand drive with power-assistedBrakeOil brakeRadiatorSuitable for tropical climateSucking SystemSewage tank Volume(L)4000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterSuction hose length8 metersTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

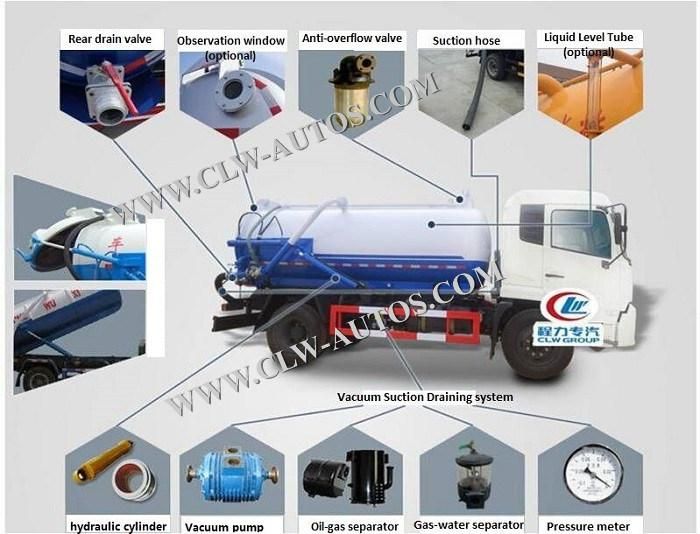

Product Diagram

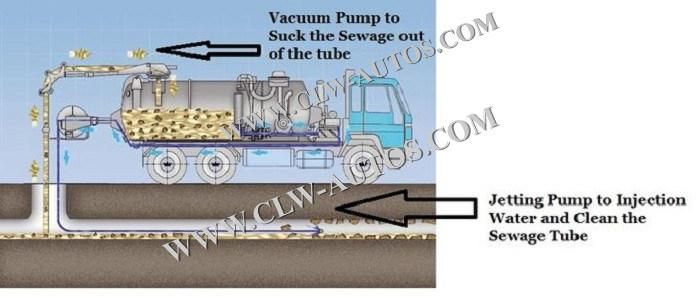

Working Diagram

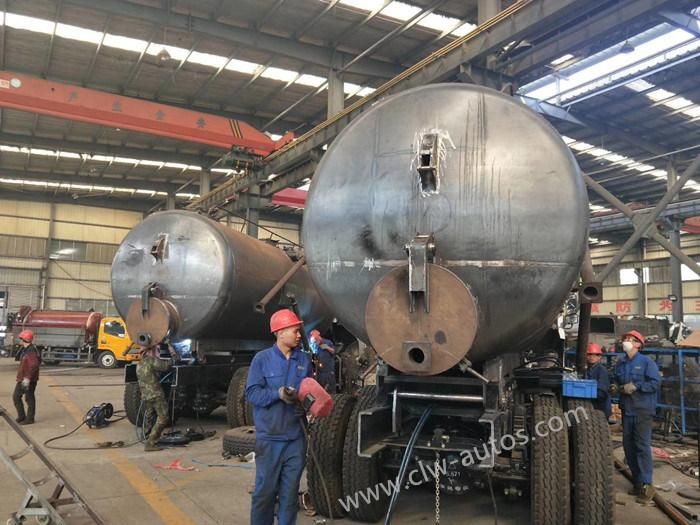

Production Workshop

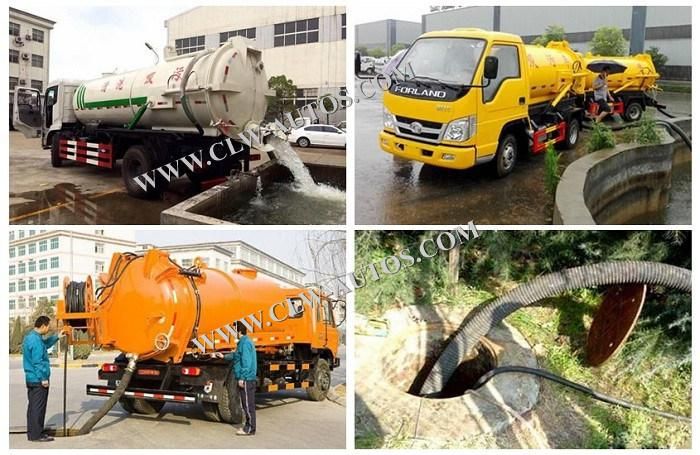

Working Photos





Other Special Truck Series




Company Introduction





Overseas Exhibition and Local Support



Customer Visiting
