• Model NO.：CLW50775
• Fuel：Diesel
• Drive Wheel：8X4
• Engine Capacity：4 - 6L
• Condition：New
• Chassis Brand：Dongfeng,Foton,HOWO,Shacman,Isuzu
• Material：Carbon Steel
• Tank Thickness：5 mm
• Wheel Base：2100+4500+1350 mm
• Engine：Cummins
• Horsepower：280 HP
• Tire：10.00r25
• Loading Capacity：23000 Liters
• Cannon Range：30m
• Water Pump：China Famous Brand
• Water Pump Flow：20 Cbm,H
• Water Sprinkle Width：15m
• User Manual：Yes
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12000x2500x3400mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/8x4ChassisBrandDongfengCurb weight(kg)12305  kgLoading weight(kg)18565 kgGross weight(kg) 31000 kgWheelbase(mm)2100+4500+1350 mmDimensions(mm)12000*2500*3400 mmFront Loading Capacity (Ton)5Rear Loading Capacity (Ton)10Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity12 pcs with one spare tireSpecifications10.00-20TransmissionManual type,9 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandCumminsFuel typeDieselPower(kw)205 kwHorsepower(HP)280HPCylinder number6Emission standardEuro 2UpperWater tankCapacity(cbm/tons)23 /23Tank Dimension(mm)8500*2300*16500Tank materialQ235 carbon steelThickness(mm) 5Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

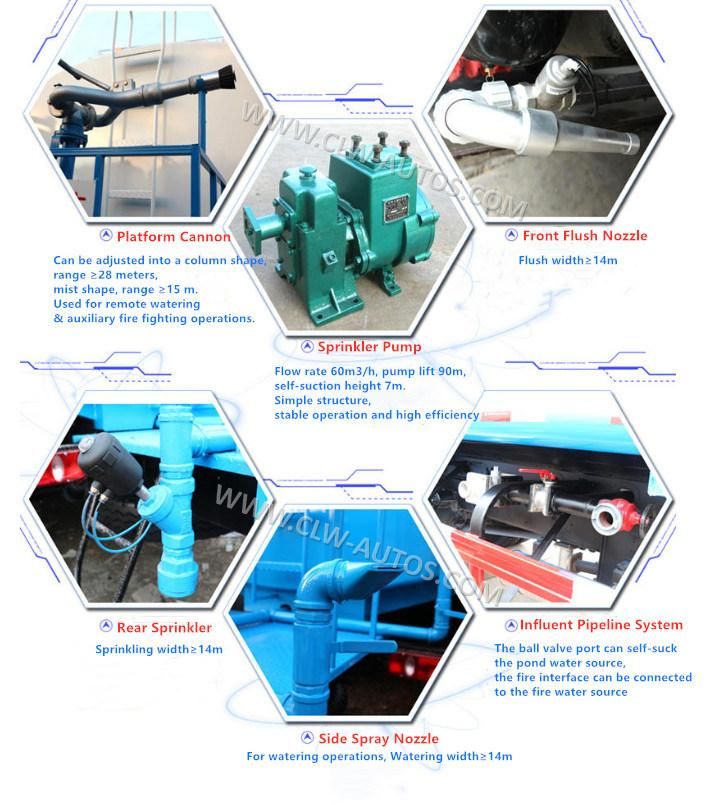

Parts Photos

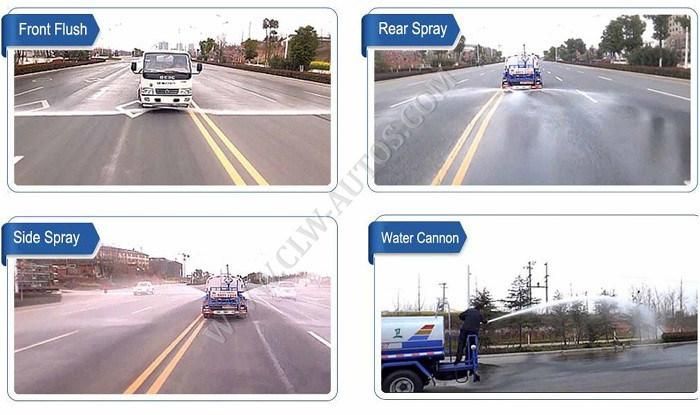

Working Show

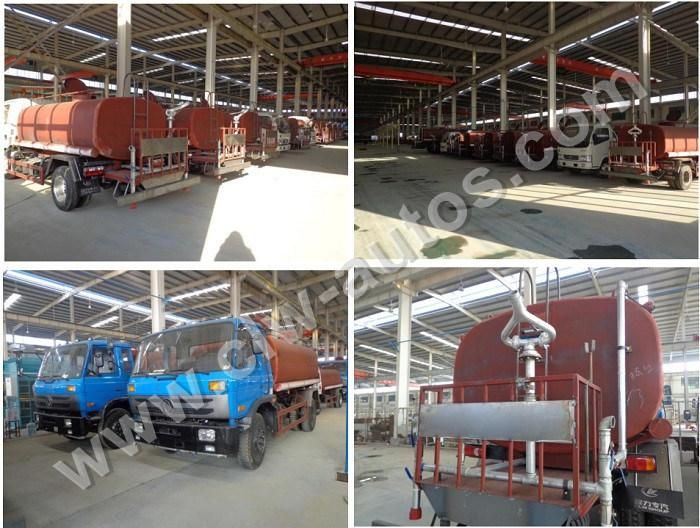

Water Tank Truck Production

Factory Overview




Overseas Exhibition and Local Support



Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
