• Model NO.：CLW50774
• Fuel：Diesel
• Drive Wheel：4×2
• Engine Capacity：4 - 6L
• Condition：New
• Loading Capacity：14000 Liters,14ton,14cbm
• Material：Carbon Steel
• Tank Thickness：4mm,5mm,6mm
• Wheel Base：4500 mm
• Engine：Diesel, Cummins
• Horsepower：190 HP
• Tire：10.00r20
• Water Pump：China Famous Brand
• Water Pump Flow：20 Cbm,H
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• User Manual：Yes
• Operating Video：Yes
• Warranty：One Year
• Logo：as Per Customer′s Request
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：7900x2500x3000mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/4x4ChassisBrandDongfengCurb weight(kg)7205  kgLoading weight(kg)10600 kgGross weight(kg)18000  kgWheelbase(mm)4500 mmDimensions(mm)7900*2500*3000 mmFront Loading Capacity (Ton)4.5Rear Loading Capacity (Ton)10Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity8 pcs with one spare tireSpecifications10.00R20TransmissionManual type,6 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandCumminsFuel typeDieselPower(kw)140 kwHorsepower(HP)190Cylinder number4Emission standardEuro II,IIIUpperWater tankCapacity(cbm/tons)14/14Tank Dimension(mm)4400*2500*1600Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

Water Tank Truck Diagram

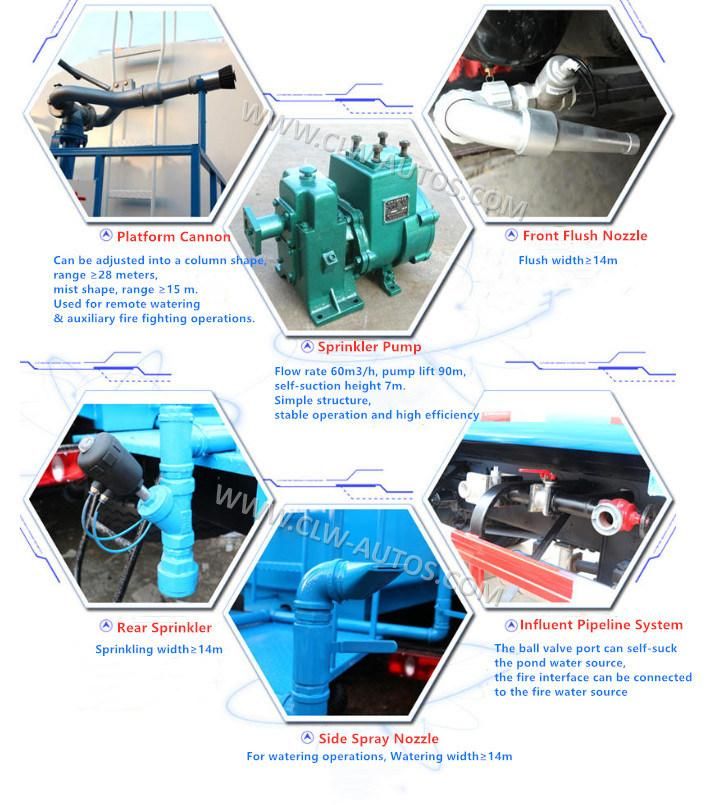

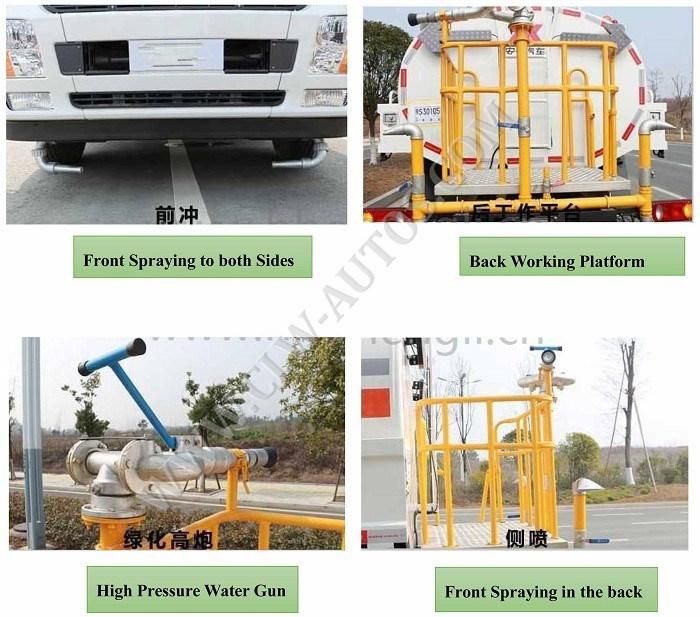

Parts Photos








Working Show

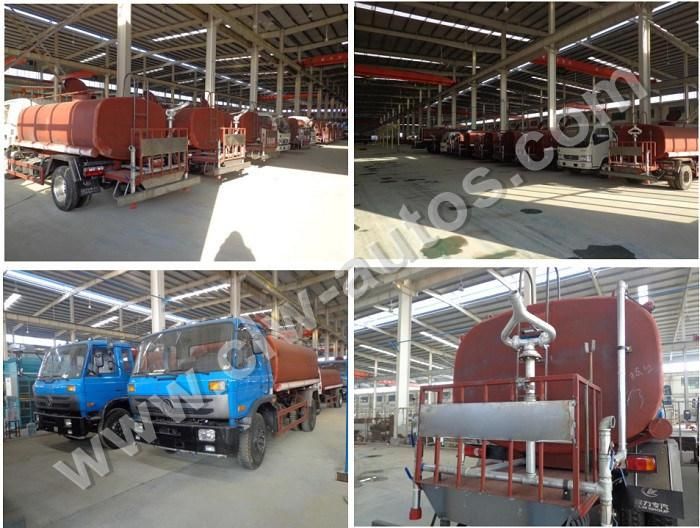

Water Tank Truck Production



Factory Overview




Overseas Exhibition and Local Support




Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
