• Model NO.：CLW50771
• Fuel：Diesel
• Drive Wheel：8X4
• Engine Capacity：4 - 6L
• Condition：New
• Loading Capacity：25000 Liters,25 Ton, 25cbm,25m³
• Material：Carbon Steel
• Tank Thickness：4mm,5mm,6mm
• Wheel Base：1850+4600+1350 mm
• Engine：Cummins
• Horsepower：315 HP
• Tire：11.00r20
• Water Pump：China Famous Brand
• Water Pump Flow：20cbm,Hour
• Sprinking Width：14 Meters
• Suction Height：7 Meters
• Cannon Range：30m
• Logo：as Per Customer′s Request
• Warranty：One Year
• User Manual：Yes
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12000x2500x3300mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

ConditionNew condition/Left hand drive/8X4ChassisBrandDongfengCurb weight(kg)11755 kgLoading weight(kg)19050 kgGross weight(kg)31000  kgWheelbase(mm)1850+4600+1350 mmDimensions(mm)12000*2500*3300 mmFront Loading Capacity (Ton)5Rear Loading Capacity (Ton)10Max. driving speed(km/h)90 km/hClutchReinforced diaphragm clutchBrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brakeSteering GearPower steering, hydraulic steering with power assistanceTireQuantity12 pcs with one spare tireSpecifications11.00R20TransmissionManual type,11 Forwards and 1 reverseCabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.EngineBrandChaochaiFuel typeDieselPower(kw)230 kwHorsepower(HP)315Cylinder number6Emission standardEuro 2UpperWater tankCapacity(cbm/tons)25/25Tank Dimension(mm)8600*2300*1500Tank materialQ235 carbon steelThickness(mm) 4Water pumpChina local brandSuction Height7MFunction1, Front Side Rear Sprinkling width≥14m2, Water cannon range≥28mRemarks1. AM/FM radio2. 2pcs water hose.3. Color is optional

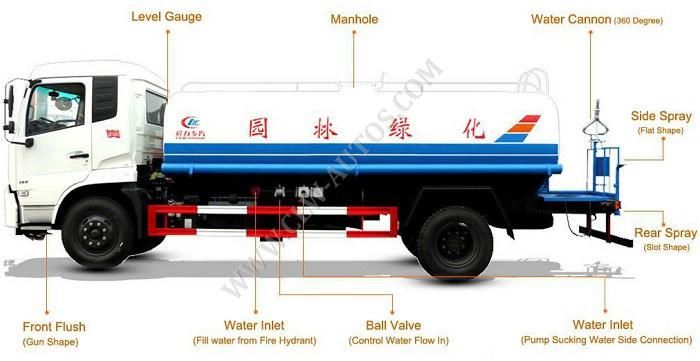

Water Tank Truck Diagram

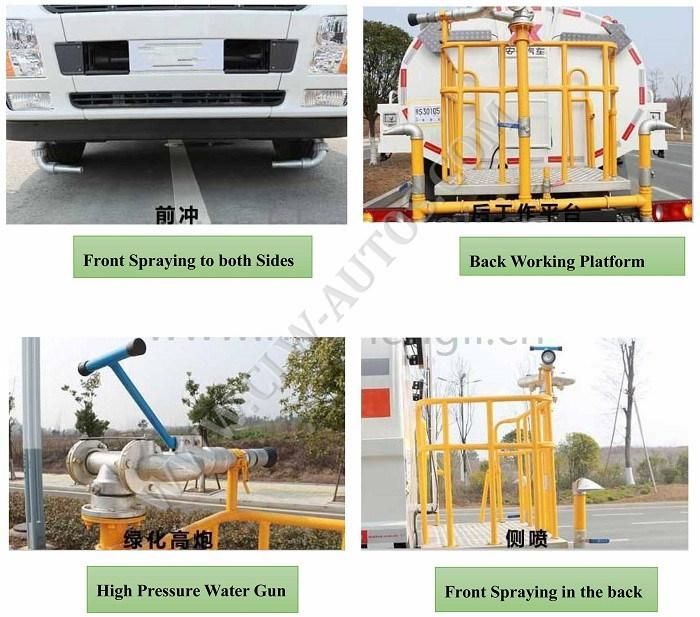

Parts Photos

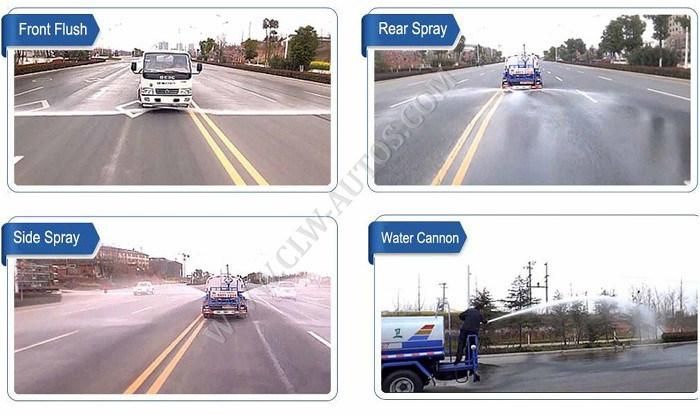

Working Show

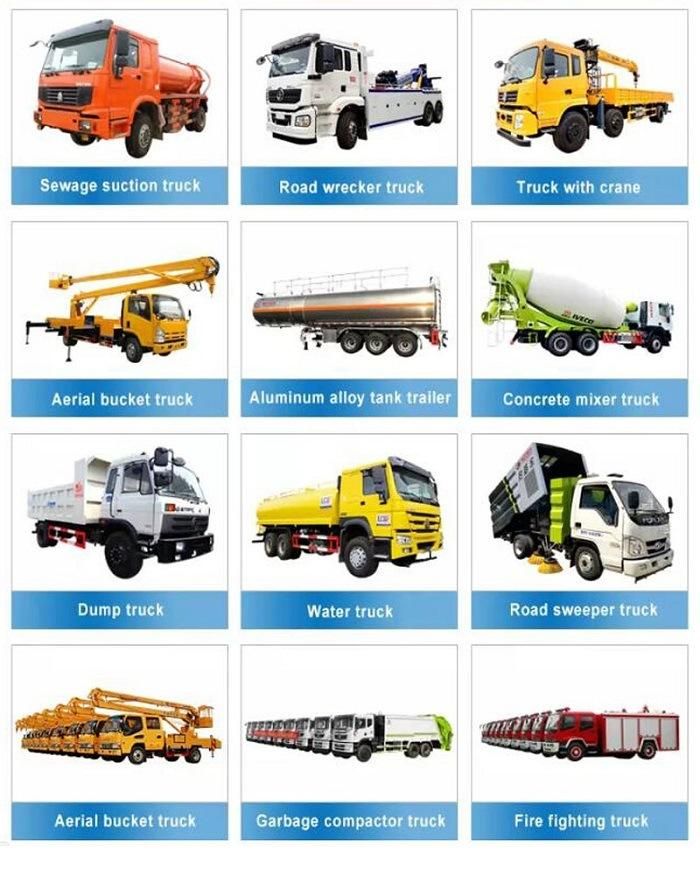

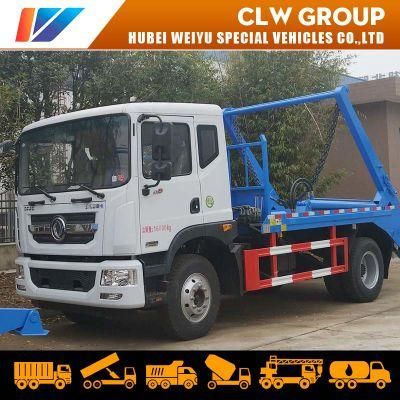

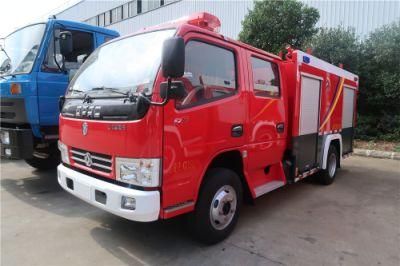

Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support




Customer  Visiting



Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
