• Model NO.：CLW50701
• Use：Stainless Steel
• Cleaning Process：Cold Water Cleaning
• Condition：New
• Truck Chassis Brand：FAW,Dongfeng,HOWO,Shacman,Foton,Isuzu
• Hand Driving：LHD or Rhd
• Dust Bin Capacity：4cbm, 6cbm, 7m3, 8m3, 12m3
• Water Tank：1m3, 1.5m3, 2m3, 4cbm
• Drive Model：4X2
• Material：Carbon Steel
• Campacting Ratio：0.6-0.8 Ton,Cbm
• Compacting System.：Electrical Control Panel
• Sweeping Width：3.5 Meters
• Operating System：One in The Cabin,One on The Back of The Truck
• Production Time：30 Days
• User Manual：Yes
• Operating Video：Yes
• Logo：as Per Customer′s Request
• Warranty：One Year
• Transport Package：Naked Packing
• Specification：5cbm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：300 Units Per Month

Cabin

Driving type 4x2 LHD

single row,with A/C ,with two seats,audio with USB,

Vehicle Main DimensionsOverall dimensions (L x W x H)mm7180×2260×2780Wheel base (mm)3815Wheel track (front/rear) (mm)1504/1425Approach/Departure angle(°)24/13Weight in KGSTare Weight6500payload670Front axles loading capacity1x5280Rear axles loading capacity1x4720Max. driving speed(km/h)90EngineBrandCumminsHorse Power(HP)120Emission standardEuro IIIGearbox6 forwards & 1 reverseSteeringleft hand driveTire8.25-16,6 tires with one spareMax. Cleaning Width3MSweeper Speed3~20 km/hMax. Cleaning Capacity60000 m2/hMax. Suction grain size≥110mmDumping angle≥45°Hopper5000liters,double layer,Stainless steel insideWater tank4000LitersAuxiliary EngineModel&ManufacturerJIANGLING JX493ZQTypeFour-injection,water-cooling,turbo-charged,diesel enginePower77hp/3600r/minMax. Rotation Speed2400r/minOil type0# Diesel,share the same fuel box with chassisAeratorTypeHigh pressure centrifugal AeratorCurb rotation speed2600-2900r/minDriving modelDriven by auxiliary engine and transferred by transmission parts,clutch and beltsWater sprinklingMain partsWater pump,water filter,sprinkler,water boxElectrical systemCon-structureTwo batteries(in series)Voltage24VBattery model12-80A.HSweeping SystemType

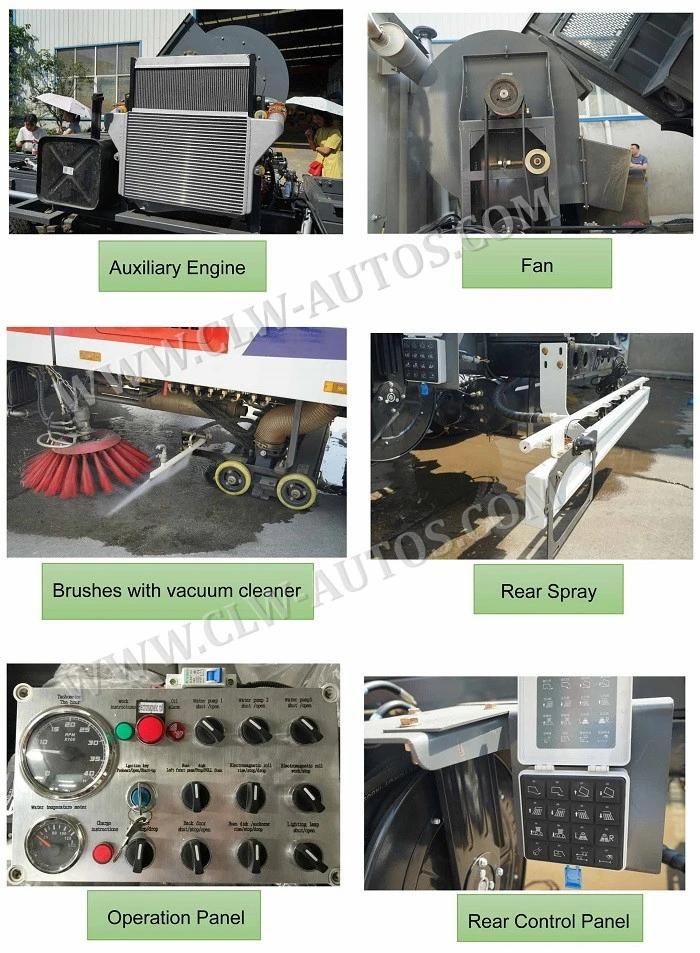

Fours brushes installed between front and rear axle,driven by gerotor motor.

Left and right brushes are controlled to lift up and down separately.

Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter900mmSweeper rotation speed80r/minSweeper angle adjustmentForerake 4°-6°and extroversion 2°-4°Suction NozzleTypeU-shapedNozzle diameter200mmNozzle ground clearance when operation5-10mm

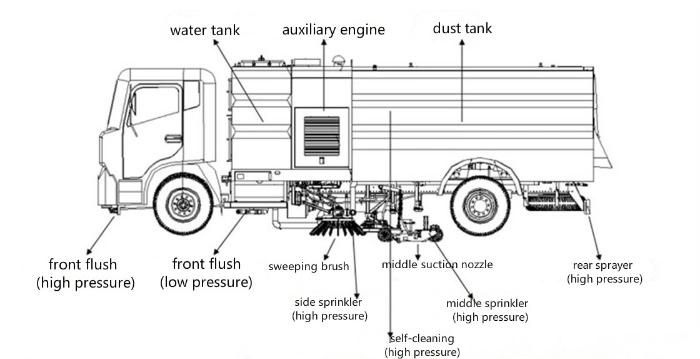

Product Diagram

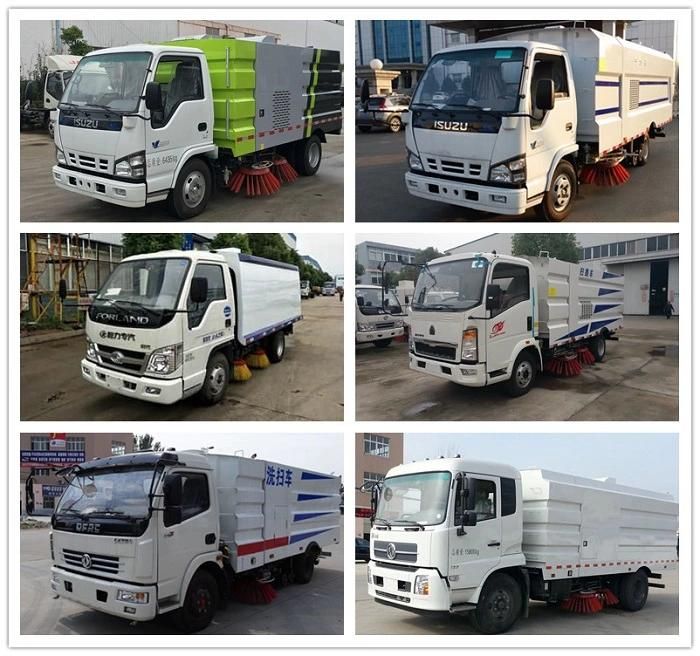

Related Product




Company Introduction





Overseas Exhibition and Local Support




Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
