Industrial Vacuum Truck

Shanghai CIMC J.T Vehicle Manufacturer Co., Ltd.

Fuel：Diesel
Certification：ISO9000, CCC, TS16949
Emission Standard：Euro 4
Condition：New
Tank：18 Cbm
Transport Package：Nude

Base Info

Model NO.：CIMC5312GXP
Specification：EMARK, GCC, VCA
Trademark：CIMC
Origin：China
HS Code：8704230000
Production Capacity：200 Units Per Year

Description

COMBINED VACUUM TANKERChassis Brand:SINOTRUK HOWO Model:ZZ3317M3867D1Drive8X4 RHDWheelbae1800+3800+1350 MMEngine:D10.31-40,310HP,Euro IV Emission,9.726LGearboxHW15710,10 forward & 2 reverse,FULLER technoogyFront AxleHF9, 9000KG loading capacity,disc brakeDriving AxleAC16, central single reduction,16000KG/UNITTire:12.00R20,Radial tireCabinHW70 Standard cab,2 seats without bed,air conditiner,air suspension driver seatGross Vehicle Weight:31000 KGPART NAMESpecificationTechnical ParameterTANKTank volume18 M3

Dimension(DXL in MM)2100X5410MaterialHigh strength steelThickness(MM)6Design pressure-0.9Inlet valve6 inchLifting degree≥500Vacuum systemVacuum pressure bar-0.5Max air flow(m3/h)5709Max particle in MM15Suction distance(M)≥50Discharging systemWorking pressure bar2Max discharging volume (m3/h)500Discharging capacity(t/h)30-70Discharging height(M)15-30Discharging valve4 inchResidual rate(%)≤2
More Series Photos:

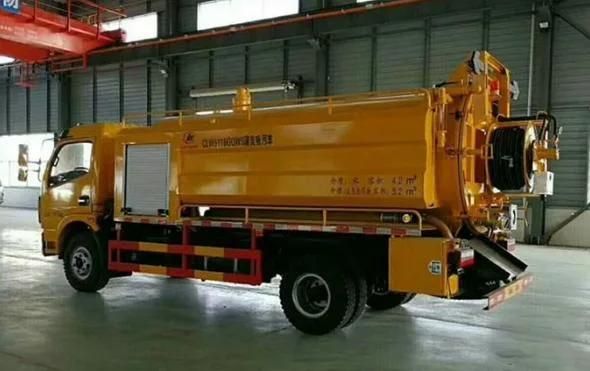

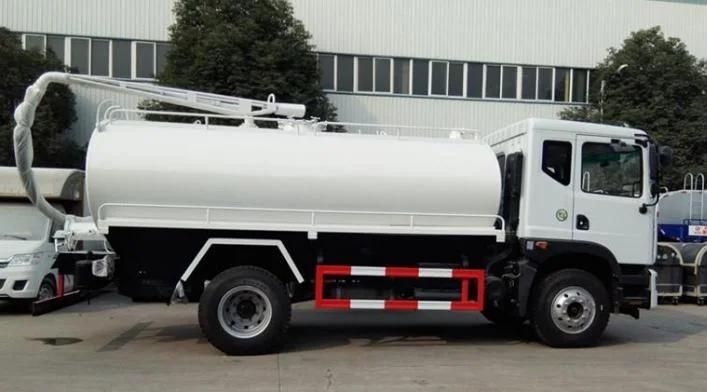

Industrial Vacuum Truck

Industrial Vacuum Truck

Industrial Vacuum Truck
