• Model NO.：CHM5250KPQ70M
• Drive Mode：6x4
• Maximum Horsepower：>400hp
• Condition：New
• Engine：Hyundai Powertec 360,410,440 PS
• Mixer Tank Volume：7 -12 Cbm
• Transport Package：Nude
• Specification：EMARK, GCC, VCA
• Trademark：HYUNDAI
• Origin：China
• HS Code：8705400000
• Production Capacity：20000 Unit Year

Basic Info.

Model NO. CHM5250KPQ70M Drive Mode 6x4 Maximum Horsepower >400hp Condition New Engine Hyundai Powertec 360,410,440 PS Mixer Tank Volume 7 -12 Cbm Transport Package Nude Specification EMARK, GCC, VCA Trademark HYUNDAI Origin China HS Code 8705400000 Production Capacity 20000 Unit Year

Product Description

HYUNDAI truck produced in China since end of 2014, the engine is HYUNDAI POWERTEC made in Korea, engine horse power is from 360hp to 440hp, engine displace from Euro III to Euro IV, transmission is HYUNDAI DYMOS  made in Korea 12-16 speeds, mixer tanker from 7 M3 to 12 M3, stable quality in the world.





Emmission standard for option:
Euro 3/4/5

Driving Type: Left

Other Series of Hyundai Truck
1, LIght truck: dump truck, cargo truck, manlift truck etc.
2, Heavy duty truck: Fuel truck, dump truck, tractor truck, cargo truck, transit mixer, sweeper etc
3, Electrical truck


ngine Make: HYUNDAI POWERTEC
Diesel 4-stroke direct injection diesel engine, electronic control, SCR
Engine model: D6CF41E4, Euro IV emission standard
6-cylinder in-line with water cooled, turbo-charging and intercooler
Maximum output: 410 hp (302 Kw) at 1900 rpm
Maximum torque: 1796 Nm at 1200-1500r/min
Number of cylinder: 6 in line
Displacement: 12.742 L


Transmission HYUNDAI T230S12, with overdrive, synchronized, 12 forwards and 2 reverse, 2300N.m
Ratio: 12.29   9.57  7.49  5.83  4.57  3.55  2.69  2.10  1.64  1.28  1  0.78  10.86(R1) 8.46(R2)


Front Axle HYUNDAI, Steering with doubleT-cross section beam, 7.5 T, drum air brake
Rear Axle HYUNDAI R178HT, 16 T Pressed axle housing, single reduction and with differential locks between wheels and axles, Loading Capacity of Rear Axle (Kg.) 2×16000 kgs, Ratio:4.875

Wheels & Tyres Tire: 11 units 315/80R22.5-18PR Vacuum tire

Driver's Cab HYUNDAI high roof cab, with two seats, 2 beds, 2-arm windscreen wiper three speeds

Cargo box dimension:6000MM-7800MM in length

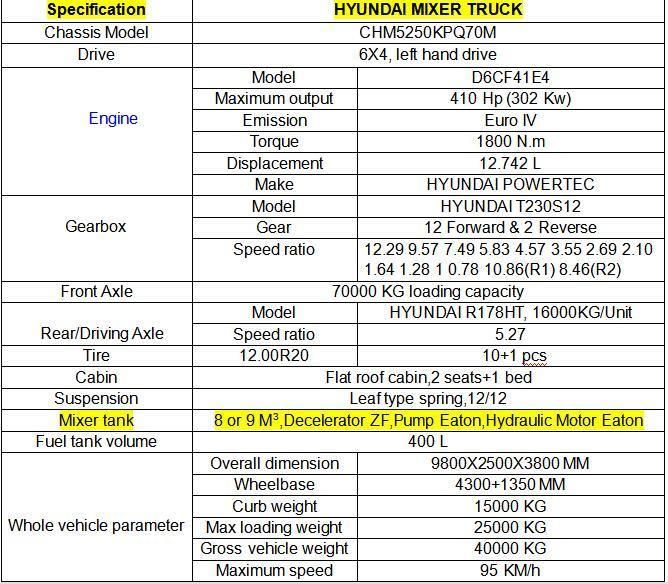

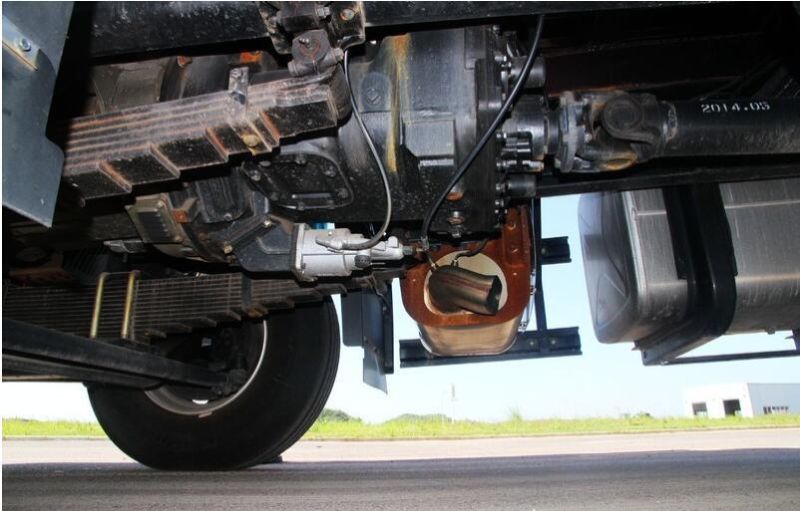

Chassis pic:
